ATE Original 2 Pieces Brake Disk (24010901371) for Citroën, Peugeot
€61.71
(tax incl.)
€51.00 tax excl.
Part-number:
ATE 24.0109-0137.1
(240109-01371)
- Outer Diameter [mm]: 247,0
- Inner Diameter [mm]: 133,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 409137
Logistical information:
- Ean Code: 4006633091954
- Weight: 6.38kg
Specification of ATE 24.0109-0137.1 / 240109-01371 / 24010901371:
| OE Number | Reference info |
| CITROËN 4246 X8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4246X8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 90 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424990 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 53 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424953 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246 W9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246W9 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 52 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424952 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 90 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424990 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) Construction Year to 200803 Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2000-10 - 2011-12 | 80 | 109 | 1587 | MPV |
| CITROËN BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) Fitting Position Rear Axle | 2009-11 - 2010-12 | 68 | 92 | 1560 | MPV |
| CITROËN BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) Construction Year to 200803 Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2005-07 - 2008-05 | 66 | 90 | 1560 | MPV |
| CITROËN BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 1999-12 - 2005-10 | 66 | 90 | 1997 | MPV |
| CITROËN C2 (JM_) Fitting Position Rear Axle | 2003-09 - 2009-12 | 54 | 73 | 1360 | Hatchback |
| CITROËN C2 (JM_) Fitting Position Rear Axle | 2006-10 - 2009-12 | 55 | 75 | 1360 | Hatchback |
| CITROËN C2 (JM_) Fitting Position Rear Axle | 2005-04 - 2009-12 | 65 | 90 | 1360 | Hatchback |
| CITROËN C2 (JM_) Construction Year to 200912 Fitting Position Rear Axle | 2003-07 - 2010-10 | 80 | 109 | 1587 | Hatchback |
| CITROËN C2 (JM_) Fitting Position Rear Axle | 2004-10 - 2009-12 | 90 | 122 | 1587 | Hatchback |
| CITROËN C2 (JM_) Fitting Position Rear Axle | 2003-07 - 2009-12 | 50 | 68 | 1398 | Hatchback |
| CITROËN C2 (JM_) Fitting Position Rear Axle | 2005-09 - 2009-12 | 80 | 109 | 1560 | Hatchback |
| CITROËN C3 I (FC_, FN_) Construction Year to 200908 Fitting Position Rear Axle | 2002-02 - 2010-08 | 80 | 109 | 1587 | Hatchback |
| CITROËN C3 I (FC_, FN_) Fitting Position Rear Axle | 2002-02 - 2008-06 | 66 | 90 | 1398 | Hatchback |
| CITROËN C3 I (FC_, FN_) Construction Year to 200908 Fitting Position Rear Axle | 2005-10 - 2009-12 | 66 | 90 | 1560 | Hatchback |
| CITROËN C3 I (FC_, FN_) Construction Year to 200908 Fitting Position Rear Axle | 2005-09 - 2009-12 | 80 | 109 | 1560 | Hatchback |
| CITROËN C3 Pluriel (HB_) Construction Year to 201007 Fitting Position Rear Axle | 2003-05 - | 80 | 109 | 1587 | Convertible |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2004-11 - 2011-07 | 65 | 88 | 1360 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2004-11 - 2011-07 | 80 | 109 | 1587 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2007-09 - 2008-07 | 80 | 109 | 1587 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2008-07 - 2011-07 | 88 | 120 | 1598 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2008-07 - 2011-07 | 103 | 140 | 1598 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2008-07 - 2011-07 | 110 | 150 | 1598 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2004-11 - 2007-07 | 100 | 136 | 1997 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2004-11 - 2011-07 | 103 | 140 | 1997 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2004-11 - 2008-07 | 130 | 177 | 1997 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2004-11 - 2011-07 | 66 | 90 | 1560 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2010-04 - 2012-11 | 80 | 109 | 1560 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2004-11 - 2011-07 | 80 | 109 | 1560 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2010-04 - 2012-11 | 84 | 114 | 1560 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2007-04 - 2008-07 | 81 | 110 | 1997 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2004-11 - 2011-07 | 100 | 136 | 1997 | Hatchback |
| CITROËN C4 I (LC_) Fitting Position Rear Axle | 2008-07 - 2011-07 | 103 | 140 | 1997 | Hatchback |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Fitting Position Rear Axle | 2004-11 - 2011-07 | 65 | 88 | 1360 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Fitting Position Rear Axle | 2004-11 - 2011-07 | 80 | 109 | 1587 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Fitting Position Rear Axle | 2008-07 - 2011-07 | 88 | 120 | 1598 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Fitting Position Rear Axle | 2008-07 - 2011-07 | 110 | 150 | 1598 | Coupe |
| CITROËN C4 Coupe (LA_) Fitting Position Rear Axle | 2004-11 - 2007-07 | 100 | 136 | 1997 | Coupe |
| CITROËN C4 Coupe (LA_) Fitting Position Rear Axle | 2006-10 - 2007-12 | 103 | 140 | 1997 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Fitting Position Rear Axle | 2004-11 - 2010-12 | 130 | 177 | 1997 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Fitting Position Rear Axle | 2004-11 - 2011-07 | 66 | 90 | 1560 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Fitting Position Rear Axle | 2004-11 - 2011-07 | 80 | 109 | 1560 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Fitting Position Rear Axle | 2004-11 - 2010-12 | 100 | 136 | 1997 | Coupe |
| CITROËN C4 Coupe (LA_) Construction Year to 201007 Fitting Position Rear Axle | 2008-07 - 2011-07 | 103 | 140 | 1997 | Coupe |
| CITROËN C4 I Saloon Fitting Position Rear Axle | 2006-07 - 2011-07 | 80 | 109 | 1587 | Saloon |
| CITROËN C4 I Saloon Fitting Position Rear Axle | 2006-07 - 2011-07 | 103 | 140 | 1997 | Saloon |
| CITROËN C4 I Saloon Fitting Position Rear Axle | 2010-04 - 2012-11 | 80 | 109 | 1560 | Saloon |
| CITROËN C4 I Saloon Fitting Position Rear Axle | 2006-07 - 2011-07 | 80 | 109 | 1560 | Saloon |
| CITROËN C4 I Saloon Fitting Position Rear Axle | 2010-04 - 2012-11 | 84 | 114 | 1560 | Saloon |
| CITROËN XSARA PICASSO (N68) Fitting Position Rear Axle | 2005-09 - 2011-12 | 80 | 109 | 1587 | MPV |
| CITROËN XSARA PICASSO (N68) Fitting Position Rear Axle | 2004-06 - 2010-12 | 80 | 109 | 1587 | MPV |
| CITROËN XSARA PICASSO (N68) Fitting Position Rear Axle | 2000-02 - 2005-08 | 85 | 115 | 1749 | MPV |
| CITROËN XSARA PICASSO (N68) Construction Year to 201003 Fitting Position Rear Axle | 2003-01 - 2012-06 | 100 | 136 | 1997 | MPV |
| CITROËN XSARA PICASSO (N68) Construction Year to 201003 Fitting Position Rear Axle | 2005-09 - 2011-12 | 66 | 90 | 1560 | MPV |
| CITROËN XSARA PICASSO (N68) Construction Year to 201003 Fitting Position Rear Axle | 2004-05 - 2011-12 | 80 | 109 | 1560 | MPV |
| CITROËN XSARA PICASSO (N68) Construction Year from 200006 Construction Year to 201003 Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 1999-12 - 2011-12 | 66 | 90 | 1997 | MPV |
| CITROËN BERLINGO / BERLINGO FIRST Box Body/MPV (M_) Fitting Position Rear Axle | 2009-11 - 2010-12 | 68 | 92 | 1560 | Box Body/MPV |
| CITROËN BERLINGO / BERLINGO FIRST Box Body/MPV (M_) Construction Year to 200803 Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 1999-12 - 2011-12 | 66 | 90 | 1997 | Box Body/MPV |
| CITROËN BERLINGO / BERLINGO FIRST Box Body/MPV (M_) Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2000-11 - 2005-10 | 66 | 90 | 1997 | Box Body/MPV |
| CITROËN C2 ENTERPRISE (JG_) Fitting Position Rear Axle | 2006-09 - 2009-12 | 50 | 68 | 1398 | Hatchback Van |
| CITROËN C2 ENTERPRISE (JG_) Fitting Position Rear Axle | 2003-11 - 2005-04 | 51 | 69 | 1398 | Hatchback Van |
| CITROËN C4 I Hatchback Van (LR_) Fitting Position Rear Axle | 2005-02 - 2010-12 | 100 | 136 | 1997 | Hatchback Van |
| PEUGEOT 307 (3A/C) Fitting Position Rear Axle | 2000-08 - 2003-09 | 55 | 75 | 1360 | Hatchback |
| PEUGEOT 307 (3A/C) Fitting Position Rear Axle | 2003-11 - 2007-07 | 65 | 88 | 1360 | Hatchback |
| PEUGEOT 307 (3A/C) Construction Year to 200707 Fitting Position Rear Axle | 2000-08 - 2007-11 | 80 | 109 | 1587 | Hatchback |
| PEUGEOT 307 (3A/C) Fitting Position Rear Axle | 2000-08 - 2005-06 | 100 | 136 | 1997 | Hatchback |
| PEUGEOT 307 (3A/C) Construction Year to 200707 Fitting Position Rear Axle | 2005-03 - 2007-11 | 103 | 140 | 1997 | Hatchback |
| PEUGEOT 307 (3A/C) Construction Year to 200707 Fitting Position Rear Axle | 2005-06 - 2007-11 | 130 | 177 | 1997 | Hatchback |
| PEUGEOT 307 (3A/C) Fitting Position Rear Axle | 2001-10 - 2005-06 | 50 | 68 | 1398 | Hatchback |
| PEUGEOT 307 (3A/C) Construction Year to 200707 Fitting Position Rear Axle | 2005-04 - 2009-03 | 66 | 90 | 1560 | Hatchback |
| PEUGEOT 307 (3A/C) Construction Year to 200707 Fitting Position Rear Axle | 2004-02 - 2009-03 | 80 | 109 | 1560 | Hatchback |
| PEUGEOT 307 (3A/C) Fitting Position Rear Axle | 2000-08 - 2007-03 | 66 | 90 | 1997 | Hatchback |
| PEUGEOT 307 (3A/C) Fitting Position Rear Axle | 2000-08 - 2007-03 | 79 | 107 | 1997 | Hatchback |
| PEUGEOT 307 (3A/C) Construction Year to 200707 Fitting Position Rear Axle | 2003-10 - 2007-11 | 100 | 136 | 1997 | Hatchback |
| PEUGEOT 307 Break (3E) Fitting Position Rear Axle | 2002-04 - 2003-09 | 55 | 75 | 1360 | Estate |
| PEUGEOT 307 Break (3E) Fitting Position Rear Axle | 2003-11 - 2007-07 | 65 | 88 | 1360 | Estate |
| PEUGEOT 307 Break (3E) Fitting Position Rear Axle | 2002-03 - 2008-04 | 80 | 109 | 1587 | Estate |
| PEUGEOT 307 Break (3E) Fitting Position Rear Axle | 2002-03 - 2005-06 | 100 | 136 | 1997 | Estate |
| PEUGEOT 307 Break (3E) Fitting Position Rear Axle | 2005-03 - 2008-04 | 103 | 140 | 1997 | Estate |
| PEUGEOT 307 Break (3E) Fitting Position Rear Axle | 2002-03 - 2005-06 | 50 | 68 | 1398 | Estate |
| PEUGEOT 307 Break (3E) Fitting Position Rear Axle | 2005-04 - 2008-04 | 66 | 90 | 1560 | Estate |
| PEUGEOT 307 Break (3E) Fitting Position Rear Axle | 2004-02 - 2008-04 | 80 | 109 | 1560 | Estate |
| PEUGEOT 307 Break (3E) Fitting Position Rear Axle | 2002-03 - 2008-04 | 66 | 90 | 1997 | Estate |
| PEUGEOT 307 Break (3E) Construction Year to 200804 Fitting Position Rear Axle | 2002-03 - 2009-12 | 79 | 107 | 1997 | Estate |
| PEUGEOT 307 Break (3E) Fitting Position Rear Axle | 2004-02 - 2008-04 | 100 | 136 | 1997 | Estate |
| PEUGEOT 307 SW (3H) Fitting Position Rear Axle | 2002-04 - 2003-09 | 55 | 75 | 1360 | Estate |
| PEUGEOT 307 SW (3H) Fitting Position Rear Axle | 2003-11 - 2007-07 | 65 | 88 | 1360 | Estate |
| PEUGEOT 307 SW (3H) Fitting Position Rear Axle | 2002-03 - 2008-04 | 80 | 109 | 1587 | Estate |
| PEUGEOT 307 SW (3H) Fitting Position Rear Axle | 2002-03 - 2005-06 | 100 | 136 | 1997 | Estate |
| PEUGEOT 307 SW (3H) Fitting Position Rear Axle | 2005-03 - 2008-04 | 103 | 140 | 1997 | Estate |
| PEUGEOT 307 SW (3H) Fitting Position Rear Axle | 2005-04 - 2008-04 | 66 | 90 | 1560 | Estate |
| PEUGEOT 307 SW (3H) Fitting Position Rear Axle | 2003-11 - 2007-12 | 80 | 109 | 1560 | Estate |
| PEUGEOT 307 SW (3H) Fitting Position Rear Axle | 2002-03 - 2008-04 | 66 | 90 | 1997 | Estate |
| PEUGEOT 307 SW (3H) Construction Year to 200804 Fitting Position Rear Axle | 2002-03 - 2009-12 | 79 | 107 | 1997 | Estate |
| PEUGEOT 307 SW (3H) Fitting Position Rear Axle | 2004-02 - 2008-04 | 100 | 136 | 1997 | Estate |
| PEUGEOT 307 CC (3B) Construction Year from 200503 Construction Year to 200902 Fitting Position Rear Axle | 2003-03 - 2009-04 | 80 | 110 | 1587 | Convertible |
| PEUGEOT 307 CC (3B) Fitting Position Rear Axle | 2003-10 - 2005-06 | 100 | 136 | 1997 | Convertible |
| PEUGEOT 307 CC (3B) Construction Year to 200902 Fitting Position Rear Axle | 2004-12 - 2009-04 | 103 | 140 | 1997 | Convertible |
| PEUGEOT 307 CC (3B) Construction Year to 200902 Fitting Position Rear Axle | 2003-10 - 2009-04 | 130 | 177 | 1997 | Convertible |
| PEUGEOT 307 CC (3B) Construction Year to 200902 Fitting Position Rear Axle | 2005-06 - 2009-04 | 100 | 136 | 1997 | Convertible |
| PEUGEOT 1007 (KM_) Construction Year to 201102 Fitting Position Rear Axle | 2005-04 - | 80 | 109 | 1587 | Hatchback |
| PEUGEOT 1007 (KM_) Construction Year to 201102 Fitting Position Rear Axle | 2007-06 - | 80 | 109 | 1560 | Hatchback |
| PEUGEOT PARTNER MPV (5_, G_) Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2001-07 - 2008-03 | 80 | 109 | 1587 | MPV |
| PEUGEOT PARTNER MPV (5_, G_) Construction Year to 200803 Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2005-08 - 2008-07 | 55 | 75 | 1560 | MPV |
| PEUGEOT PARTNER MPV (5_, G_) Construction Year from 200602 Construction Year to 200803 Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2005-08 - 2015-12 | 66 | 90 | 1560 | MPV |
| PEUGEOT PARTNER MPV (5_, G_) Construction Year to 200803 Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2000-02 - 2008-07 | 66 | 90 | 1997 | MPV |
| PEUGEOT PARTNER MPV (5_, G_) Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2004-04 - 2005-08 | 66 | 90 | 1997 | MPV |
| PEUGEOT PARTNER MPV (5_, G_) Fitting Position Rear Axle | 2009-11 - 2010-12 | 68 | 92 | 1560 | MPV |
| PEUGEOT PARTNER ORIGIN MPV (G_) Fitting Position Rear Axle | 2008-07 - 2013-12 | 55 | 75 | 1360 | MPV |
| PEUGEOT PARTNER ORIGIN MPV (G_) Fitting Position Rear Axle | 2008-08 - 2013-12 | 55 | 75 | 1560 | MPV |
| PEUGEOT 307 SW Estate Van (3E_, 3H_) Fitting Position Rear Axle | 2006-04 - 2008-10 | 66 | 90 | 1560 | Estate Van |
| PEUGEOT 307 SW Estate Van (3E_, 3H_) Fitting Position Rear Axle | 2003-04 - 2008-04 | 66 | 90 | 1997 | Estate Van |
| PEUGEOT 307 SW Estate Van (3E_, 3H_) Fitting Position Rear Axle | 2004-04 - 2007-11 | 100 | 136 | 1997 | Estate Van |
| PEUGEOT PARTNER Box Body/MPV (5_, G_) Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2000-09 - 2002-10 | 80 | 109 | 1587 | Box Body/MPV |
| PEUGEOT PARTNER Box Body/MPV (5_, G_) Fitting Position Rear Axle | 2009-11 - 2010-12 | 68 | 92 | 1560 | Box Body/MPV |
| PEUGEOT PARTNER Box Body/MPV (5_, G_) Construction Year to 200803 Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2000-04 - 2008-07 | 66 | 90 | 1997 | Box Body/MPV |
| PEUGEOT PARTNER Box Body/MPV (5_, G_) Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2004-04 - 2005-08 | 66 | 90 | 1997 | Box Body/MPV |
| PEUGEOT PARTNER Platform/Chassis (5_, G_) Construction Year to 200803 Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2002-11 - 2008-07 | 66 | 90 | 1997 | Platform/Chassis |
| PEUGEOT PARTNER ORIGIN Box Body/MPV (G_) Fitting Position Rear Axle | 2008-08 - 2015-12 | 55 | 75 | 1360 | Box Body/MPV |
| PEUGEOT PARTNER ORIGIN Box Body/MPV (G_) Fitting Position Rear Axle | 2008-08 - 2015-12 | 55 | 75 | 1560 | Box Body/MPV |
| PEUGEOT PARTNER ORIGIN Box Body/MPV (G_) Fitting Position Rear Axle | 2008-08 - 2015-12 | 66 | 90 | 1560 | Box Body/MPV |
24.0109-0137.1

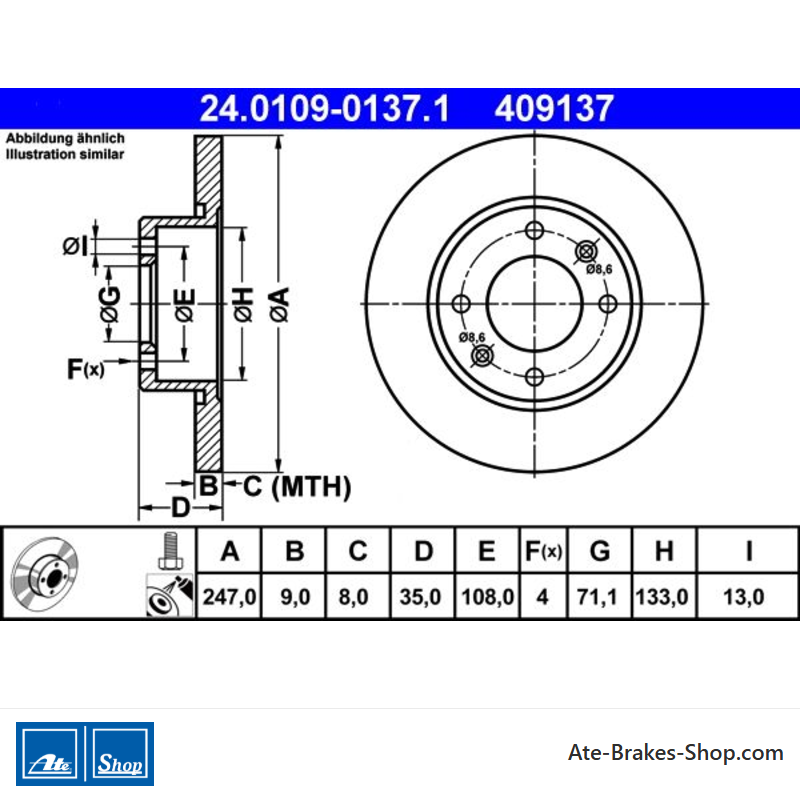

Data sheet
- Article Status
- Orderable
- Car Brand
- Citroën
Peugeot - Trade Number
- 409137
- Country Of Origin
- Czechia
- Additional Info
- with bolts/screws
- Height
- 35,0
- Outer Diameter [mm]
- 247,0
- Brake Disc Thickness [mm]
- 9,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 108,0
- Centering Diameter [mm]
- 71,1
- Inner Diameter [mm]
- 133,0
- Bore Diameter [mm]
- 13,0
- Minimum Thickness [mm]
- 8,0
Specific References
- EAN13
- 4006633091954
- MPN
- 2401090137102
ATE 24.0109-0137.1
(240109-01371)
- Outer Diameter [mm]: 247,0
- Inner Diameter [mm]: 133,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 409137
