2 pieces of ATE original Brake Disk (24013002301) for Citroën, Peugeot
€166.98
(tax incl.)
€138.00 tax excl.
Part-number:
ATE 24.0130-0230.1
(240130-02301)
- Outer Diameter [mm]: 340,0
- Inner Diameter [mm]: 133,0
- Brake Disc Thickness [mm]: 30,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 430230
Logistical information:
- Ean Code: 4006633390453
- Weight: 10.77kg
Specification of ATE 24.0130-0230.1 / 240130-02301 / 24013002301:
| OE Number | Reference info |
| CITROËN 4249 F6 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249F6 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 16 118 414 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 1611841480 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 F6 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249F6 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN DS4 (NX_) Fitting Position Front Axle | 2011-04 - 2015-07 | 147 | 200 | 1598 | Hatchback |
| CITROËN DS4 (NX_) Fitting Position Front Axle Rim Size [inch] 19.0 Inch | 2011-09 - 2015-07 | 100 | 136 | 1997 | Hatchback |
| CITROËN DS4 (NX_) Fitting Position Front Axle Rim Size [inch] 19.0 Inch | 2011-04 - 2015-07 | 120 | 163 | 1997 | Hatchback |
| CITROËN DS4 (NX_) Fitting Position Front Axle Rim Size [inch] 19.0 Inch | 2014-07 - 2015-07 | 133 | 180 | 1997 | Hatchback |
| CITROËN DS5 Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2011-11 - 2015-07 | 110 | 150 | 1598 | Hatchback |
| CITROËN DS5 Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2011-11 - 2015-07 | 115 | 156 | 1598 | Hatchback |
| CITROËN DS5 Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2012-01 - 2015-07 | 121 | 165 | 1598 | Hatchback |
| CITROËN DS5 Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2012-06 - 2015-07 | 121 | 165 | 1598 | Hatchback |
| CITROËN DS5 Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2011-11 - 2015-07 | 147 | 200 | 1598 | Hatchback |
| CITROËN DS5 Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2011-11 - 2015-07 | 82 | 112 | 1560 | Hatchback |
| CITROËN DS5 Construction Year from 201208 Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2012-06 - 2015-07 | 84 | 114 | 1560 | Hatchback |
| CITROËN DS5 Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2011-11 - 2015-07 | 100 | 136 | 1997 | Hatchback |
| CITROËN DS5 Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2014-07 - 2015-07 | 110 | 150 | 1997 | Hatchback |
| CITROËN DS5 Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2011-11 - 2015-07 | 120 | 163 | 1997 | Hatchback |
| CITROËN DS5 Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2013-08 - 2015-07 | 133 | 180 | 1997 | Hatchback |
| CITROËN DS5 Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2011-12 - 2015-07 | 147 | 200 | 1997 | Hatchback |
| DS DS 4 / DS 4 CROSSBACK (NX_) Fitting Position Front Axle | 2015-07 - 2018-12 | 155 | 210 | 1598 | Hatchback |
| DS DS 4 / DS 4 CROSSBACK (NX_) Fitting Position Front Axle Rim Size [inch] 19.0 Inch | 2015-07 - 2018-12 | 133 | 180 | 1997 | Hatchback |
| DS DS 5 (KF_) Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2015-07 - 2018-12 | 121 | 165 | 1598 | Hatchback |
| DS DS 5 (KF_) Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2015-04 - 2018-12 | 155 | 210 | 1598 | Hatchback |
| DS DS 5 (KF_) Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2015-04 - 2018-12 | 110 | 150 | 1997 | Hatchback |
| DS DS 5 (KF_) Wheel Hub Diameter [mm] 83 mm Fitting Position Front Axle | 2015-04 - 2018-12 | 133 | 180 | 1997 | Hatchback |
| DS DS 5 (KF_) Fitting Position Front Axle Wheel Hub Diameter [mm] 83 mm | 2015-04 - 2018-12 | 147 | 200 | 1997 | Hatchback |
| PEUGEOT 308 CC (4B_) Fitting Position Front Axle | 2010-10 - 2014-12 | 147 | 200 | 1598 | Convertible |
| PEUGEOT 308 I (4A_, 4C_) Construction Year to 201307 Fitting Position Front Axle | 2010-07 - 2014-10 | 147 | 200 | 1598 | Hatchback |
24.0130-0230.1

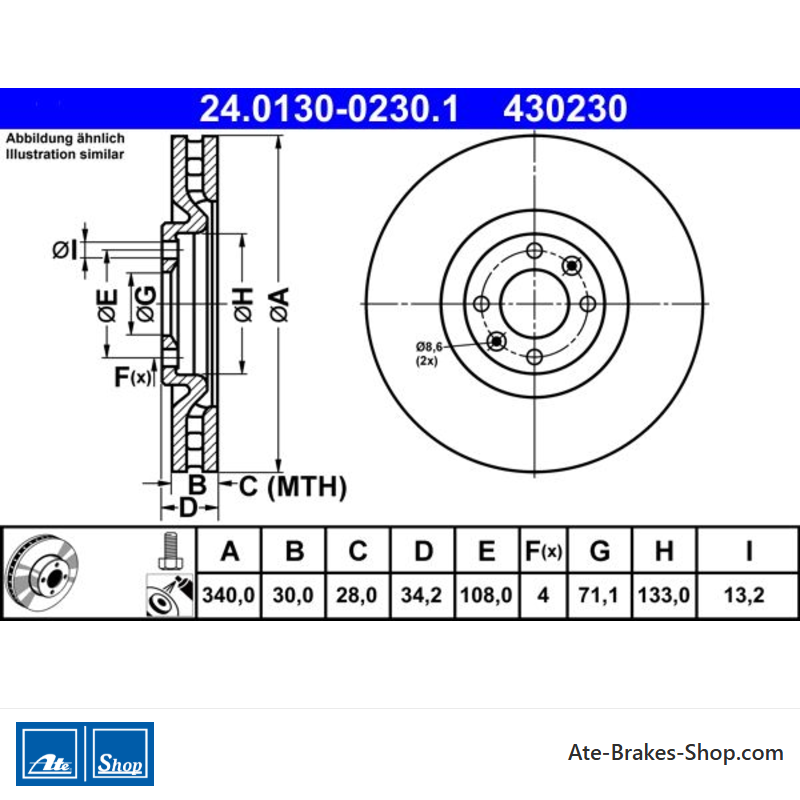

Data sheet
- Article Status
- Orderable
- Car Brand
- Citroën
Peugeot - Trade Number
- 430230
- Country Of Origin
- Italy
- Additional Info
- with bolts/screws
- Height
- 34,2
- Outer Diameter [mm]
- 340,0
- Brake Disc Thickness [mm]
- 30,0
- Brake Disc Type
- Vented
- Processing
- Alloyed/High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 108,0
- Centering Diameter [mm]
- 71,1
- Inner Diameter [mm]
- 133,0
- Bore Diameter [mm]
- 13,2
- Minimum Thickness [mm]
- 28,0
Specific References
- EAN13
- 4006633390453
- MPN
- 2401300230102
ATE 24.0130-0230.1
(240130-02301)
- Outer Diameter [mm]: 340,0
- Inner Diameter [mm]: 133,0
- Brake Disc Thickness [mm]: 30,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 430230
