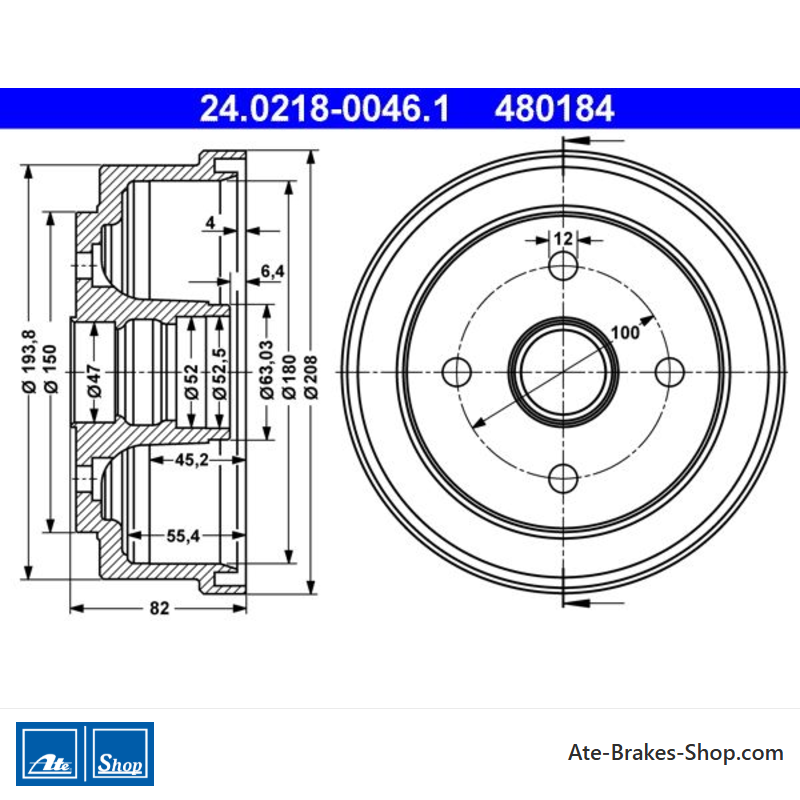

ATE Original 2 Pieces Brake Drum (24021800461) for Suzuki
€130.68
(tax incl.)
€108.00 tax excl.
Part-number:
ATE 24.0218-0046.1
(240218-00461)
- Outer diameter [mm]: 208,0
- Inner diameter [mm]: 180,0
- Support plate diameter [mm]: 52,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480184
- Ean Code: 4006633231732
- Weight: 10.71kg
Specification of ATE 24.0218-0046.1 / 240218-00461 / 24021800461:
| OE Number | Reference info |
| SUZUKI 43511-75F02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI WAGON R+ Hatchback (EM) Construction Year to 200004 Fitting Position Rear Axle | 1998-02 - 2000-05 | 48 | 65 | 996 | Hatchback |
| SUZUKI WAGON R+ Hatchback (EM) Construction Year to 200004 Fitting Position Rear Axle | 1998-02 - 2000-05 | 51 | 69 | 1171 | Hatchback |
24.0218-0046.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 480184
- Country Of Origin
- Italy
- Additional Info
- without ABS sensor ring
without wheel bearing - Height
- 82,0
- Outer Diameter [mm]
- 208,0
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Support Plate Diameter [mm]
- 52,0
- Inner Diameter [mm]
- 180,0
- Bore Diameter [mm]
- 12,0
- Max. Reboring Dimension [mm]
- 182,0
- Brake Drum Inner Height [mm]
- 45,2
- Brake Drum Inner Diameter [mm]
- 47,0
Specific References
- EAN13
- 4006633231732
- MPN
- 2402180046102
ATE 24.0218-0046.1
(240218-00461)
- Outer diameter [mm]: 208,0
- Inner diameter [mm]: 180,0
- Support plate diameter [mm]: 52,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480184
