ATE Original 2 Pieces Brake Drum (24021800471) for Suzuki
€105.27
(tax incl.)
€87.00 tax excl.
Part-number:
ATE 24.0218-0047.1
(240218-00471)
- Outer diameter [mm]: 205,0
- Inner diameter [mm]: 180,0
- Support plate diameter [mm]: 52,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480194
- Ean Code: 4006633296847
- Weight: 9.06kg
Specification of ATE 24.0218-0047.1 / 240218-00471 / 24021800471:
| OE Number | Reference info |
| SUZUKI 43511-84040 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI ALTO IV (EF, SH410_) Fitting Position Rear Axle | 1994-09 - 2002-06 | 39 | 53 | 993 | Hatchback |
| SUZUKI ALTO V (HA12_, HA23_, HA22_) Fitting Position Rear Axle | 2000-01 - 2002-06 | 43 | 58 | 993 | Hatchback |
| SUZUKI ALTO VI (FF, HA24_) Fitting Position Rear Axle | 2002-06 - 2008-12 | 46 | 63 | 1061 | Hatchback |

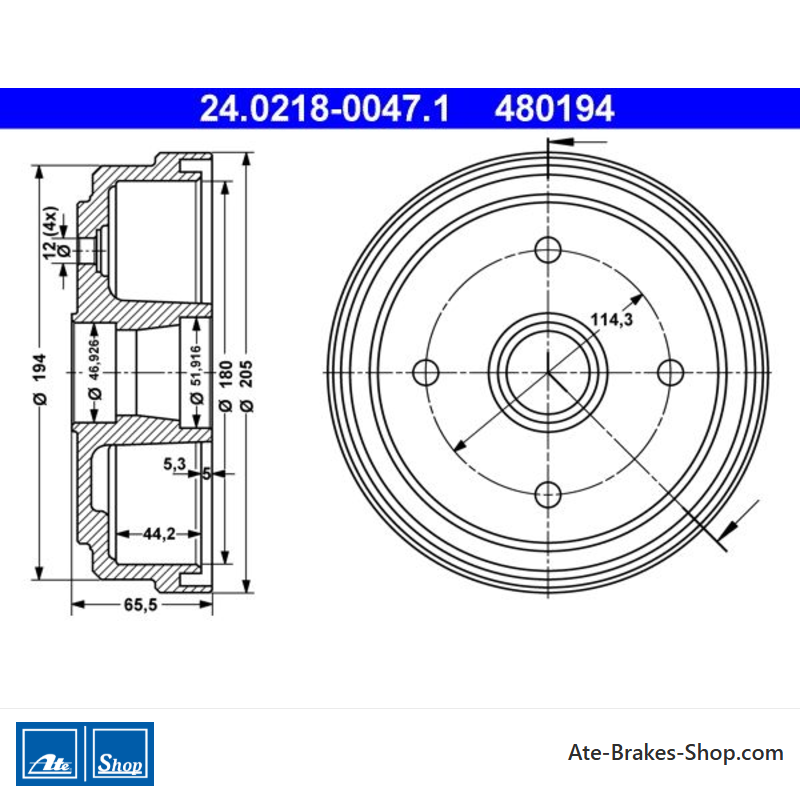

24.0218-0047.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 480194
- Country Of Origin
- Italy
- Additional Info
- without ABS sensor ring
without wheel bearing - Height
- 65,5
- Outer Diameter [mm]
- 205,0
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 114,3
- Support Plate Diameter [mm]
- 52,0
- Inner Diameter [mm]
- 180,0
- Bore Diameter [mm]
- 12,0
- Max. Reboring Dimension [mm]
- 182,0
- Brake Drum Inner Height [mm]
- 44,2
- Brake Drum Inner Diameter [mm]
- 47,0
Specific References
- EAN13
- 4006633296847
- MPN
- 2402180047102
