ATE Original 2 Pieces Brake Drum (24022000091) for Ford
€108.90
(tax incl.)
€90.00 tax excl.
Part-number:
ATE 24.0220-0009.1
(240220-00091)
- Outer diameter [mm]: 244,0
- Inner diameter [mm]: 200,0
- Support plate diameter [mm]: 63,5
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480317
- Ean Code: 4006633408486
- Weight: 8.34kg
Specification of ATE 24.0220-0009.1 / 240220-00091 / 24022000091:
| OE Number | Reference info |
| FORD 1523797 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1535923 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 5214583 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD C1BC-1126-AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2017683 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD G1B5-1126-AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 8V51-1113-AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD FIESTA Saloon Fitting Position Rear Axle | 2015-03 - 2017-04 | 77 | 105 | 1596 | Saloon |
| FORD FIESTA Saloon Fitting Position Rear Axle | 2010-04 - 2017-04 | 88 | 120 | 1596 | Saloon |
| FORD FIESTA VI (CB1, CCN) Fitting Position Rear Axle | 2013-01 - 2017-04 | 48 | 65 | 998 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Fitting Position Rear Axle | 2012-10 - 2017-04 | 59 | 80 | 998 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Fitting Position Rear Axle | 2013-01 - 2017-04 | 74 | 100 | 998 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Construction Year from 201210 Fitting Position Rear Axle | 2012-09 - 2017-04 | 92 | 125 | 998 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Fitting Position Rear Axle | 2014-05 - 2017-04 | 103 | 140 | 998 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Construction Year from 200809 Fitting Position Rear Axle | 2008-06 - 2017-04 | 44 | 60 | 1242 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Construction Year from 200809 Fitting Position Rear Axle | 2008-06 - 2017-04 | 60 | 82 | 1242 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Fitting Position Rear Axle | 2008-10 - 2017-04 | 71 | 97 | 1388 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Construction Year from 200906 Fitting Position Rear Axle | 2009-01 - 2017-04 | 68 | 92 | 1388 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Construction Year from 200906 Fitting Position Rear Axle | 2009-01 - 2017-04 | 71 | 97 | 1388 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Construction Year from 201210 Fitting Position Rear Axle | 2012-09 - 2017-04 | 77 | 105 | 1596 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Construction Year from 200809 Fitting Position Rear Axle | 2008-06 - 2018-01 | 88 | 120 | 1596 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Fitting Position Rear Axle | 2010-12 - 2017-04 | 99 | 134 | 1596 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Fitting Position Rear Axle | 2008-08 - 2012-09 | 50 | 68 | 1399 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Fitting Position Rear Axle | 2010-07 - 2012-09 | 51 | 70 | 1399 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Construction Year from 201210 Fitting Position Rear Axle | 2012-09 - 2017-04 | 55 | 75 | 1499 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Fitting Position Rear Axle | 2015-05 - 2017-04 | 70 | 95 | 1499 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Construction Year from 200809 Fitting Position Rear Axle | 2008-06 - 2012-12 | 55 | 75 | 1560 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Construction Year from 200809 Fitting Position Rear Axle | 2008-06 - 2012-12 | 55 | 75 | 1560 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Construction Year from 200809 Fitting Position Rear Axle | 2008-06 - 2012-12 | 66 | 90 | 1560 | Hatchback |
| FORD FIESTA VI (CB1, CCN) Fitting Position Rear Axle | 2010-02 - 2015-12 | 70 | 95 | 1560 | Hatchback |
| FORD KA+ III Saloon (TK, FK) Country Specific Design Europe Fitting Position Rear Axle | 2016-06 - 2020-12 | 63 | 85 | 1196 | Saloon |
| FORD KA+ III (UK, FK) Fitting Position Rear Axle | 2018-02 - 2020-12 | 51 | 69 | 1194 | Hatchback |
| FORD KA+ III (UK, FK) Fitting Position Rear Axle | 2018-02 - 2020-12 | 63 | 85 | 1194 | Hatchback |
| FORD KA+ III (UK, FK) Country Specific Design Europe Fitting Position Rear Axle | 2016-06 - 2020-12 | 63 | 85 | 1196 | Hatchback |
| FORD KA+ III (UK, FK) Country Specific Design Europe Fitting Position Rear Axle | 2016-06 - 2020-12 | 51 | 70 | 1198 | Hatchback |
| FORD KA+ III (UK, FK) Fitting Position Rear Axle | 2018-02 - 2020-12 | 66 | 90 | 1499 | Hatchback |
| FORD KA+ III (UK, FK) Fitting Position Rear Axle | 2018-02 - 2020-12 | 70 | 95 | 1499 | Hatchback |
| FORD FIESTA VI Van Fitting Position Rear Axle | 2012-10 - 2017-04 | 59 | 80 | 998 | Hatchback Van |
| FORD FIESTA VI Van Fitting Position Rear Axle | 2013-01 - 2017-04 | 74 | 100 | 998 | Hatchback Van |
| FORD FIESTA VI Van Construction Year from 201210 Fitting Position Rear Axle | 2012-09 - 2017-04 | 92 | 125 | 998 | Hatchback Van |
| FORD FIESTA VI Van Fitting Position Rear Axle | 2008-08 - 2012-12 | 44 | 60 | 1242 | Hatchback Van |
| FORD FIESTA VI Van Fitting Position Rear Axle | 2009-01 - 2017-04 | 60 | 82 | 1242 | Hatchback Van |
| FORD FIESTA VI Van Fitting Position Rear Axle | 2008-10 - 2012-12 | 71 | 97 | 1388 | Hatchback Van |
| FORD FIESTA VI Van Fitting Position Rear Axle | 2009-01 - 2017-04 | 50 | 68 | 1399 | Hatchback Van |
| FORD FIESTA VI Van Fitting Position Rear Axle | 2010-07 - 2017-04 | 51 | 70 | 1399 | Hatchback Van |
| FORD FIESTA VI Van Fitting Position Rear Axle | 2012-10 - 2017-04 | 55 | 75 | 1499 | Hatchback Van |
| FORD FIESTA VI Van Fitting Position Rear Axle | 2015-05 - 2017-04 | 70 | 95 | 1499 | Hatchback Van |
| FORD FIESTA VI Van Fitting Position Rear Axle | 2009-01 - 2017-04 | 66 | 90 | 1560 | Hatchback Van |
| FORD FIESTA VI Van Fitting Position Rear Axle | 2010-02 - 2015-05 | 70 | 95 | 1560 | Hatchback Van |

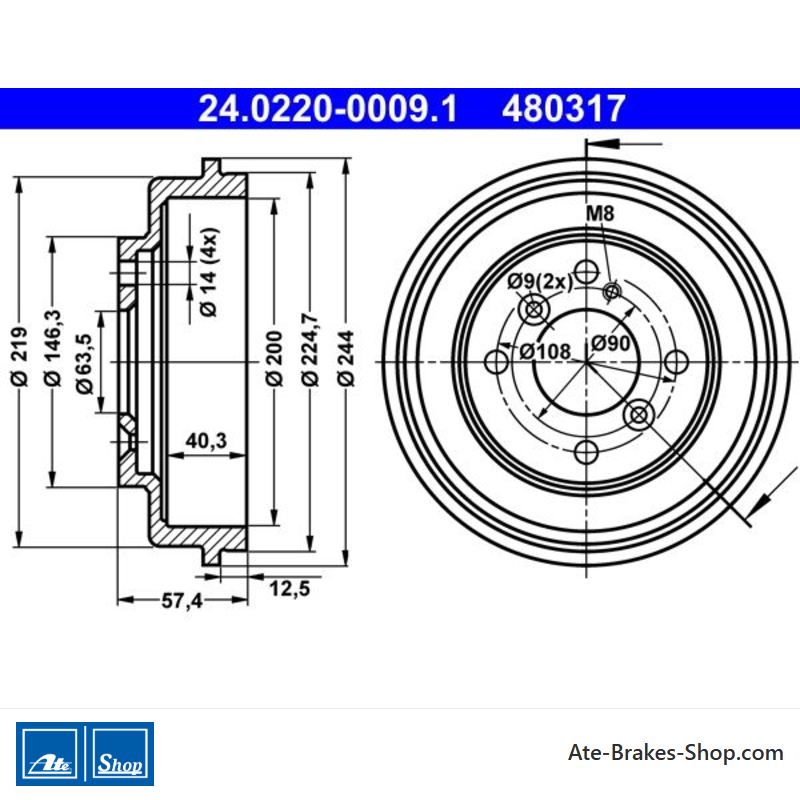

24.0220-0009.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Ford
- Trade Number
- 480317
- Country Of Origin
- China
- Height
- 57,4
- Outer Diameter [mm]
- 244,0
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 108,0
- Support Plate Diameter [mm]
- 63,5
- Inner Diameter [mm]
- 200,0
- Bore Diameter [mm]
- 14,0
- Max. Reboring Dimension [mm]
- 201,5
- Brake Drum Inner Height [mm]
- 40,3
Specific References
- EAN13
- 4006633408486
- MPN
- 2402200009102
