ATE Original 2 Pieces Brake Drum (24022030042) for Ford
€141.57
(tax incl.)
€117.00 tax excl.
Part-number:
ATE 24.0220-3004.2
(240220-30042)
- Outer diameter [mm]: 239,0
- Inner diameter [mm]: 203,0
- Support plate diameter [mm]: 50,3
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480023
- Ean Code: 4006633280938
- Weight: 11.45kg
Specification of ATE 24.0220-3004.2 / 240220-30042 / 24022030042:
| OE Number | Reference info |
| FORD 6920711 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6560028 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD ESCORT V (AAL, ABL) Construction Year from 199009 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-07 - 1995-01 | 44 | 60 | 1299 | Hatchback |
| FORD ESCORT V (AAL, ABL) Construction Year from 199009 Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-07 - 1995-01 | 52 | 71 | 1392 | Hatchback |
| FORD ESCORT V (AAL, ABL) Construction Year from 199009 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-07 - 1995-01 | 52 | 71 | 1392 | Hatchback |
| FORD ESCORT V (AAL, ABL) Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-09 - 1994-12 | 55 | 75 | 1392 | Hatchback |
| FORD ESCORT V (AAL, ABL) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-09 - 1994-12 | 55 | 75 | 1392 | Hatchback |
| FORD ESCORT V (AAL, ABL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-01 - 1995-01 | 65 | 88 | 1597 | Hatchback |
| FORD ESCORT V (AAL, ABL) Construction Year from 199009 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-07 - 1992-08 | 66 | 90 | 1598 | Hatchback |
| FORD ESCORT V (AAL, ABL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-09 - 1995-01 | 66 | 90 | 1597 | Hatchback |
| FORD ESCORT V (AAL, ABL) Construction Year from 199009 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-07 - 1993-08 | 77 | 105 | 1598 | Hatchback |
| FORD ESCORT V (AAL, ABL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-02 - 1995-01 | 77 | 105 | 1796 | Hatchback |
| FORD ESCORT V (AAL, ABL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-08 - 1995-01 | 77 | 105 | 1796 | Hatchback |
| FORD ESCORT V (AAL, ABL) Construction Year from 199009 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-07 - 1995-01 | 44 | 60 | 1753 | Hatchback |
| FORD ESCORT V (AAL, ABL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-02 - 1995-01 | 66 | 90 | 1753 | Hatchback |
| FORD ESCORT V Turnier (ANL) Fitting Position Rear Axle | 1991-09 - 1995-01 | 44 | 60 | 1299 | Estate |
| FORD ESCORT V Turnier (ANL) Construction Year from 199009 Fitting Position Rear Axle | 1990-07 - 1995-01 | 52 | 71 | 1392 | Estate |
| FORD ESCORT V Turnier (ANL) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1994-01 - 1995-01 | 55 | 75 | 1392 | Estate |
| FORD ESCORT V Turnier (ANL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-01 - 1995-01 | 65 | 88 | 1597 | Estate |
| FORD ESCORT V Turnier (ANL) Construction Year from 199009 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-07 - 1992-08 | 66 | 90 | 1598 | Estate |
| FORD ESCORT V Turnier (ANL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-09 - 1995-01 | 66 | 90 | 1597 | Estate |
| FORD ESCORT V Turnier (ANL) Construction Year from 199009 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-07 - 1992-09 | 77 | 105 | 1598 | Estate |
| FORD ESCORT V Turnier (ANL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-02 - 1995-01 | 77 | 105 | 1796 | Estate |
| FORD ESCORT V Turnier (ANL) Construction Year from 199009 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-07 - 1995-01 | 44 | 60 | 1753 | Estate |
| FORD ESCORT V Turnier (ANL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-02 - 1995-01 | 66 | 90 | 1753 | Estate |
| FORD ESCORT V Convertible (ALL, BJ2) Construction Year from 199009 Fitting Position Rear Axle | 1990-07 - 1994-04 | 52 | 71 | 1392 | Convertible |
| FORD ESCORT V Convertible (ALL, BJ2) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-07 - 1995-01 | 55 | 75 | 1392 | Convertible |
| FORD ESCORT V Convertible (ALL, BJ2) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-02 - 1995-01 | 65 | 88 | 1597 | Convertible |
| FORD ESCORT V Convertible (ALL, BJ2) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-12 - 1995-01 | 66 | 90 | 1597 | Convertible |
| FORD ESCORT V Convertible (ALL, BJ2) Construction Year from 199009 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-07 - 1993-08 | 77 | 105 | 1598 | Convertible |
| FORD ESCORT V Convertible (ALL, BJ2) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-02 - 1995-01 | 77 | 105 | 1796 | Convertible |
| FORD ESCORT VI Convertible (ALL) Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1998-08 | 55 | 75 | 1392 | Convertible |
| FORD ESCORT VI Convertible (ALL) Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1996-12 | 65 | 88 | 1597 | Convertible |
| FORD ESCORT VI Convertible (ALL) Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1999-09 | 66 | 90 | 1597 | Convertible |
| FORD ESCORT VI Convertible (ALL) Construction Year to 199507 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1998-08 | 77 | 105 | 1796 | Convertible |
| FORD ESCORT VI Convertible (ALL) Construction Year to 199507 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 2000-08 | 96 | 130 | 1796 | Convertible |
| FORD ESCORT V Saloon (AFL) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-08 - 1995-01 | 44 | 60 | 1299 | Saloon |
| FORD ESCORT V Saloon (AFL) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-08 - 1994-04 | 52 | 71 | 1392 | Saloon |
| FORD ESCORT V Saloon (AFL) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-08 - 1995-01 | 55 | 75 | 1392 | Saloon |
| FORD ESCORT V Saloon (AFL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1994-01 - 1995-01 | 65 | 88 | 1597 | Saloon |
| FORD ESCORT V Saloon (AFL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-08 - 1995-01 | 66 | 90 | 1597 | Saloon |
| FORD ESCORT V Saloon (AFL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-08 - 1995-01 | 77 | 105 | 1796 | Saloon |
| FORD ESCORT V Saloon (AFL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-08 - 1995-01 | 44 | 60 | 1753 | Saloon |
| FORD ESCORT V Saloon (AFL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1993-08 - 1995-01 | 66 | 90 | 1753 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199502 Braking/Driving Dynamics for vehicles with ABS Construction Year to 199507 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 44 | 60 | 1299 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1996-12 | 54 | 73 | 1392 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 55 | 75 | 1392 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1995-08 | 65 | 88 | 1597 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 66 | 90 | 1597 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199502 Construction Year to 199507 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1995-08 | 77 | 105 | 1796 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199502 Construction Year to 199507 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 85 | 115 | 1796 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year to 199501 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-01 - 1996-12 | 44 | 60 | 1753 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1996-12 | 44 | 60 | 1753 | Saloon |
| FORD ESCORT VI Saloon (GAL, AFL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 66 | 90 | 1753 | Saloon |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199502 Braking/Driving Dynamics for vehicles with ABS Construction Year to 199507 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1998-10 | 44 | 60 | 1299 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1998-10 | 55 | 75 | 1392 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1995-08 | 65 | 88 | 1597 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1998-10 | 66 | 90 | 1597 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1998-10 | 66 | 90 | 1597 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199502 Construction Year to 199507 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1995-08 | 77 | 105 | 1796 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199502 Construction Year to 199507 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1998-10 | 85 | 115 | 1796 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year to 199507 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1998-02 | 110 | 150 | 1998 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year to 199507 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1998-10 | 110 | 150 | 1998 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year to 199507 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-02 - 1998-10 | 162 | 220 | 1994 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year to 199501 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-01 - 1996-12 | 44 | 60 | 1753 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1996-12 | 44 | 60 | 1753 | Hatchback |
| FORD ESCORT VI (GAL, AAL, ABL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1998-10 | 66 | 90 | 1753 | Hatchback |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-01 | 44 | 60 | 1299 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1996-12 | 54 | 73 | 1392 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 55 | 75 | 1392 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1995-08 | 65 | 88 | 1597 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 66 | 90 | 1597 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199502 Construction Year to 199507 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1995-08 | 77 | 105 | 1796 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199502 Construction Year to 199507 Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 85 | 115 | 1796 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 44 | 60 | 1753 | Estate |
| FORD ESCORT VI Turnier (GAL, ANL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 1999-02 | 66 | 90 | 1753 | Estate |
| FORD ORION III (GAL) Construction Year from 199009 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-07 - 1993-12 | 44 | 60 | 1299 | Saloon |
| FORD ORION III (GAL) Construction Year from 199009 Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-07 - 1993-12 | 52 | 71 | 1391 | Saloon |
| FORD ORION III (GAL) Construction Year from 199009 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-07 - 1993-12 | 52 | 71 | 1391 | Saloon |
| FORD ORION III (GAL) Construction Year from 199009 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-07 - 1993-12 | 54 | 73 | 1392 | Saloon |
| FORD ORION III (GAL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-07 - 1993-12 | 66 | 90 | 1597 | Saloon |
| FORD ORION III (GAL) Construction Year from 199009 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-07 - 1992-12 | 66 | 90 | 1598 | Saloon |
| FORD ORION III (GAL) Construction Year from 199009 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-07 - 1992-09 | 77 | 105 | 1598 | Saloon |
| FORD ORION III (GAL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-02 - 1993-12 | 77 | 105 | 1796 | Saloon |
| FORD ORION III (GAL) Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1990-11 - 1993-12 | 44 | 60 | 1753 | Saloon |
| FORD ORION III (GAL) Construction Year from 199302 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1992-03 - 1993-12 | 66 | 90 | 1753 | Saloon |
| FORD ESCORT V Express (AVF) Construction Year from 199009 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-07 - 1994-12 | 46 | 63 | 1299 | Estate Van |
| FORD ESCORT V Express (AVF) Construction Year from 199009 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-07 - 1994-12 | 52 | 71 | 1391 | Estate Van |
| FORD ESCORT VI Estate Van (AVL) Construction Year from 199502 Construction Year to 199507 Braking/Driving Dynamics for vehicles with ABS Inner brake drum diameter [inch] 8 Inch Fitting Position Rear Axle | 1995-01 - 2000-08 | 44 | 60 | 1753 | Estate Van |
24.0220-3004.2

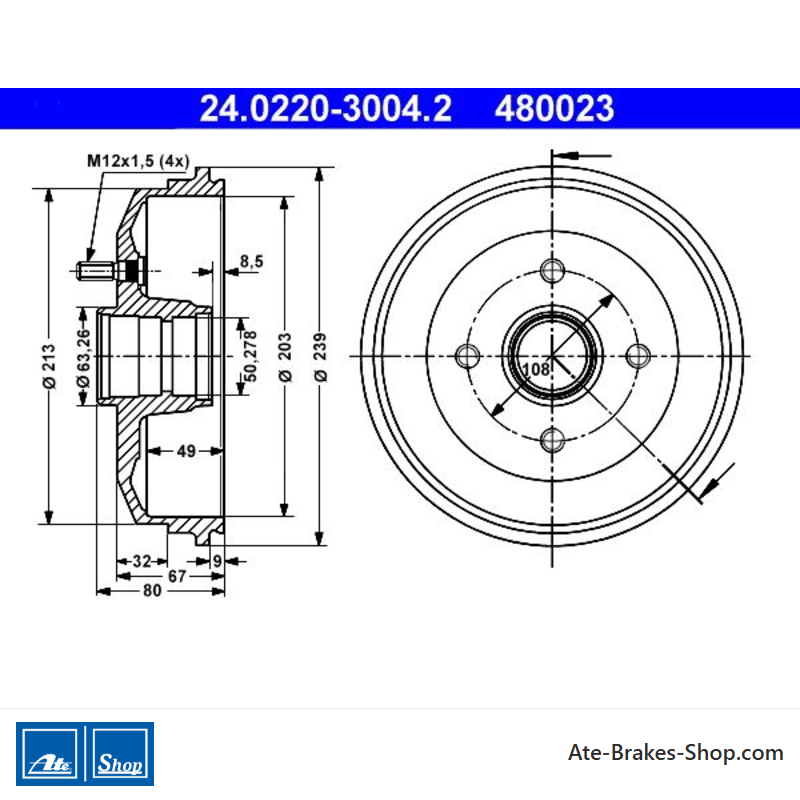

Data sheet
- Article Status
- Orderable
- Car Brand
- Ford
- Trade Number
- 480023
- Country Of Origin
- Italy
- Additional Info
- without ABS sensor ring
without wheel bearing
with wheel studs - Height
- 80,0
- Outer Diameter [mm]
- 239,0
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 108,0
- Support Plate Diameter [mm]
- 50,3
- Inner Diameter [mm]
- 203,0
- Thread Size
- M12x1,5
- Max. Reboring Dimension [mm]
- 204,0
- Brake Drum Inner Height [mm]
- 49,0
Specific References
- EAN13
- 4006633280938
- MPN
- 2402203004202
ATE 24.0220-3004.2
(240220-30042)
- Outer diameter [mm]: 239,0
- Inner diameter [mm]: 203,0
- Support plate diameter [mm]: 50,3
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480023
