ATE Original 2 Pieces Brake Drum (24022030561) for Toyota
€123.42
(tax incl.)
€102.00 tax excl.
Part-number:
ATE 24.0220-3056.1
(240220-30561)
- Outer diameter [mm]: 239,0
- Inner diameter [mm]: 202,6
- Support plate diameter [mm]: 55,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Drum
- Trade Number: 480342
- Ean Code: 4006633507356
- Weight: 8.45kg

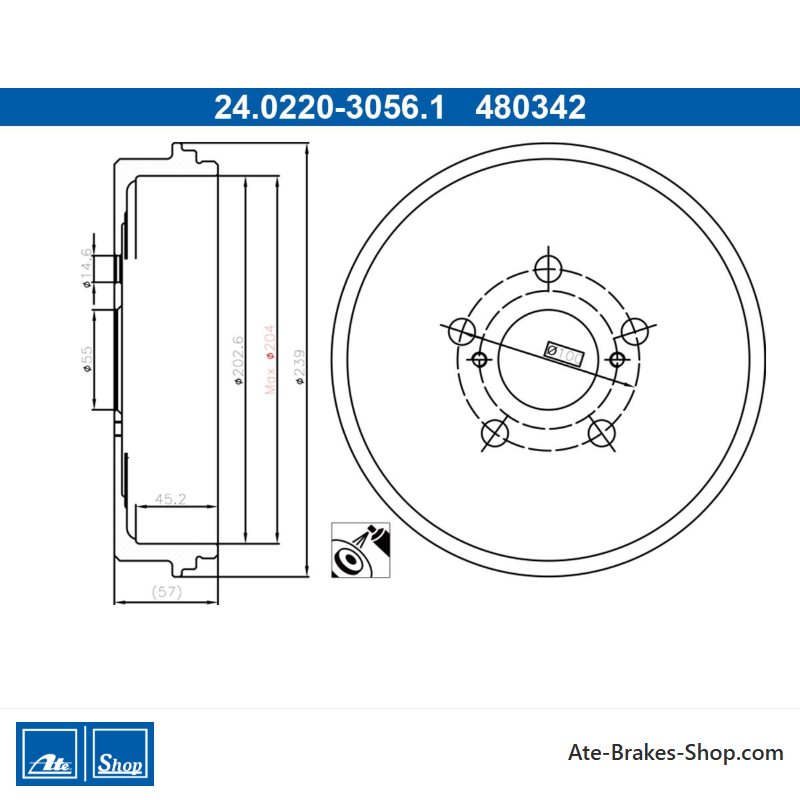

Specification of ATE 24.0220-3056.1 / 240220-30561 / 24022030561:
| OE Number | Reference info |
| TOYOTA 42431-K0040 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA YARIS (_P21_, _PA1_, _PH1_) Fitting Position Rear Axle | 2020-02 - | 53 | 72 | 998 | Hatchback |
| TOYOTA YARIS (_P21_, _PA1_, _PH1_) Fitting Position Rear Axle | 2020-02 - | 88 | 120 | 1490 | Hatchback |
| TOYOTA YARIS (_P21_, _PA1_, _PH1_) Fitting Position Rear Axle | 2020-02 - | 92 | 125 | 1490 | Hatchback |
24.0220-3056.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Toyota
- Trade Number
- 480342
- Country Of Origin
- China
- Height
- 57,0
- Outer Diameter [mm]
- 239,0
- Surface
- painted
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 100,0
- Support Plate Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 202,6
- Bore Diameter [mm]
- 14,5
- Max. Reboring Dimension [mm]
- 204,0
- Brake Drum Inner Height [mm]
- 45,2
Specific References
- EAN13
- 4006633507356
- MPN
- 2402203056102
ATE 24.0220-3056.1
(240220-30561)
- Outer diameter [mm]: 239,0
- Inner diameter [mm]: 202,6
- Support plate diameter [mm]: 55,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Drum
- Trade Number: 480342
