2 pieces of ATE original Brake Drum (24022030591) for Citroën, Opel, Peugeot
€87.12
(tax incl.)
€72.00 tax excl.
Part-number:
ATE 24.0220-3059.1
(240220-30591)
- Outer diameter [mm]: 239,0
- Inner diameter [mm]: 203,0
- Support plate diameter [mm]: 71,1
- Number of Bolt Holes: 4
- 2 pieces of Brake Drum
- Trade Number: 480347
- Ean Code: 4006633507400
- Weight: 8.54kg

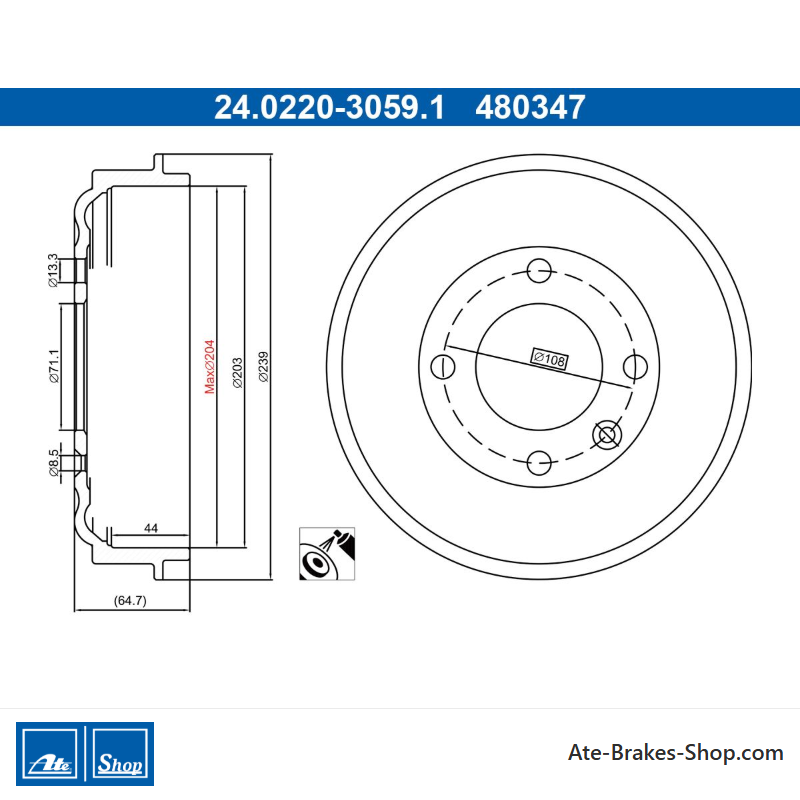

Specification of ATE 24.0220-3059.1 / 240220-30591 / 24022030591:
| OE Number | Reference info |
| CITROËN 98 215 724 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 9821572480 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 98 215 724 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9821572480 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 98 215 724 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 9821572480 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 98 215 724 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 9821572480 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 98 215 724 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 9821572480 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN AMI (9A_) Fitting Position Rear Axle | 2020-04 - | 6 | 8 | CC | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Rear Axle | 2019-07 - | 55 | 75 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Rear Axle | 2019-07 - | 74 | 101 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Rear Axle | 2023-08 - | 74 | 101 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Rear Axle | 2019-07 - | 96 | 131 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Rear Axle | 2024-01 - | 100 | 136 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Rear Axle | 2019-07 - | 75 | 102 | 1499 | Hatchback |
| OPEL ROCKS-E Fitting Position Rear Axle | 2021-10 - | 6 | 8 | CC | Hatchback |
| OPEL CORSA F Hatchback Van Fitting Position Rear Axle | 2019-07 - | 55 | 75 | 1199 | Hatchback Van |
| OPEL CORSA F Hatchback Van Fitting Position Rear Axle | 2019-07 - | 75 | 102 | 1499 | Hatchback Van |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-06 - | 100 | 136 | CC | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle Inner brake drum diameter [inch] 8 Inch | 2023-01 - | 115 | 156 | CC | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-06 - | 55 | 75 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-06 - | 60 | 82 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-10 - | 68 | 92 | 1560 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-06 - | 74 | 101 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle Inner brake drum diameter [inch] 8 Inch | 2023-08 - | 74 | 101 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-06 - | 96 | 131 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-06 - | 75 | 102 | 1499 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-11 - | 85 | 116 | 1587 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-09 - | 96 | 131 | 1499 | Hatchback |
24.0220-3059.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Citroën
Opel
Peugeot - Trade Number
- 480347
- Country Of Origin
- China
- Height
- 64,7
- Outer Diameter [mm]
- 239,0
- Surface
- painted
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 108,0
- Support Plate Diameter [mm]
- 71,1
- Inner Diameter [mm]
- 203,0
- Bore Diameter [mm]
- 13,3
- Max. Reboring Dimension [mm]
- 204,0
- Brake Drum Inner Height [mm]
- 44,0
Specific References
- EAN13
- 4006633507400
- MPN
- 2402203059102
ATE 24.0220-3059.1
(240220-30591)
- Outer diameter [mm]: 239,0
- Inner diameter [mm]: 203,0
- Support plate diameter [mm]: 71,1
- Number of Bolt Holes: 4
- 2 pieces of Brake Drum
- Trade Number: 480347
