ATE Originele 2-delige remtrommel (24022030591) voor Citroën, Opel, Peugeot
€ 87,12
(incl. btw)
€ 72,00 belastingexcl.
Onderdeelnummer:
ATE 24.0220-3059.1
(240220-30591)
- Buitendiameter [mm]: 239,0
- Binnendiameter [mm]: 203,0
- Draagplaat diameter [mm]: 71,1
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480347
- Ean Code: 4006633507400
- Gewicht: 8.54kg
Specification of ATE 24.0220-3059.1 / 240220-30591 / 24022030591:
| OE Number | Reference info |
| CITROËN 98 215 724 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 9821572480 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 98 215 724 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9821572480 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 98 215 724 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 9821572480 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 98 215 724 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 9821572480 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 98 215 724 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 9821572480 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN AMI (9A_) Fitting Position Rear Axle | 2020-04 - | 6 | 8 | CC | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Rear Axle | 2019-07 - | 55 | 75 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Rear Axle | 2019-07 - | 74 | 101 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Rear Axle | 2023-08 - | 74 | 101 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Rear Axle | 2019-07 - | 96 | 131 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Rear Axle | 2024-01 - | 100 | 136 | 1199 | Hatchback |
| OPEL CORSA F (P2JO) Fitting Position Rear Axle | 2019-07 - | 75 | 102 | 1499 | Hatchback |
| OPEL ROCKS-E Fitting Position Rear Axle | 2021-10 - | 6 | 8 | CC | Hatchback |
| OPEL CORSA F Hatchback Van Fitting Position Rear Axle | 2019-07 - | 55 | 75 | 1199 | Hatchback Van |
| OPEL CORSA F Hatchback Van Fitting Position Rear Axle | 2019-07 - | 75 | 102 | 1499 | Hatchback Van |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-06 - | 100 | 136 | CC | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle Inner brake drum diameter [inch] 8 Inch | 2023-01 - | 115 | 156 | CC | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-06 - | 55 | 75 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-06 - | 60 | 82 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-10 - | 68 | 92 | 1560 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-06 - | 74 | 101 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle Inner brake drum diameter [inch] 8 Inch | 2023-08 - | 74 | 101 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-06 - | 96 | 131 | 1199 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-06 - | 75 | 102 | 1499 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-11 - | 85 | 116 | 1587 | Hatchback |
| PEUGEOT 208 II (UB_, UP_, UW_, UJ_) Fitting Position Rear Axle | 2019-09 - | 96 | 131 | 1499 | Hatchback |

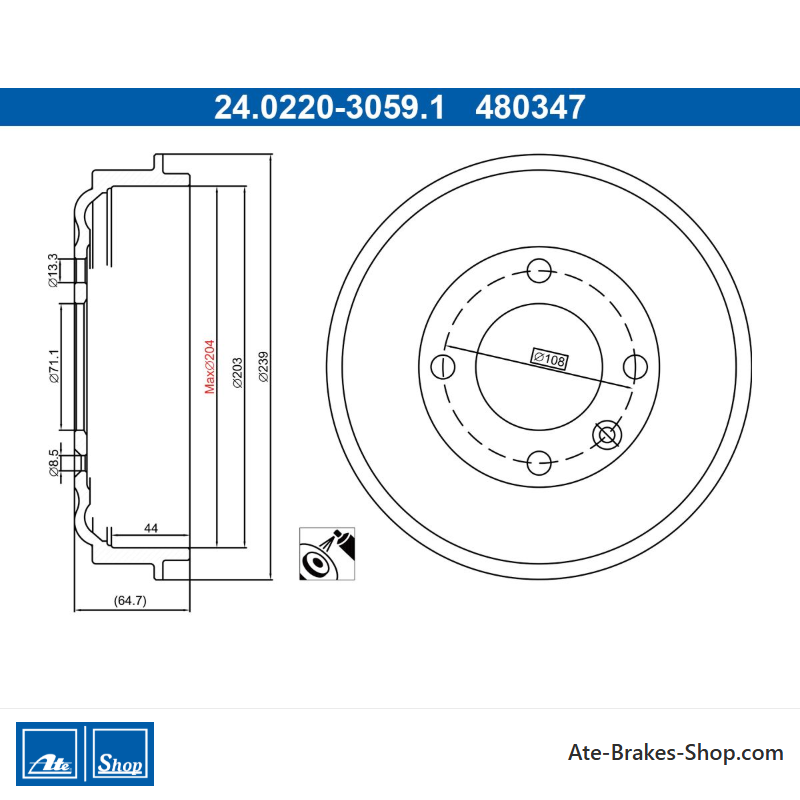

24.0220-3059.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Citroën
Opel
Peugeot - Handelsnummer
- 480347
- Land van Herkomst
- China
- Hoogte
- 64,7
- Buitendiameter [mm]
- 239,0
- Oppervlakte
- geschilderd
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 108,0
- Diameter van de ondersteuningsplaat [mm]
- 71,1
- Binnendiameter [mm]
- 203,0
- Bordiameter [mm]
- 13,3
- Max. Afborende Dimensie [mm]
- 204,0
- Binnenhoogte van de remtrommel [mm]
- 44,0
Specifieke referenties
- ean13
- 4006633507400
- MPN
- 2402203059102
ATE 24.0220-3059.1
(240220-30591)
- Buitendiameter [mm]: 239,0
- Binnendiameter [mm]: 203,0
- Draagplaat diameter [mm]: 71,1
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480347
