ATE Original 2 Pieces Brake Drum (24022200051) for Suzuki
search
  • ATE Original 2 Pieces Brake Drum (24022200051) for Suzuki

ATE Original 2 Pieces Brake Drum (24022200051) for Suzuki

€90.75 (tax incl.)

€75.00 tax excl.

Part-number:

ATE 24.0222-0005.1
(240222-00051)

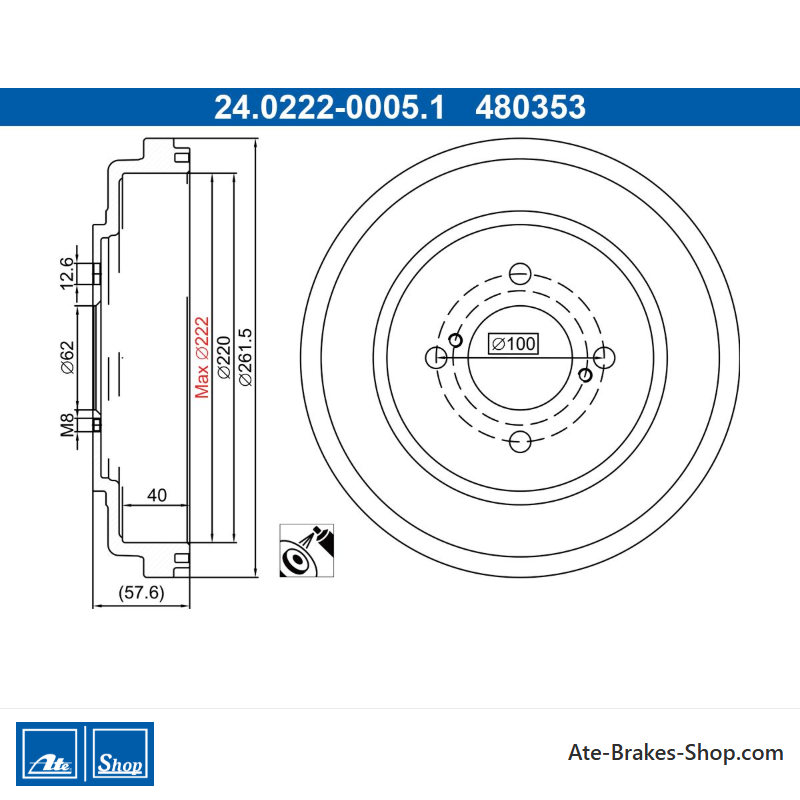

  • Outer diameter [mm]: 261,5
  • Inner diameter [mm]: 220,0
  • Support plate diameter [mm]: 62,0
  • Number of Bolt Holes: 4
  • 2 Pieces of Brake Drum
  • Trade Number: 480353
  • Ean Code: 4006633509886
  • Weight: 12.28kg
Quantity

Specification of ATE 24.0222-0005.1 / 240222-00051 / 24022200051:

OE Number Reference info
SUZUKI 43511-52R60 Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
SUZUKI 43511-52R61 Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

Model Model Year kW HP CC Type
SUZUKI SWIFT V (AZ)

Fitting Position Rear Axle		 2020-06 - 61 83 1197 Hatchback
24.0222-0005.1

Data sheet

Article Status
Orderable
Car Brand
Suzuki
Trade Number
480353
Country Of Origin
China
Height
57,6
Outer Diameter [mm]
261,5
Surface
painted
Number of Bolt Holes
4
Bolt Hole Diameter [mm]
100,0
Support Plate Diameter [mm]
62,0
Inner Diameter [mm]
220,0
Bore Diameter [mm]
12,6
Max. Reboring Dimension [mm]
222,0
Brake Drum Inner Height [mm]
40,0

Specific References

EAN13
4006633509886
MPN
2402220005102
