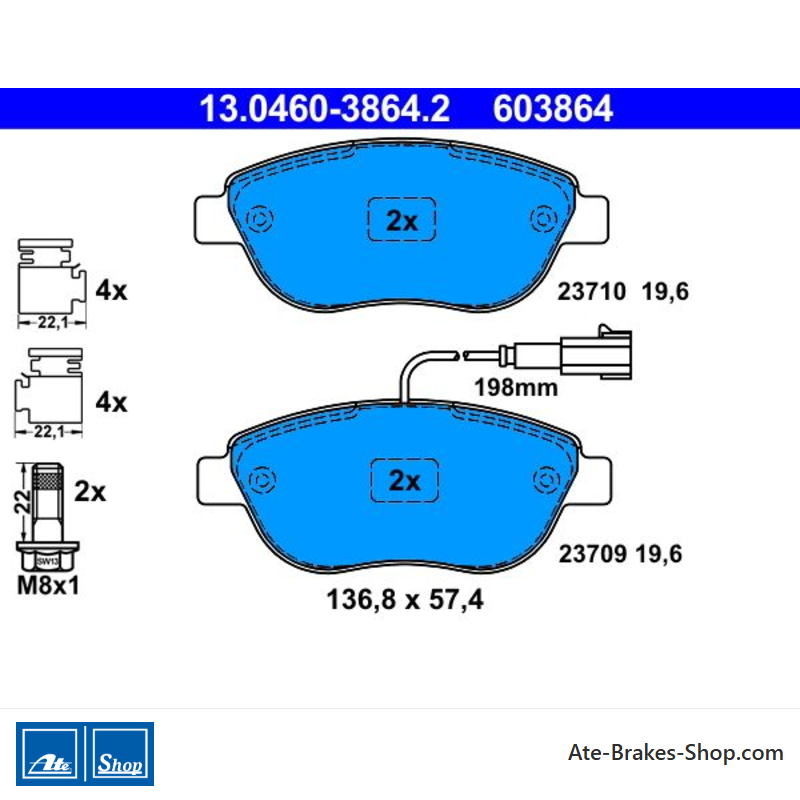

ATE original brake pads (13046038642) for Abarth, Fiat, Opel
€43.56
(tax incl.)
€36.00 tax excl.
Part-number:
ATE 13.0460-3864.2
(130460-38642)
- Width [mm]: 136,8
- Height [mm]: 57,4
- Thickness [mm]: 19,6
- Wear Warning Contact: incl. wear warning contact
- Brake System: Bosch
- Trade Number: 603864
- Ean Code: 4006633385725
- Weight: 1.95kg
Specification of ATE 13.0460-3864.2 / 130460-38642 / 13046038642:
| OE Number | Reference info |
| FIAT 5741585 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 5743721 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365716 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365026 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365113 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365468 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77365865 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71770094 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 16 05 268 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 1605268 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 95518218 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 95518218 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 16 05 268 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 1605268 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ABARTH 500C / 595C / 695C Fitting Position Front Axle | 2008-05 - | 99 | 135 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Fitting Position Front Axle | 2009-09 - | 103 | 140 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Fitting Position Front Axle | 2016-05 - | 107 | 145 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Fitting Position Front Axle | 2011-05 - | 118 | 160 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Fitting Position Front Axle | 2016-05 - | 121 | 165 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Fitting Position Front Axle | 2010-06 - | 132 | 180 | 1368 | Convertible |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2008-08 - | 99 | 135 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2010-05 - | 103 | 140 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2016-05 - | 107 | 145 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2008-08 - | 118 | 160 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2016-06 - | 120 | 163 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2016-05 - | 121 | 165 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2008-08 - | 132 | 180 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Fitting Position Front Axle | 2008-08 - | 140 | 190 | 1368 | Hatchback |
| FIAT FIORINO MPV (225_) Fitting Position Front Axle | 2011-01 - | 70 | 95 | 1248 | MPV |
| FIAT GRANDE PUNTO (199_) Construction Year to 201101 Fitting Position Front Axle | 2010-04 - | 62 | 84 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2018-05 - | 66 | 90 | 1248 | Hatchback |
| FIAT PUNTO (199_) Fitting Position Front Axle | 2012-03 - | 70 | 95 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2009-10 - 2012-02 | 99 | 135 | 1368 | Hatchback |
| FIAT PUNTO EVO (199_) Construction Year from 200910 Fitting Position Front Axle | 2008-07 - 2012-02 | 51 | 69 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2009-10 - 2012-02 | 62 | 84 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2009-10 - 2012-02 | 66 | 90 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2009-10 - 2012-02 | 70 | 95 | 1248 | Hatchback |
| FIAT PUNTO EVO (199_) Fitting Position Front Axle | 2009-10 - 2012-02 | 88 | 120 | 1598 | Hatchback |
| FIAT QUBO (225_) Fitting Position Front Axle | 2010-07 - | 70 | 95 | 1248 | MPV |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-04 - 2023-12 | 70 | 95 | 1368 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2011-10 - 2023-12 | 88 | 120 | 1368 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-06 - 2023-12 | 88 | 120 | 1368 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2013-11 - 2023-12 | 55 | 75 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - 2023-12 | 59 | 80 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - 2023-12 | 70 | 95 | 1248 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2011-02 - 2023-12 | 74 | 101 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 77 | 105 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-02 - 2023-12 | 88 | 120 | 1598 | Platform/Chassis |
| FIAT DOBLO Platform/Chassis (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 99 | 135 | 1956 | Platform/Chassis |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 70 | 95 | 1368 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2011-10 - 2023-12 | 88 | 120 | 1368 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 88 | 120 | 1368 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1248 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - 2023-12 | 70 | 95 | 1248 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-03 - 2023-12 | 70 | 95 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - 2023-12 | 74 | 100 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-01 - 2023-12 | 77 | 105 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-03 - 2023-12 | 88 | 120 | 1598 | Bus |
| FIAT DOBLO Kombi (263_) Fitting Position Front Axle | 2010-01 - 2023-12 | 99 | 135 | 1956 | Bus |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 70 | 95 | 1368 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2011-10 - 2023-12 | 88 | 120 | 1368 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-06 - 2023-12 | 88 | 120 | 1368 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2013-11 - 2023-12 | 55 | 75 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - 2023-12 | 59 | 80 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 66 | 90 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - 2023-12 | 70 | 95 | 1248 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-03 - 2023-12 | 70 | 95 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - 2023-12 | 74 | 100 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2010-02 - | 77 | 105 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-02 - 2023-12 | 88 | 120 | 1598 | Box Body/MPV |
| FIAT DOBLO Cargo (263_) Fitting Position Front Axle | 2010-02 - 2023-12 | 99 | 135 | 1956 | Box Body/MPV |
| FIAT FIORINO Box Body/MPV (225_) Construction Year from 201007 Fitting Position Front Axle | 2009-07 - | 70 | 95 | 1248 | Box Body/MPV |
| FIAT PUNTO Hatchback Van (199_) Construction Year from 200910 Fitting Position Front Axle | 2009-03 - | 70 | 95 | 1248 | Hatchback Van |
| FIAT PUNTO EVO Hatchback Van (199_) Fitting Position Front Axle | 2009-03 - 2012-02 | 66 | 90 | 1248 | Hatchback Van |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 70 | 95 | 1368 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 88 | 120 | 1368 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 88 | 120 | 1368 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-03 - | 59 | 80 | 1248 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 66 | 90 | 1248 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - | 70 | 95 | 1248 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 66 | 90 | 1598 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-03 - | 70 | 95 | 1598 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 77 | 105 | 1598 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-03 - | 88 | 120 | 1598 | MPV |
| OPEL COMBO Tour (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 99 | 135 | 1956 | MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 70 | 95 | 1368 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 88 | 120 | 1368 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 88 | 120 | 1368 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) Construction Year from 201503 for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 59 | 80 | 1248 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 66 | 90 | 1248 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2016-03 - | 70 | 95 | 1248 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 66 | 90 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 74 | 101 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 77 | 105 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2015-04 - | 88 | 120 | 1598 | Box Body/MPV |
| OPEL COMBO Box Body/MPV (X12) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2012-02 - | 99 | 135 | 1956 | Box Body/MPV |
13.0460-3864.2
Data sheet
- Article Status
- Orderable
- Car Brand
- Abarth
Fiat
Opel - Trade Number
- 603864
- Brake System
- Bosch
- Country Of Origin
- Czechia
- Wear Indicator
- Electronic
Included - Additional Info
- with accessories
with brake caliper screws - Width
- 136,8
- Height
- 57,4
- Thickness
- 19,6
- Number of Bolts/Screws
- 2
- Number of Wear Indicators
- 2 Per Axle
- Warning Indicator Length
- 198 mm
Specific References
- EAN13
- 4006633385725
- MPN
- 1304603864202
ATE 13.0460-3864.2
(130460-38642)
- Width [mm]: 136,8
- Height [mm]: 57,4
- Thickness [mm]: 19,6
- Wear Warning Contact: incl. wear warning contact
- Brake System: Bosch
- Trade Number: 603864
