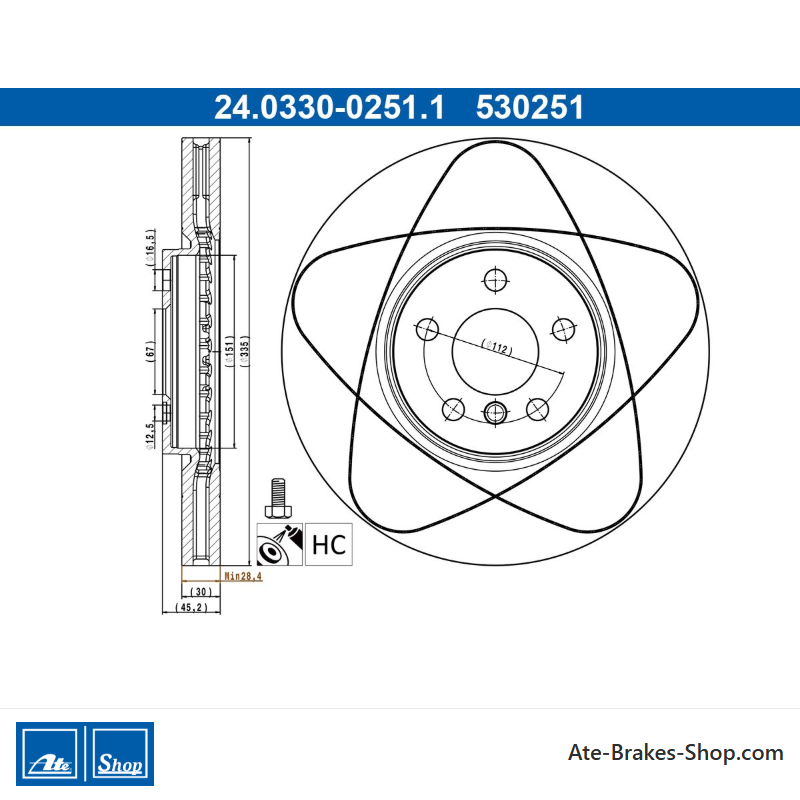

ATE Original Power Brake Disk (24033002511) for Mini
€264.99
(tax incl.)
€219.00 tax excl.
Part-number:
ATE 24.0330-0251.1
(240330-02511)
- Outer Diameter [mm]: 335,0
- Inner Diameter [mm]: 151,0
- Brake Disc Thickness [mm]: 30,0
- Number of Bolt Holes: 5
- Trade Number: 530251
Logistical information:
- Ean Code: 4006633502924
- Weight: 11.15kg
Specification of ATE 24.0330-0251.1 / 240330-02511 / 24033002511:
| OE Number | Reference info |
| MINI 34 11 6 865 711 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34116865711 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34 10 6 881 045 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34106881045 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MINI MINI (F55) Construction Year from 201509 Fitting Position Front Axle | 2014-07 - | 155 | 211 | 1998 | Hatchback |
| MINI MINI (F56) Construction Year from 201503 Fitting Position Front Axle | 2013-12 - | 155 | 211 | 1998 | Hatchback |
| MINI MINI (F56) Fitting Position Front Axle | 2015-03 - | 170 | 231 | 1998 | Hatchback |
| MINI MINI Convertible (F57) Construction Year from 201603 Fitting Position Front Axle | 2015-11 - | 155 | 211 | 1998 | Convertible |
| MINI MINI Convertible (F57) Fitting Position Front Axle | 2016-03 - | 170 | 231 | 1998 | Convertible |
| MINI MINI COUNTRYMAN (F60) Fitting Position Front Axle | 2017-03 - 2019-06 | 170 | 231 | 1998 | Estate |
| MINI MINI CLUBMAN (F54) Fitting Position Front Axle | 2016-11 - 2019-06 | 170 | 231 | 1998 | Estate |
24.0330-0251.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Mini
- Trade Number
- 530251
- Country Of Origin
- Germany
- Additional Info
- with bolts/screws
- Height
- 45,2
- Outer Diameter [mm]
- 335,0
- Brake Disc Thickness [mm]
- 30,0
- Brake Disc Type
- Vented
- Processing
- High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 112,0
- Centering Diameter [mm]
- 67,0
- Inner Diameter [mm]
- 151,0
- Bore Diameter [mm]
- 16,5
- Minimum Thickness [mm]
- 28,4
Specific References
- EAN13
- 4006633502924
- MPN
- 2403300251102
