ATE Original 2 Pieces Brake Disk (24010901421) for Daihatsu, Toyota
€94.38
(tax incl.)
€78.00 tax excl.
Part-number:
ATE 24.0109-0142.1
(240109-01421)
- Outer Diameter [mm]: 278,0
- Inner Diameter [mm]: 147,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 409142
Logistical information:
- Ean Code: 4006633306652
- Weight: 6.83kg
Specification of ATE 24.0109-0142.1 / 240109-01421 / 24010901421:
| OE Number | Reference info |
| DAIHATSU 42431-0D060 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-0D060 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DAIHATSU CHARADE VIII Construction Year to 201301 Fitting Position Rear Axle | 2011-05 - | 73 | 99 | 1329 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country France Fitting Position Rear Axle | 2005-08 - 2011-12 | 51 | 69 | 998 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country France Fitting Position Rear Axle | 2006-01 - 2011-12 | 51 | 69 | 998 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country France Fitting Position Rear Axle | 2005-08 - 2010-11 | 64 | 87 | 1298 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country France Fitting Position Rear Axle | 2010-07 - 2011-05 | 73 | 99 | 1329 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country France Fitting Position Rear Axle | 2008-11 - 2011-12 | 74 | 100 | 1329 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country France Fitting Position Rear Axle | 2005-08 - 2012-12 | 66 | 90 | 1364 | Hatchback |
| TOYOTA YARIS (_P13_) Vehicle Production Country France Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2010-12 - 2020-06 | 51 | 69 | 998 | Hatchback |
| TOYOTA YARIS (_P13_) Fitting Position Rear Axle | 2018-06 - 2020-06 | 53 | 72 | 998 | Hatchback |
| TOYOTA YARIS (_P13_) Vehicle Production Country France Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2011-09 - 2017-03 | 73 | 99 | 1329 | Hatchback |
| TOYOTA YARIS (_P13_) Fitting Position Rear Axle | 2017-03 - 2020-06 | 82 | 112 | 1496 | Hatchback |
| TOYOTA YARIS (_P13_) Fitting Position Rear Axle | 2015-04 - 2017-03 | 74 | 101 | 1497 | Hatchback |
| TOYOTA YARIS (_P13_) Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2012-03 - 2020-06 | 74 | 101 | 1497 | Hatchback |
| TOYOTA YARIS (_P13_) Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2011-09 - 2018-05 | 66 | 90 | 1364 | Hatchback |
| TOYOTA YARIS (_P13_) Fitting Position Rear Axle | 2017-09 - 2020-06 | 156 | 212 | 1798 | Hatchback |
| TOYOTA YARIS Hatchback Van (_P13_) Vehicle Production Country France Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2014-07 - 2020-06 | 51 | 69 | 998 | Hatchback Van |
| TOYOTA YARIS Hatchback Van (_P13_) Fitting Position Rear Axle | 2018-06 - 2020-06 | 53 | 72 | 998 | Hatchback Van |
| TOYOTA YARIS Hatchback Van (_P13_) Vehicle Production Country France Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2012-10 - 2017-03 | 73 | 99 | 1329 | Hatchback Van |
| TOYOTA YARIS Hatchback Van (_P13_) Fitting Position Rear Axle | 2017-03 - 2020-06 | 82 | 111 | 1496 | Hatchback Van |
| TOYOTA YARIS Hatchback Van (_P13_) Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle | 2015-04 - 2020-06 | 74 | 101 | 1497 | Hatchback Van |
| TOYOTA YARIS Hatchback Van (_P13_) Fitting Position Rear Axle | 2014-07 - 2018-05 | 66 | 90 | 1364 | Hatchback Van |
24.0109-0142.1

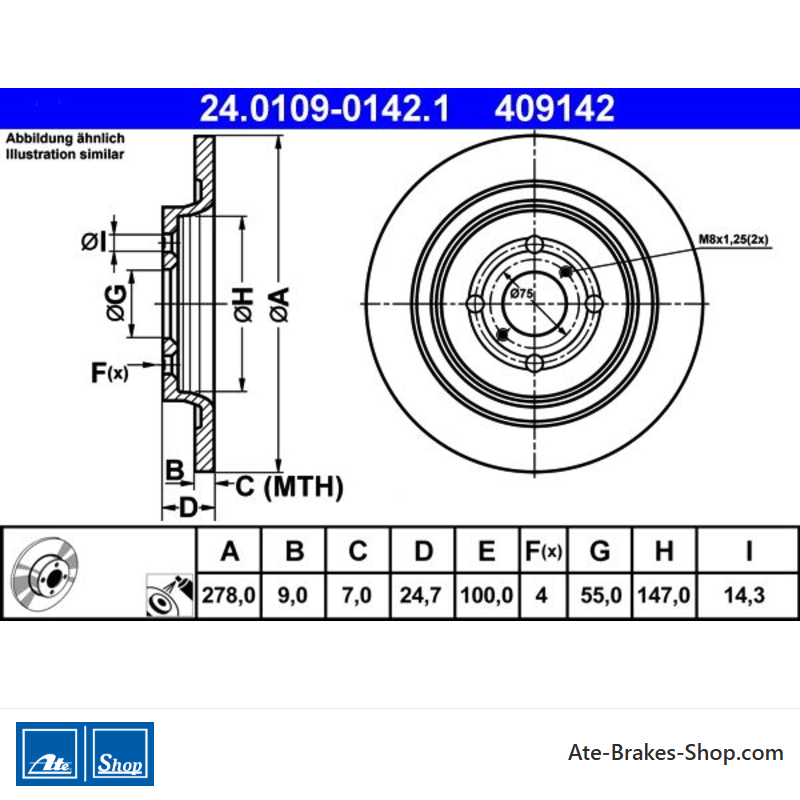

Data sheet
- Article Status
- Orderable
- Car Brand
- Daihatsu
Toyota - Trade Number
- 409142
- Country Of Origin
- Czechia
- Height
- 24,7
- Outer Diameter [mm]
- 278,0
- Brake Disc Thickness [mm]
- 9,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 147,0
- Bore Diameter [mm]
- 14,3
- Minimum Thickness [mm]
- 7,0
Specific References
- EAN13
- 4006633306652
- MPN
- 2401090142102
ATE 24.0109-0142.1
(240109-01421)
- Outer Diameter [mm]: 278,0
- Inner Diameter [mm]: 147,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 409142
