ATE Original 2 Pieces Brake Disk (24010901601) for Suzuki
€79.86
(tax incl.)
€66.00 tax excl.
Part-number:
ATE 24.0109-0160.1
(240109-01601)
- Outer Diameter [mm]: 278,0
- Inner Diameter [mm]: 169,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 409160
Logistical information:
- Ean Code: 4006633338776
- Weight: 8.62kg

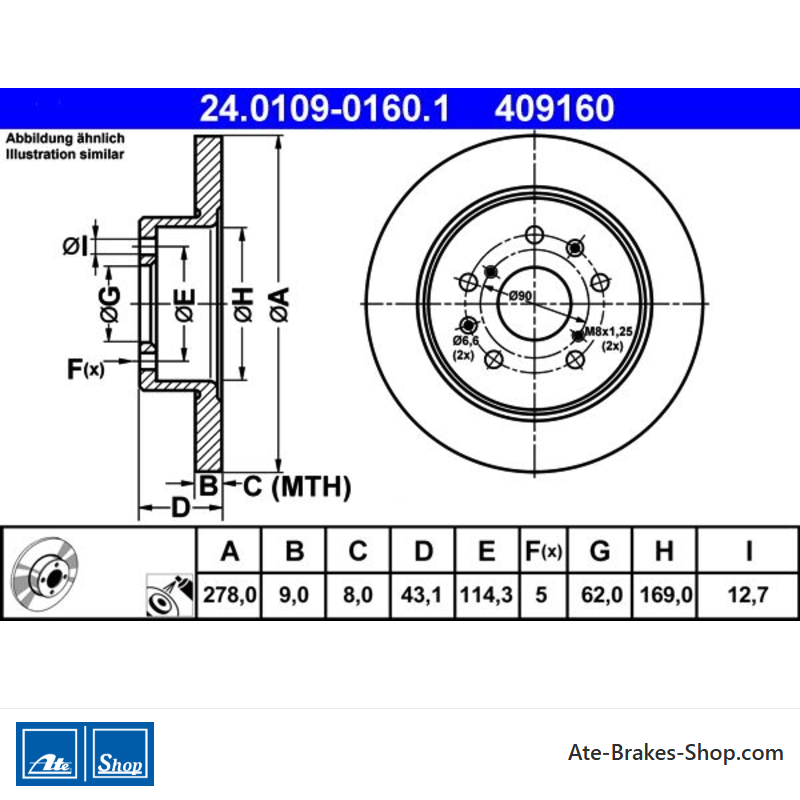

Specification of ATE 24.0109-0160.1 / 240109-01601 / 24010901601:
| OE Number | Reference info |
| SUZUKI 55611-80J10 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SWIFT III (MZ, EZ) Fitting Position Rear Axle Vehicle Production Country Hungary Vehicle Identification Number (VIN) to JSAEZC31S00100000 | 2006-05 - 2015-12 | 92 | 125 | 1586 | Hatchback |
24.0109-0160.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 409160
- Country Of Origin
- Italy
- Height
- 43,1
- Outer Diameter [mm]
- 278,0
- Brake Disc Thickness [mm]
- 9,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 62,0
- Inner Diameter [mm]
- 169,0
- Bore Diameter [mm]
- 12,7
- Minimum Thickness [mm]
- 8,0
Specific References
- EAN13
- 4006633338776
- MPN
- 2401090160102
ATE 24.0109-0160.1
(240109-01601)
- Outer Diameter [mm]: 278,0
- Inner Diameter [mm]: 169,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 409160
