ATE Original 2 Pieces Brake Disk (24010901701) for Toyota
€90.75
(tax incl.)
€75.00 tax excl.
Part-number:
ATE 24.0109-0170.1
(240109-01701)
- Outer Diameter [mm]: 259,0
- Inner Diameter [mm]: 156,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 409170
Logistical information:
- Ean Code: 4006633378598
- Weight: 8.42kg
Specification of ATE 24.0109-0170.1 / 240109-01701 / 24010901701:
| OE Number | Reference info |
| TOYOTA 42431-52150 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA URBAN CRUISER (_P1_) Construction Year from 201004 Fitting Position Rear Axle | 2009-01 - 2016-03 | 73 | 99 | 1329 | Hatchback |
| TOYOTA URBAN CRUISER (_P1_) Fitting Position Rear Axle | 2009-04 - 2016-03 | 74 | 101 | 1329 | Hatchback |
| TOYOTA URBAN CRUISER (_P1_) Construction Year from 200904 Fitting Position Rear Axle | 2009-01 - 2014-04 | 66 | 90 | 1364 | Hatchback |

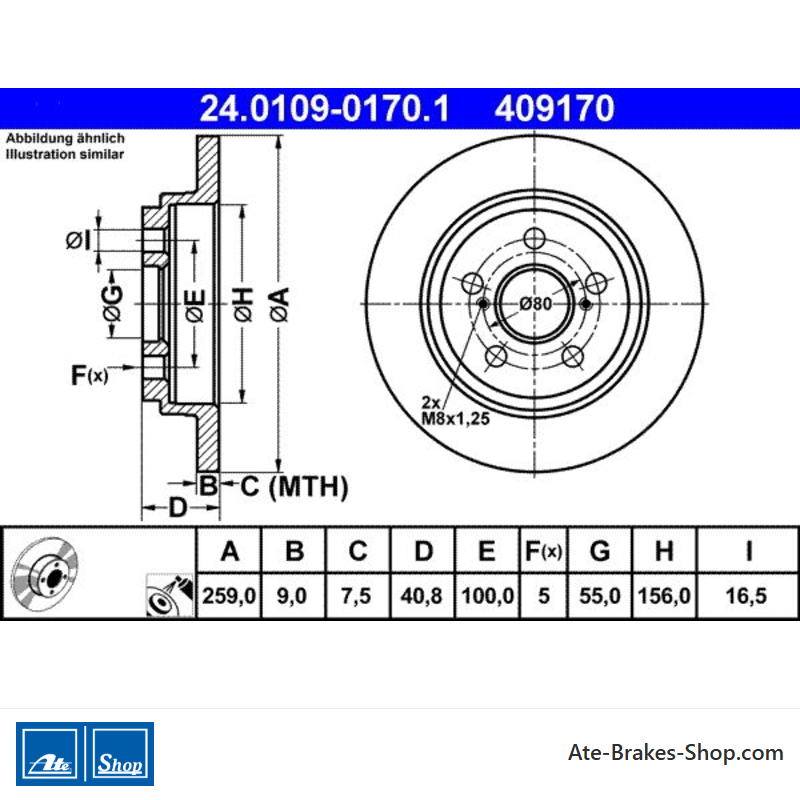

24.0109-0170.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Toyota
- Trade Number
- 409170
- Country Of Origin
- Czechia
- Height
- 40,8
- Outer Diameter [mm]
- 259,0
- Brake Disc Thickness [mm]
- 9,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 156,0
- Bore Diameter [mm]
- 16,5
- Minimum Thickness [mm]
- 7,5
Specific References
- EAN13
- 4006633378598
- MPN
- 2401090170102
ATE 24.0109-0170.1
(240109-01701)
- Outer Diameter [mm]: 259,0
- Inner Diameter [mm]: 156,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 409170
