ATE Original 2 Pieces Brake Disk (24010901751) for Suzuki
€98.01
(tax incl.)
€81.00 tax excl.
Part-number:
ATE 24.0109-0175.1
(240109-01751)
- Outer Diameter [mm]: 259,0
- Inner Diameter [mm]: 150,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 409175
Logistical information:
- Ean Code: 4006633407076
- Weight: 7.14kg

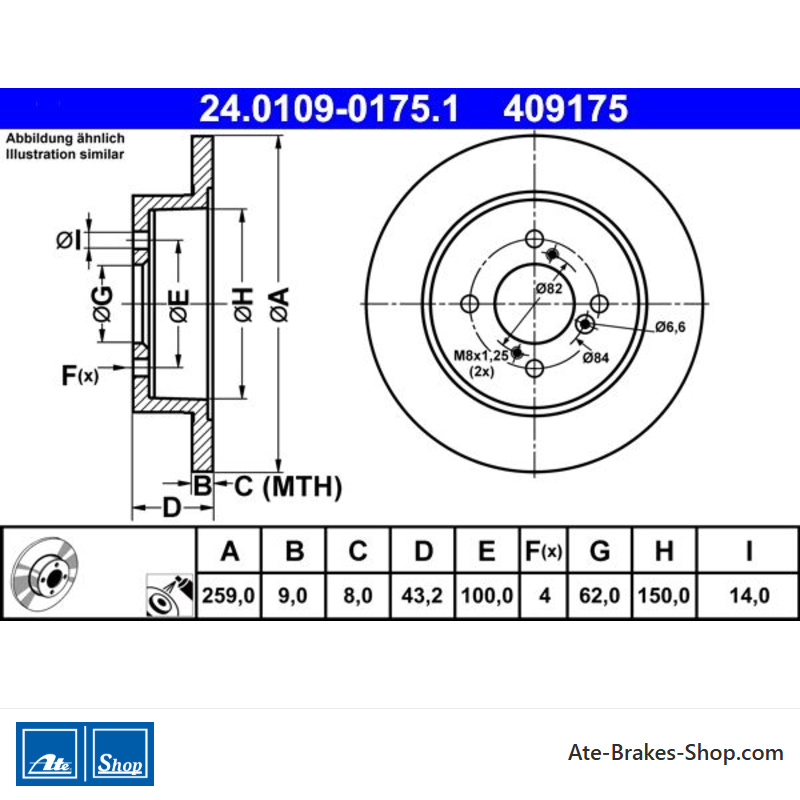

Specification of ATE 24.0109-0175.1 / 240109-01751 / 24010901751:
| OE Number | Reference info |
| SUZUKI 55611-68L00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Rear Axle | 2010-10 - 2017-04 | 69 | 94 | 1242 | Hatchback |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Rear Axle | 2010-10 - 2017-04 | 55 | 75 | 1248 | Hatchback |
24.0109-0175.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 409175
- Country Of Origin
- Czechia
- Height
- 43,2
- Outer Diameter [mm]
- 259,0
- Brake Disc Thickness [mm]
- 9,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 62,0
- Inner Diameter [mm]
- 150,0
- Bore Diameter [mm]
- 14,0
- Minimum Thickness [mm]
- 8,0
Specific References
- EAN13
- 4006633407076
- MPN
- 2401090175102
ATE 24.0109-0175.1
(240109-01751)
- Outer Diameter [mm]: 259,0
- Inner Diameter [mm]: 150,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 409175
