2 pieces of ATE original Brake Disk (24011001161) for Audi
€65.34
(tax incl.)
€54.00 tax excl.
Part-number:
ATE 24.0110-0116.1
(240110-01161)
- Outer Diameter [mm]: 245,0
- Inner Diameter [mm]: 135,5
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 410116
Logistical information:
- Ean Code: 4006633105859
- Weight: 7.09kg
Specification of ATE 24.0110-0116.1 / 240110-01161 / 24011001161:
| OE Number | Reference info |
| VAG 443 615 601 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 443615601B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Rear Axle | 1985-08 - 1986-07 | 88 | 120 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Construction Year from 198410 Fitting Position Rear Axle | 1984-08 - 1988-12 | 101 | 137 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Rear Axle | 1986-08 - 1990-11 | 121 | 165 | 2226 | Saloon |
| AUDI 100 C3 Saloon (443, 444) Fitting Position Rear Axle | 1986-08 - 1990-11 | 100 | 136 | 2309 | Saloon |
| AUDI 100 C3 Avant (445, 446) Payload not for increased payload Fitting Position Rear Axle | 1986-08 - 1990-07 | 65 | 88 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload not for increased payload Fitting Position Rear Axle | 1984-10 - 1988-07 | 66 | 90 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload not for increased payload Fitting Position Rear Axle | 1985-08 - 1990-10 | 66 | 90 | 1781 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload not for increased payload Fitting Position Rear Axle | 1985-08 - 1986-07 | 88 | 120 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Construction Year from 198410 Payload not for increased payload Fitting Position Rear Axle | 1984-08 - 1988-12 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload not for increased payload Fitting Position Rear Axle | 1989-06 - 1990-11 | 101 | 137 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload not for increased payload Fitting Position Rear Axle | 1986-08 - 1990-11 | 121 | 165 | 2226 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload not for increased payload Fitting Position Rear Axle | 1990-01 - 1990-11 | 98 | 133 | 2309 | Estate |
| AUDI 100 C3 Avant (445, 446) Payload not for increased payload Fitting Position Rear Axle | 1986-08 - 1990-11 | 100 | 136 | 2309 | Estate |
| AUDI 200 C3 Saloon (447, 448) Construction Year from 198411 Fitting Position Rear Axle | 1983-08 - 1986-09 | 134 | 182 | 2144 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Construction Year to 198712 Fitting Position Rear Axle | 1985-01 - 1991-12 | 121 | 165 | 2226 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Construction Year from 198801 Construction Year to 199011 Fitting Position Rear Axle | 1985-01 - 1991-12 | 121 | 165 | 2226 | Saloon |
| AUDI 200 C3 Saloon (447, 448) Fitting Position Rear Axle | 1988-02 - 1990-11 | 147 | 200 | 2226 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Fitting Position Rear Axle | 1995-07 - 1996-03 | 120 | 163 | 2771 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Special Purpose Vehicle not for special-purpose vehicles Fitting Position Rear Axle | 1995-07 - 1996-03 | 120 | 163 | 2771 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year from 199406 Fitting Position Rear Axle | 1994-03 - 1996-03 | 128 | 174 | 2771 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year from 199406 Special Purpose Vehicle not for special-purpose vehicles Fitting Position Rear Axle | 1994-03 - 1996-03 | 128 | 174 | 2771 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year from 199706 Construction Year to 199809 Fitting Position Rear Axle | 1997-01 - 2000-04 | 110 | 150 | 2496 | Saloon |
| AUDI A8 D2 (4D2, 4D8) Construction Year to 199809 Special Purpose Vehicle not for special-purpose vehicles Fitting Position Rear Axle | 1997-07 - 2000-04 | 110 | 150 | 2496 | Saloon |

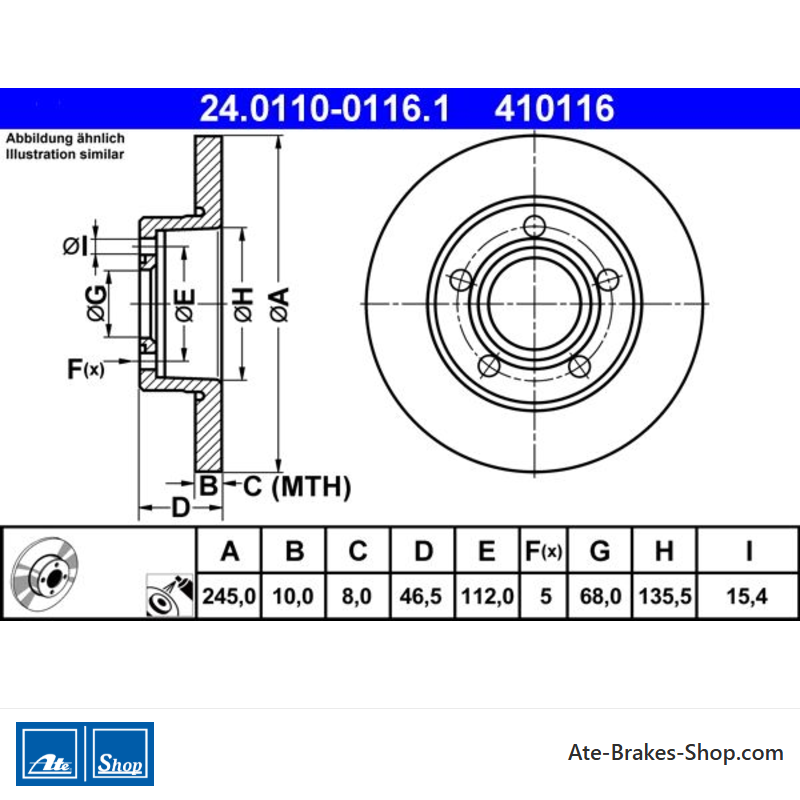

24.0110-0116.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Audi
- Trade Number
- 410116
- Country Of Origin
- China
- Height
- 46,5
- Outer Diameter [mm]
- 245,0
- Brake Disc Thickness [mm]
- 10,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 112,0
- Centering Diameter [mm]
- 68,0
- Inner Diameter [mm]
- 135,5
- Bore Diameter [mm]
- 15,4
- Minimum Thickness [mm]
- 8,0
Specific References
- EAN13
- 4006633105859
- MPN
- 2401100116101
ATE 24.0110-0116.1
(240110-01161)
- Outer Diameter [mm]: 245,0
- Inner Diameter [mm]: 135,5
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 410116
