2 pieces of ATE original Brake Disk (24011003461) for Toyota
€101.64
(tax incl.)
€84.00 tax excl.
Part-number:
ATE 24.0110-0346.1
(240110-03461)
- Outer Diameter [mm]: 298,0
- Inner Diameter [mm]: 190,0
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 410346
Logistical information:
- Ean Code: 4006633332538
- Weight: 10.69kg

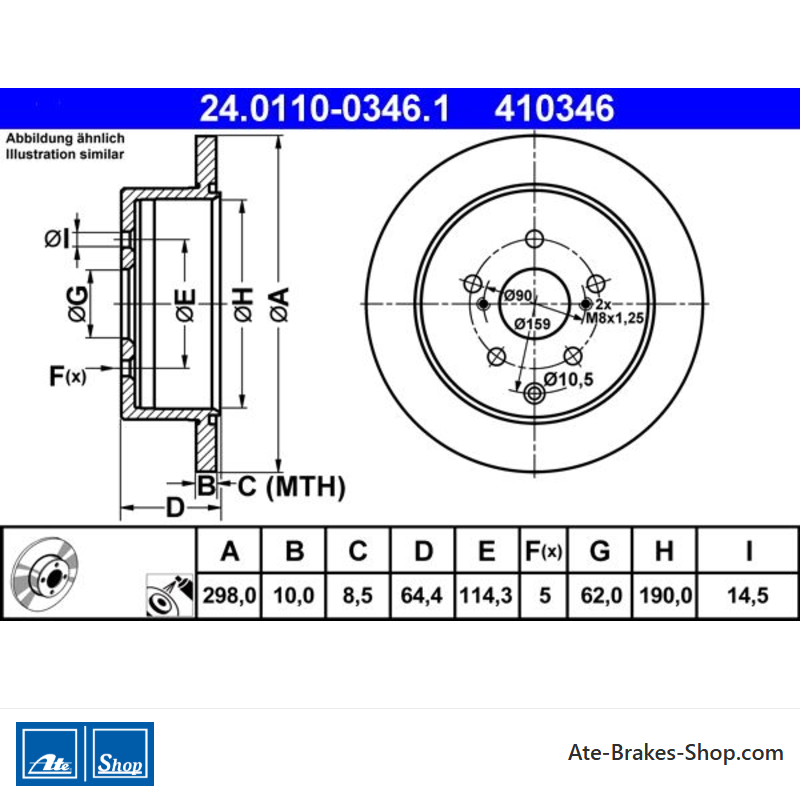

Specification of ATE 24.0110-0346.1 / 240110-03461 / 24011003461:
| OE Number | Reference info |
| TOYOTA 42431-28130 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA PREVIA III (_R2_, _R5_) Fitting Position Rear Axle | 2005-10 - | 125 | 170 | 2362 | MPV |
24.0110-0346.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Toyota
- Trade Number
- 410346
- Country Of Origin
- EU
- Height
- 64,4
- Outer Diameter [mm]
- 298,0
- Brake Disc Thickness [mm]
- 10,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 62,0
- Inner Diameter [mm]
- 190,0
- Bore Diameter [mm]
- 14,5
- Minimum Thickness [mm]
- 8,5
Specific References
- EAN13
- 4006633332538
- MPN
- 2401100346102
ATE 24.0110-0346.1
(240110-03461)
- Outer Diameter [mm]: 298,0
- Inner Diameter [mm]: 190,0
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 410346
