2 pieces of ATE original Brake Disk (24011003591) for Alfa Romeo
€108.90
(tax incl.)
€90.00 tax excl.
Part-number:
ATE 24.0110-0359.1
(240110-03591)
- Outer Diameter [mm]: 264,0
- Inner Diameter [mm]: 136,8
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 410359
Logistical information:
- Ean Code: 4006633370356
- Weight: 7.40kg

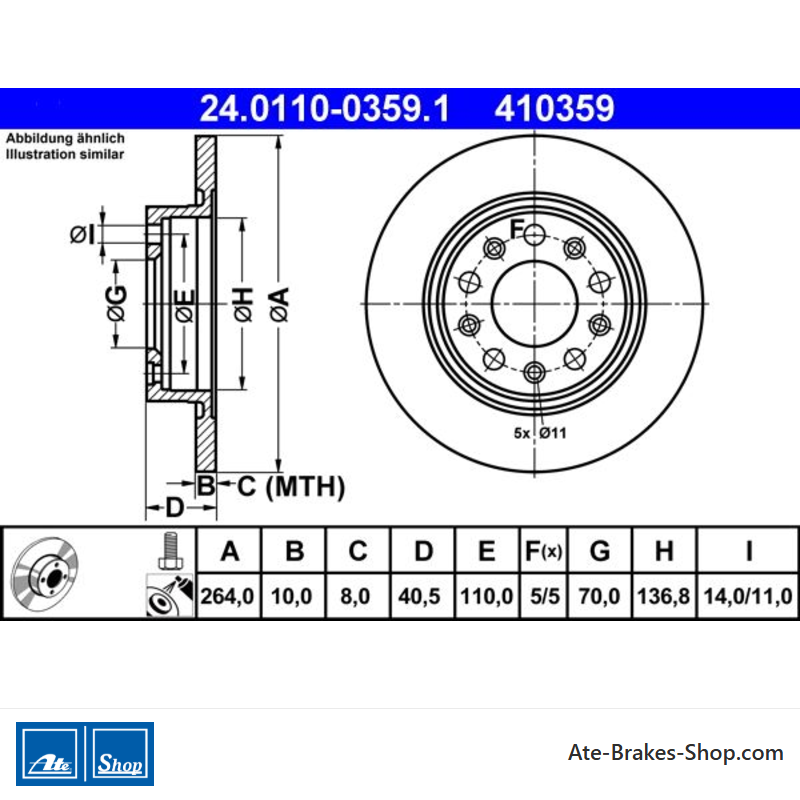

Specification of ATE 24.0110-0359.1 / 240110-03591 / 24011003591:
| OE Number | Reference info |
| FIAT 51806283 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51815313 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2011-04 - 2017-02 | 77 | 105 | 1368 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2010-04 - 2016-02 | 85 | 116 | 1368 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2010-04 - 2020-12 | 88 | 120 | 1368 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2011-12 - 2017-02 | 88 | 120 | 1368 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2014-09 - 2018-10 | 110 | 150 | 1368 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2010-04 - 2018-10 | 125 | 170 | 1368 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2010-04 - 2016-02 | 77 | 105 | 1598 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2015-09 - 2018-10 | 85 | 116 | 1598 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2015-02 - 2020-12 | 88 | 120 | 1598 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2010-04 - 2016-02 | 100 | 136 | 1956 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2010-04 - 2020-12 | 103 | 140 | 1956 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2013-08 - 2018-10 | 110 | 150 | 1956 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2010-04 - 2018-10 | 120 | 163 | 1956 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2010-04 - 2020-12 | 125 | 170 | 1956 | Hatchback |
| ALFA ROMEO GIULIETTA (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2013-11 - 2018-10 | 129 | 175 | 1956 | Hatchback |
| ALFA ROMEO GIULIETTA Hatchback Van (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2011-04 - 2016-02 | 88 | 120 | 1368 | Hatchback Van |
| ALFA ROMEO GIULIETTA Hatchback Van (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2011-04 - 2020-12 | 125 | 170 | 1368 | Hatchback Van |
| ALFA ROMEO GIULIETTA Hatchback Van (940_) Braking System not for vehicles with reinforced brakes Fitting Position Rear Axle | 2015-05 - 2020-12 | 129 | 175 | 1956 | Hatchback Van |
24.0110-0359.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Alfa Romeo
- Trade Number
- 410359
- Country Of Origin
- Czechia
- Additional Info
- with bolts/screws
- Height
- 40,5
- Outer Diameter [mm]
- 264,0
- Brake Disc Thickness [mm]
- 10,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 110,0
- Centering Diameter [mm]
- 70,0
- Inner Diameter [mm]
- 136,8
- Minimum Thickness [mm]
- 8,0
Specific References
- EAN13
- 4006633370356
- MPN
- 2401100359102
ATE 24.0110-0359.1
(240110-03591)
- Outer Diameter [mm]: 264,0
- Inner Diameter [mm]: 136,8
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 410359
