2 pieces of ATE original Brake Disk (24011003971) for Peugeot
€72.60
(tax incl.)
€60.00 tax excl.
Part-number:
ATE 24.0110-0397.1
(240110-03971)
- Outer Diameter [mm]: 249,0
- Inner Diameter [mm]: 133,0
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 410397
Logistical information:
- Ean Code: 4006633423267
- Weight: 6.70kg

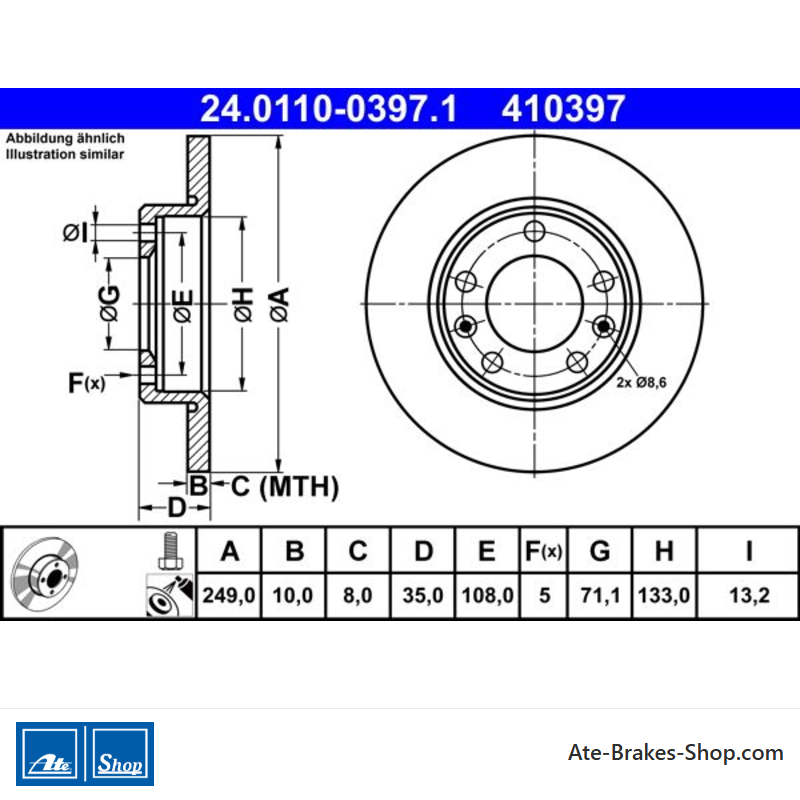

Specification of ATE 24.0110-0397.1 / 240110-03971 / 24011003971:
| OE Number | Reference info |
| PEUGEOT 16 107 619 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 1610761980 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Construction Year from 201408 Fitting Position Rear Axle | 2014-03 - 2021-06 | 81 | 110 | 1199 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2014-03 - 2021-06 | 96 | 131 | 1199 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2014-03 - 2021-06 | 85 | 115 | 1587 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2014-03 - 2021-06 | 92 | 125 | 1598 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2014-03 - 2021-06 | 110 | 150 | 1598 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2014-03 - 2021-06 | 115 | 156 | 1598 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2015-02 - 2021-06 | 151 | 205 | 1598 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle Vehicle Equipment for vehicles without electric parking brake | 2018-01 - 2021-06 | 165 | 225 | 1598 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2018-04 - 2021-06 | 75 | 102 | 1499 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2017-06 - 2021-06 | 96 | 131 | 1499 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2014-03 - 2021-06 | 68 | 92 | 1560 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2014-04 - 2021-06 | 73 | 99 | 1560 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2014-03 - 2021-06 | 85 | 115 | 1560 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2014-03 - 2021-06 | 88 | 120 | 1560 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2014-03 - 2021-06 | 110 | 150 | 1997 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle Vehicle Equipment for vehicles without electric parking brake | 2017-06 - 2021-06 | 130 | 177 | 1997 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Rear Axle | 2014-06 - 2021-06 | 133 | 181 | 1997 | Estate |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2013-09 - 2021-06 | 60 | 82 | 1199 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2013-11 - 2021-06 | 81 | 110 | 1199 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2013-11 - 2021-06 | 96 | 131 | 1199 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2013-09 - 2021-06 | 92 | 125 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2014-03 - 2021-06 | 110 | 150 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2013-09 - 2021-06 | 115 | 156 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2014-06 - 2021-06 | 120 | 163 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2014-06 - 2021-06 | 151 | 205 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle Vehicle Equipment for vehicles without electric parking brake | 2018-01 - 2021-06 | 165 | 225 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2015-08 - 2021-06 | 184 | 250 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle Vehicle Equipment for vehicles without electric parking brake | 2018-07 - 2021-06 | 193 | 263 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2015-06 - 2021-06 | 200 | 272 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2018-05 - 2021-06 | 75 | 102 | 1499 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2017-06 - 2021-06 | 96 | 131 | 1499 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2013-09 - 2021-06 | 68 | 92 | 1560 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2014-04 - 2021-06 | 73 | 99 | 1560 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2013-09 - 2021-06 | 85 | 115 | 1560 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2013-11 - 2021-06 | 88 | 120 | 1560 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2013-11 - 2021-06 | 110 | 150 | 1997 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle Vehicle Equipment for vehicles without electric parking brake | 2017-06 - 2021-06 | 130 | 177 | 1997 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Rear Axle | 2014-06 - 2021-06 | 133 | 181 | 1997 | Hatchback |
| PEUGEOT 308 SW II (LC_) Fitting Position Rear Axle | 2017-06 - 2021-06 | 96 | 131 | 1499 | Estate Van |
| PEUGEOT 308 Hatchback Van (LB_) Fitting Position Rear Axle | 2017-06 - 2021-06 | 96 | 131 | 1499 | Hatchback Van |
24.0110-0397.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Peugeot
- Trade Number
- 410397
- Country Of Origin
- Czechia
- Additional Info
- with bolts/screws
- Height
- 35,0
- Outer Diameter [mm]
- 249,0
- Brake Disc Thickness [mm]
- 10,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 108,0
- Centering Diameter [mm]
- 71,1
- Inner Diameter [mm]
- 133,0
- Bore Diameter [mm]
- 13,2
- Minimum Thickness [mm]
- 8,0
Specific References
- EAN13
- 4006633423267
- MPN
- 2401100397102
ATE 24.0110-0397.1
(240110-03971)
- Outer Diameter [mm]: 249,0
- Inner Diameter [mm]: 133,0
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 410397
