2 pieces of ATE original Brake Disk (24011004071) for Mazda
€112.53
(tax incl.)
€93.00 tax excl.
Part-number:
ATE 24.0110-0407.1
(240110-04071)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 125,0
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 410407
Logistical information:
- Ean Code: 4006633459310
- Weight: 7.94kg

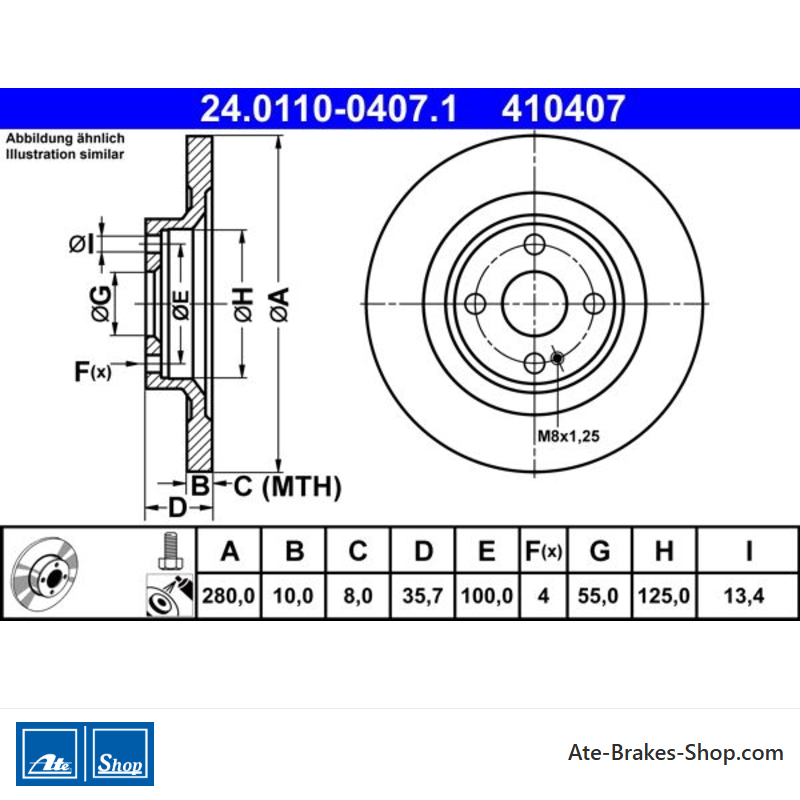

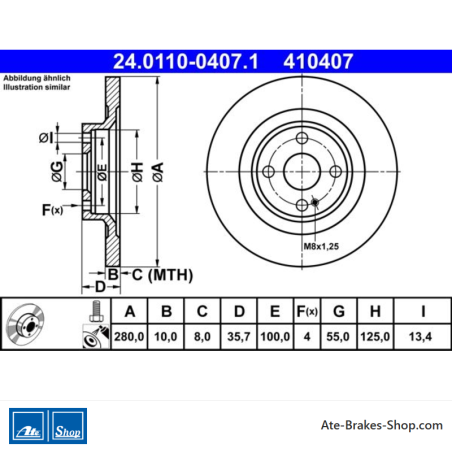

Specification of ATE 24.0110-0407.1 / 240110-04071 / 24011004071:
| OE Number | Reference info |
| MAZDA N251-26-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA MX-5 RF Targa (ND) Fitting Position Rear Axle | 2016-12 - 2018-05 | 118 | 160 | 1998 | Targa |
| MAZDA MX-5 RF Targa (ND) Fitting Position Rear Axle | 2018-05 - 2026-04 | 135 | 184 | 1998 | Targa |
| MAZDA MX-5 IV (ND__) Fitting Position Rear Axle | 2015-06 - | 118 | 160 | 1998 | Convertible |
| MAZDA MX-5 IV (ND__) Fitting Position Rear Axle | 2018-05 - 2026-04 | 135 | 184 | 1998 | Convertible |
24.0110-0407.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Mazda
- Trade Number
- 410407
- Country Of Origin
- Czechia
- Height
- 35,7
- Outer Diameter [mm]
- 280,0
- Brake Disc Thickness [mm]
- 10,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 125,0
- Bore Diameter [mm]
- 13,4
- Minimum Thickness [mm]
- 8,0
Specific References
- EAN13
- 4006633459310
- MPN
- 2401100407102
ATE 24.0110-0407.1
(240110-04071)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 125,0
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 410407
