2 pieces of ATE original Brake Disk (24011004171) for Abarth, Fiat
€108.90
(tax incl.)
€90.00 tax excl.
Part-number:
ATE 24.0110-0417.1
(240110-04171)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 189,0
- Brake Disc Thickness [mm]: 9,5
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 410417
Logistical information:
- Ean Code: 4006633479462
- Weight: 7.96kg

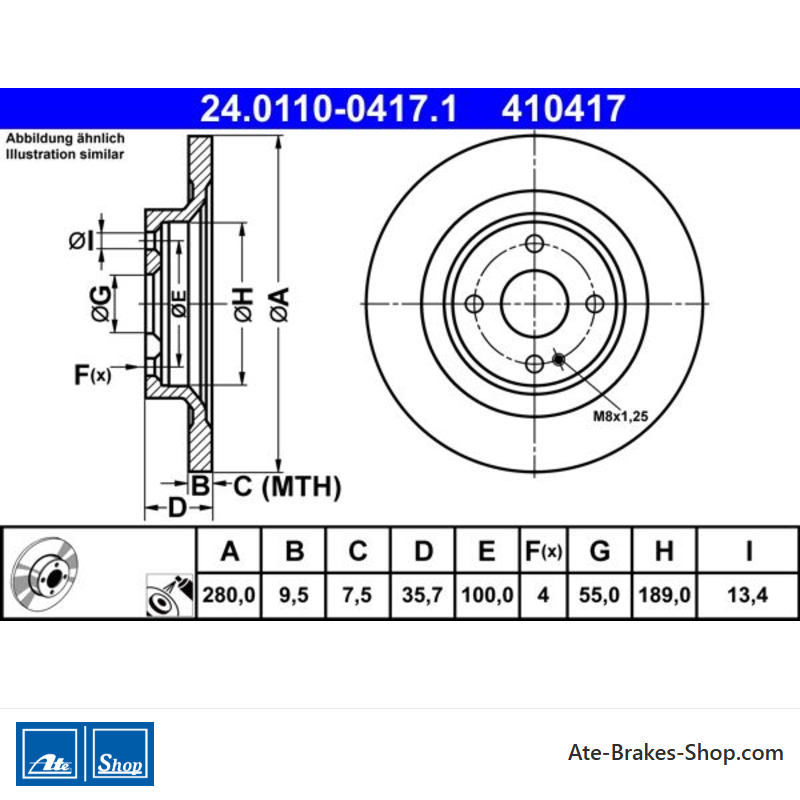

Specification of ATE 24.0110-0417.1 / 240110-04171 / 24011004171:
| OE Number | Reference info |
| FIAT 6000612254 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ABARTH 124 Spider Fitting Position Rear Axle | 2016-03 - | 125 | 170 | 1368 | Convertible |
| FIAT 124 Spider (348_) Fitting Position Rear Axle | 2016-03 - | 103 | 140 | 1368 | Convertible |
24.0110-0417.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Abarth
Fiat - Trade Number
- 410417
- Country Of Origin
- Czechia
- Height
- 35,7
- Outer Diameter [mm]
- 280,0
- Brake Disc Thickness [mm]
- 9,5
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 189,0
- Bore Diameter [mm]
- 13,4
- Minimum Thickness [mm]
- 7,5
Specific References
- EAN13
- 4006633479462
- MPN
- 2401100417102
ATE 24.0110-0417.1
(240110-04171)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 189,0
- Brake Disc Thickness [mm]: 9,5
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 410417
