2 pieces of ATE original Brake Disk (24011101541) for Ford
€101.64
(tax incl.)
€84.00 tax excl.
Part-number:
ATE 24.0111-0154.1
(240111-01541)
- Outer Diameter [mm]: 278,0
- Inner Diameter [mm]: 146,0
- Brake Disc Thickness [mm]: 11,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 411154
Logistical information:
- Ean Code: 4006633209342
- Weight: 10.22kg

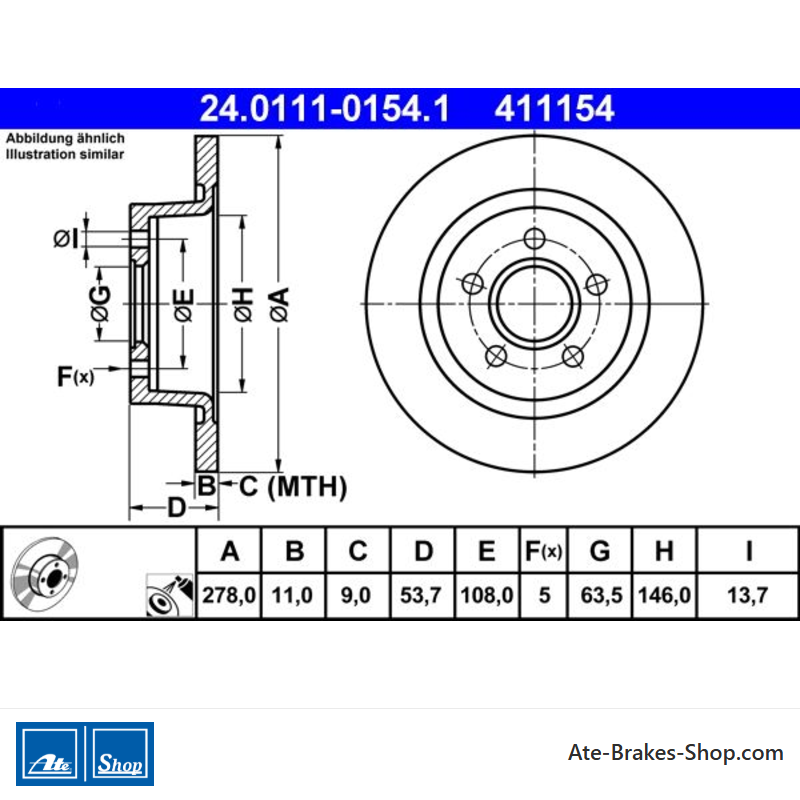

Specification of ATE 24.0111-0154.1 / 240111-01541 / 24011101541:
| OE Number | Reference info |
| FORD 4367108 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4475316 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4367107 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4457989 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2T14-2A315-AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2T14-2A315-BB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1362868 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2T14-2A315-BC | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1362867 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2T14-2A315-AC | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TOURNEO CONNECT Construction Year to 201308 Fitting Position Rear Axle | 2002-06 - 2013-12 | 85 | 116 | 1796 | MPV |
| FORD TOURNEO CONNECT Construction Year to 201308 Fitting Position Rear Axle | 2002-06 - 2013-12 | 55 | 75 | 1753 | MPV |
| FORD TOURNEO CONNECT Construction Year to 201308 Fitting Position Rear Axle | 2002-06 - 2013-12 | 66 | 90 | 1753 | MPV |
| FORD TOURNEO CONNECT Construction Year to 201308 Fitting Position Rear Axle | 2006-08 - 2013-12 | 81 | 110 | 1753 | MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2002-06 - 2013-12 | 85 | 116 | 1796 | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2002-06 - 2013-12 | 85 | 116 | 1796 | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2002-06 - 2013-12 | 55 | 75 | 1753 | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2002-06 - 2013-12 | 66 | 90 | 1753 | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2006-08 - 2013-12 | 81 | 110 | 1753 | Box Body/MPV |
24.0111-0154.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Ford
- Trade Number
- 411154
- Country Of Origin
- Italy
- Height
- 53,7
- Outer Diameter [mm]
- 278,0
- Brake Disc Thickness [mm]
- 11,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 108,0
- Centering Diameter [mm]
- 63,5
- Inner Diameter [mm]
- 146,0
- Bore Diameter [mm]
- 13,7
- Minimum Thickness [mm]
- 9,0
Specific References
- EAN13
- 4006633209342
- MPN
- 2401110154102
ATE 24.0111-0154.1
(240111-01541)
- Outer Diameter [mm]: 278,0
- Inner Diameter [mm]: 146,0
- Brake Disc Thickness [mm]: 11,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 411154
