ATE Original 2 Pieces Brake Disk (24011201731) for Suzuki
€65.34
(tax incl.)
€54.00 tax excl.
Part-number:
ATE 24.0112-0173.1
(240112-01731)
- Outer Diameter [mm]: 232,0
- Inner Diameter [mm]: 137,0
- Brake Disc Thickness [mm]: 12,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 412173
Logistical information:
- Ean Code: 4006633302777
- Weight: 7.51kg
Specification of ATE 24.0112-0173.1 / 240112-01731 / 24011201731:
| OE Number | Reference info |
| SUZUKI 55311-60B22 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55311-60B21 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Construction Year to 200412 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1995-01 - 2005-12 | 39 | 53 | 993 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Construction Year from 199611 Fitting Position Front Axle | 1989-03 - 2001-05 | 50 | 68 | 1298 | Hatchback |
| SUZUKI SWIFT II Hatchback (EA, MA) Fitting Position Front Axle | 2001-06 - 2003-12 | 63 | 86 | 1298 | Hatchback |

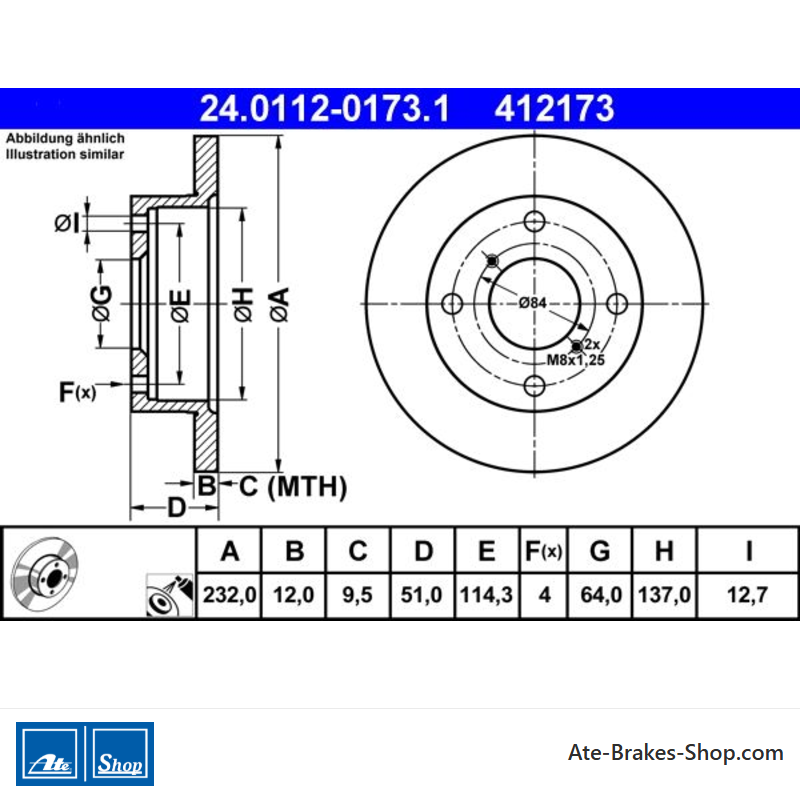

24.0112-0173.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 412173
- Country Of Origin
- Czechia
- Height
- 51,0
- Outer Diameter [mm]
- 232,0
- Brake Disc Thickness [mm]
- 12,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 64,0
- Inner Diameter [mm]
- 137,0
- Bore Diameter [mm]
- 12,7
- Minimum Thickness [mm]
- 9,5
Specific References
- EAN13
- 4006633302777
- MPN
- 2401120173102
ATE 24.0112-0173.1
(240112-01731)
- Outer Diameter [mm]: 232,0
- Inner Diameter [mm]: 137,0
- Brake Disc Thickness [mm]: 12,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 412173
