2 pieces of ATE original Brake Disk (24011401001) for Ford
€76.23
(tax incl.)
€63.00 tax excl.
Part-number:
ATE 24.0114-0100.1
(240114-01001)
- Outer Diameter [mm]: 270,0
- Inner Diameter [mm]: 120,0
- Brake Disc Thickness [mm]: 14,3
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 414100
Logistical information:
- Ean Code: 4006633080378
- Weight: 10.59kg
Specification of ATE 24.0114-0100.1 / 240114-01001 / 24011401001:
| OE Number | Reference info |
| FORD 5022674 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 5022677 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6041696 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1539549 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 6166056 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (72E, 71E) Construction Year from 197311 Construction Year to 197712 Fitting Position Front Axle | 1971-04 - 1978-03 | 48 | 65 | 1699 | Van |
| FORD TRANSIT Bus (72E, 73E) Construction Year from 197311 Construction Year to 197712 Fitting Position Front Axle | 1971-04 - 1978-03 | 48 | 65 | 1699 | Bus |
| FORD TRANSIT Bus (72E, 73E) Construction Year from 197311 Construction Year to 197712 Fitting Position Front Axle | 1971-11 - 1978-09 | 46 | 63 | 2358 | Bus |
| FORD TRANSIT Platform/Chassis (74E) Construction Year from 197311 Construction Year to 197712 Fitting Position Front Axle | 1971-04 - 1978-03 | 48 | 65 | 1699 | Platform/Chassis |
| FORD TRANSIT Van (V_ _) Construction Year from 197801 Construction Year to 198003 Fitting Position Front Axle | 1977-11 - 1986-10 | 48 | 65 | 1593 | Van |
| FORD TRANSIT Van (V_ _) Construction Year from 197801 Construction Year to 198003 Fitting Position Front Axle | 1977-11 - 1982-07 | 43 | 59 | 1993 | Van |
| FORD TRANSIT Van (V_ _) Construction Year from 197801 Construction Year to 198003 Fitting Position Front Axle | 1977-11 - 1986-10 | 55 | 75 | 1993 | Van |
| FORD TRANSIT Van (V_ _) Construction Year from 197801 Construction Year to 198003 Fitting Position Front Axle | 1977-11 - 1986-10 | 57 | 78 | 1993 | Van |
| FORD TRANSIT Van (V_ _) Construction Year to 198003 Fitting Position Front Axle | 1978-01 - 1985-12 | 46 | 62 | 2358 | Van |
| FORD TRANSIT Platform/Chassis (V_ _) Construction Year from 197801 Construction Year to 198003 Fitting Position Front Axle | 1977-11 - 1986-10 | 48 | 65 | 1593 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (V_ _) Construction Year from 197801 Construction Year to 198003 Fitting Position Front Axle | 1977-11 - 1982-07 | 43 | 59 | 1993 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (V_ _) Construction Year from 197801 Construction Year to 198003 Fitting Position Front Axle | 1977-11 - 1986-10 | 57 | 78 | 1993 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (V_ _) Construction Year to 198003 Fitting Position Front Axle | 1978-01 - 1985-12 | 46 | 62 | 2358 | Platform/Chassis |
| FORD TRANSIT Bus (V_ _) Construction Year from 197801 Construction Year to 198003 Fitting Position Front Axle | 1977-12 - 1986-10 | 48 | 65 | 1593 | Bus |
| FORD TRANSIT Bus (V_ _) Construction Year from 197801 Construction Year to 198003 Fitting Position Front Axle | 1977-12 - 1982-07 | 43 | 59 | 1993 | Bus |
| FORD TRANSIT Bus (V_ _) Construction Year from 197801 Construction Year to 198003 Fitting Position Front Axle | 1977-11 - 1986-10 | 55 | 75 | 1993 | Bus |
| FORD TRANSIT Bus (V_ _) Construction Year from 197801 Construction Year to 198003 Fitting Position Front Axle | 1977-11 - 1986-10 | 57 | 78 | 1993 | Bus |
| FORD TRANSIT Bus (V_ _) Construction Year to 198003 Fitting Position Front Axle | 1978-01 - 1985-12 | 46 | 62 | 2358 | Bus |
| FORD TRANSIT Van (T_ _) Vehicle type 100L/130/160 Vehicle type 190/190A Fitting Position Front Axle | 1985-09 - 1992-09 | 46 | 63 | 1593 | Van |
| FORD TRANSIT Van (T_ _) Vehicle type 100L/130/160 Vehicle type 190/190A Fitting Position Front Axle | 1985-09 - 1992-09 | 57 | 78 | 1994 | Van |
| FORD TRANSIT Van (T_ _) Vehicle type 100L/130/160 Vehicle type 190/190A Fitting Position Front Axle | 1986-01 - 1991-09 | 50 | 68 | 2496 | Van |
| FORD TRANSIT Van (T_ _) Vehicle type 100L/130/160 Vehicle type 190/190A Fitting Position Front Axle | 1988-10 - 1991-09 | 52 | 71 | 2496 | Van |
| FORD TRANSIT Platform/Chassis (T_ _) Vehicle type 100L/130/160 Vehicle type 190/190A Fitting Position Front Axle | 1985-11 - 1992-09 | 57 | 78 | 1993 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (T_ _) Vehicle type 100L/130/160 Vehicle type 190/190A Fitting Position Front Axle | 1986-01 - 1992-09 | 57 | 78 | 1994 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (T_ _) Vehicle type 100L/130/160 Vehicle type 190/190A Fitting Position Front Axle | 1986-01 - 1989-01 | 50 | 68 | 2496 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (T_ _) Vehicle type 100L/130/160 Vehicle type 190/190A Fitting Position Front Axle | 1988-09 - 1992-09 | 52 | 71 | 2496 | Platform/Chassis |
| FORD TRANSIT Bus (T_ _) Vehicle type 100L/130/160 Vehicle type 190/190A Fitting Position Front Axle | 1985-12 - 1989-01 | 46 | 63 | 1593 | Bus |
| FORD TRANSIT Bus (T_ _) Vehicle type 100L/130/160 Vehicle type 190/190A Fitting Position Front Axle | 1985-11 - 1992-09 | 57 | 78 | 1994 | Bus |
| FORD TRANSIT Bus (T_ _) Vehicle type 100L/130/160 Vehicle type 190/190A Fitting Position Front Axle | 1985-12 - 1992-09 | 57 | 78 | 1993 | Bus |
| FORD TRANSIT Bus (T_ _) Vehicle type 100L/130/160 Vehicle type 190/190A Fitting Position Front Axle | 1985-12 - 1989-01 | 50 | 68 | 2496 | Bus |
| FORD TRANSIT Bus (T_ _) Vehicle type 100L/130/160 Vehicle type 190/190A Fitting Position Front Axle | 1988-09 - 1992-09 | 52 | 71 | 2496 | Bus |

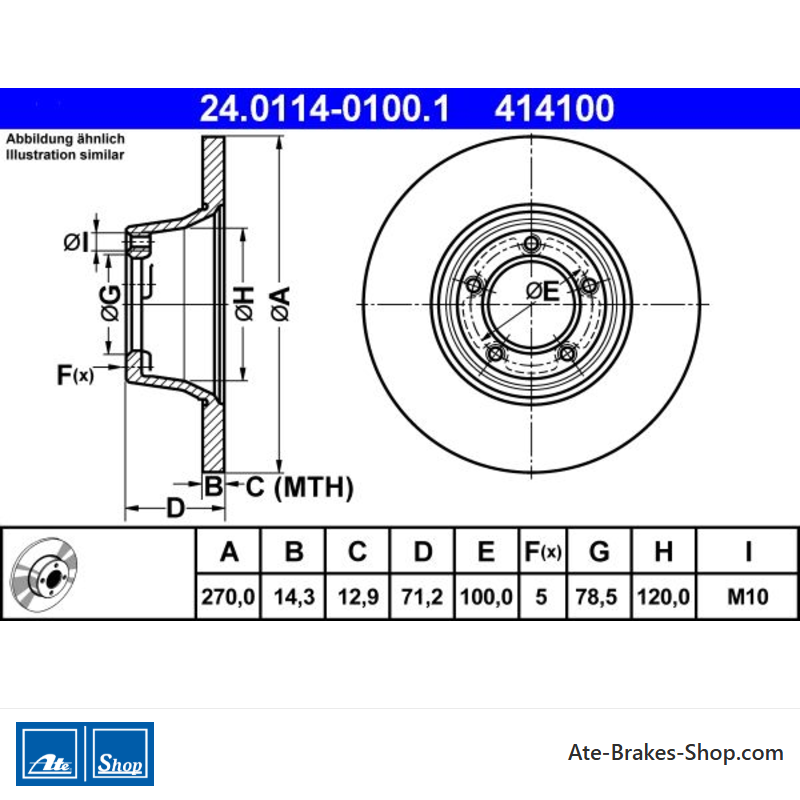

24.0114-0100.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Ford
- Trade Number
- 414100
- Country Of Origin
- China
- Height
- 71,2
- Outer Diameter [mm]
- 270,0
- Brake Disc Thickness [mm]
- 14,3
- Brake Disc Type
- solid
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 78,5
- Inner Diameter [mm]
- 120,0
- Thread Size
- M10
- Minimum Thickness [mm]
- 12,9
Specific References
- EAN13
- 4006633080378
- MPN
- 2401140100101
ATE 24.0114-0100.1
(240114-01001)
- Outer Diameter [mm]: 270,0
- Inner Diameter [mm]: 120,0
- Brake Disc Thickness [mm]: 14,3
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 414100
