2 pieces of ATE original Brake Disk (24011401071) for Peugeot
€72.60
(tax incl.)
€60.00 tax excl.
Part-number:
ATE 24.0114-0107.1
(240114-01071)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 150,0
- Brake Disc Thickness [mm]: 14,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 414107
Logistical information:
- Ean Code: 4006633290982
- Weight: 12.52kg
Specification of ATE 24.0114-0107.1 / 240114-01071 / 24011401071:
| OE Number | Reference info |
| PEUGEOT 4246 B8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246B8 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246 69 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424669 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| PEUGEOT J7 Van Construction Year from 197309 Fitting Position Front Axle | 1968-08 - 1980-03 | 44 | 60 | 1618 | Van |
| PEUGEOT J7 Van Construction Year from 197309 Fitting Position Front Axle | 1968-08 - 1980-03 | 50 | 68 | 1618 | Van |
| PEUGEOT J7 Van Construction Year from 197309 Fitting Position Front Axle | 1970-07 - 1980-03 | 48 | 65 | 1796 | Van |
| PEUGEOT J7 Van Construction Year from 197309 Fitting Position Front Axle | 1968-08 - 1977-07 | 42 | 57 | 2112 | Van |
| PEUGEOT J7 Van Fitting Position Front Axle | 1977-07 - 1980-03 | 49 | 67 | 2304 | Van |
| PEUGEOT J7 Platform/Chassis Construction Year from 197309 Fitting Position Front Axle | 1970-07 - 1980-03 | 44 | 60 | 1618 | Platform/Chassis |
| PEUGEOT J7 Platform/Chassis Construction Year from 197309 Fitting Position Front Axle | 1970-07 - 1980-03 | 48 | 65 | 1796 | Platform/Chassis |
| PEUGEOT J7 Platform/Chassis Construction Year from 197309 Fitting Position Front Axle | 1968-08 - 1977-07 | 42 | 57 | 2112 | Platform/Chassis |
| PEUGEOT J7 Platform/Chassis Fitting Position Front Axle | 1977-07 - 1980-03 | 49 | 67 | 2304 | Platform/Chassis |
| PEUGEOT J7 Bus Construction Year from 197309 Fitting Position Front Axle | 1970-07 - 1980-03 | 44 | 60 | 1618 | Bus |
| PEUGEOT J7 Bus Construction Year from 197309 Fitting Position Front Axle | 1970-07 - 1980-03 | 48 | 65 | 1796 | Bus |
| PEUGEOT J7 Bus Construction Year from 197309 Fitting Position Front Axle | 1968-08 - 1977-07 | 42 | 57 | 2112 | Bus |
| PEUGEOT J7 Bus Fitting Position Front Axle | 1977-07 - 1980-03 | 49 | 67 | 2304 | Bus |
| PEUGEOT J9 Van Fitting Position Front Axle | 1980-03 - 1987-06 | 44 | 60 | 1618 | Van |
| PEUGEOT J9 Van Fitting Position Front Axle | 1980-03 - 1987-06 | 57 | 78 | 1971 | Van |
| PEUGEOT J9 Van Fitting Position Front Axle | 1980-03 - 1987-06 | 41 | 56 | 2112 | Van |
| PEUGEOT J9 Van Fitting Position Front Axle | 1980-03 - 1982-07 | 49 | 67 | 2304 | Van |
| PEUGEOT J9 Van Construction Year from 198210 Fitting Position Front Axle | 1982-07 - 1987-06 | 53 | 72 | 2497 | Van |
| PEUGEOT J9 Platform/Chassis Fitting Position Front Axle | 1980-03 - 1987-06 | 57 | 78 | 1971 | Platform/Chassis |
| PEUGEOT J9 Platform/Chassis Fitting Position Front Axle | 1980-03 - 1982-07 | 49 | 67 | 2304 | Platform/Chassis |
| PEUGEOT J9 Platform/Chassis Construction Year from 198210 Fitting Position Front Axle | 1982-07 - 1987-06 | 53 | 72 | 2497 | Platform/Chassis |
| PEUGEOT J9 Bus Fitting Position Front Axle | 1980-03 - 1987-06 | 57 | 78 | 1971 | Bus |
| PEUGEOT J9 Bus Fitting Position Front Axle | 1980-03 - 1982-07 | 49 | 67 | 2304 | Bus |
| PEUGEOT J9 Bus Construction Year from 198210 Fitting Position Front Axle | 1982-08 - 1987-06 | 53 | 72 | 2497 | Bus |

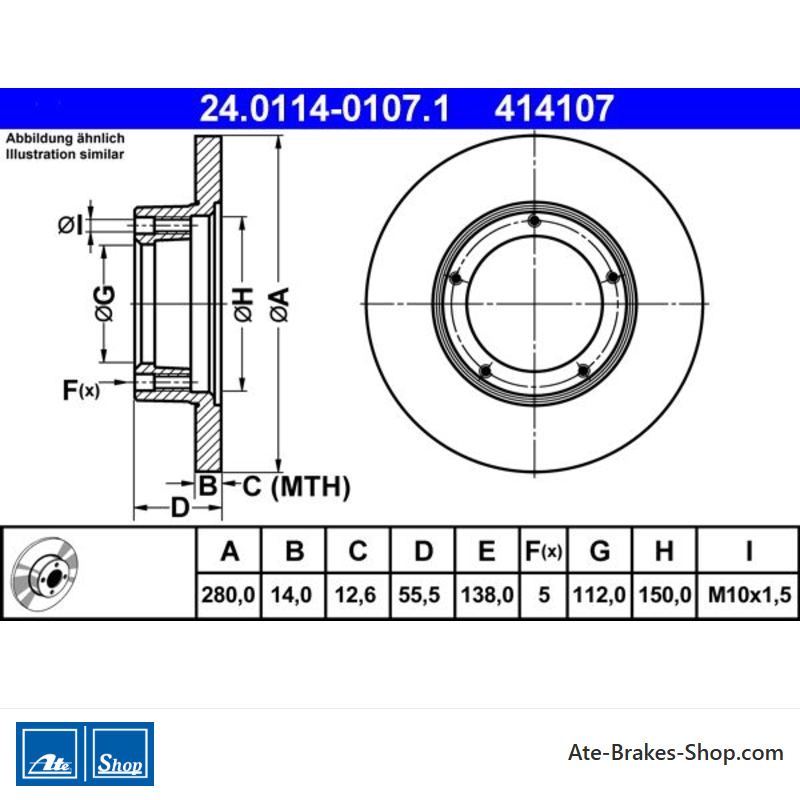

24.0114-0107.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Peugeot
- Trade Number
- 414107
- Country Of Origin
- Italy
- Height
- 55,5
- Outer Diameter [mm]
- 280,0
- Brake Disc Thickness [mm]
- 14,0
- Brake Disc Type
- solid
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 138,0
- Centering Diameter [mm]
- 112,0
- Inner Diameter [mm]
- 150,0
- Thread Size
- M10x1,5
- Minimum Thickness [mm]
- 12,6
Specific References
- EAN13
- 4006633290982
- MPN
- 2401140107101
ATE 24.0114-0107.1
(240114-01071)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 150,0
- Brake Disc Thickness [mm]: 14,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 414107
