ATE Original 2 Pieces Brake Disk (24011701091) for Suzuki
search
  • ATE Original 2 Pieces Brake Disk (24011701091) for Suzuki
  • ATE Original 2 Pieces Brake Disk (24011701091) for Suzuki
  • ATE Original 2 Pieces Brake Disk (24011701091) for Suzuki

2 pieces of ATE original Brake Disk (24011701091) for Suzuki

€94.38 (tax incl.)

€78.00 tax excl.

Part-number:

ATE 24.0117-0109.1
(240117-01091)

  • Outer Diameter [mm]: 287,0
  • Inner Diameter [mm]: 181,7
  • Brake Disc Thickness [mm]: 17,0
  • Number of Bolt Holes: 5
  • 2 pieces of Brake Disc
  • Trade Number: 417109
Logistical information:
108,2Click here for detailed information.
  • Ean Code: 4006633230117
  • Weight: 8.54kg
Quantity

Specification of ATE 24.0117-0109.1 / 240117-01091 / 24011701091:

OE NumberReference info
SUZUKI 55211-65D01Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		1998-03 - 2003-0769941590Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Construction Year to 200411

Vehicle Equipment Line/Trim Level Grand Vitara

Fitting Position Front Axle		2003-09 - 2005-0971971590Closed Off-Road Vehicle
SUZUKI GRAND VITARA I (FT, HT)

Fitting Position Front Axle		1998-03 - 2003-07941281995Closed Off-Road Vehicle
SUZUKI GRAND VITARA I Open Off-Road Vehicle (GT)

Fitting Position Front Axle		1998-03 - 2003-0769941590Open Off-Road Vehicle
SUZUKI GRAND VITARA I Open Off-Road Vehicle (GT)

Fitting Position Front Axle		1998-03 - 2003-07941281995Open Off-Road Vehicle

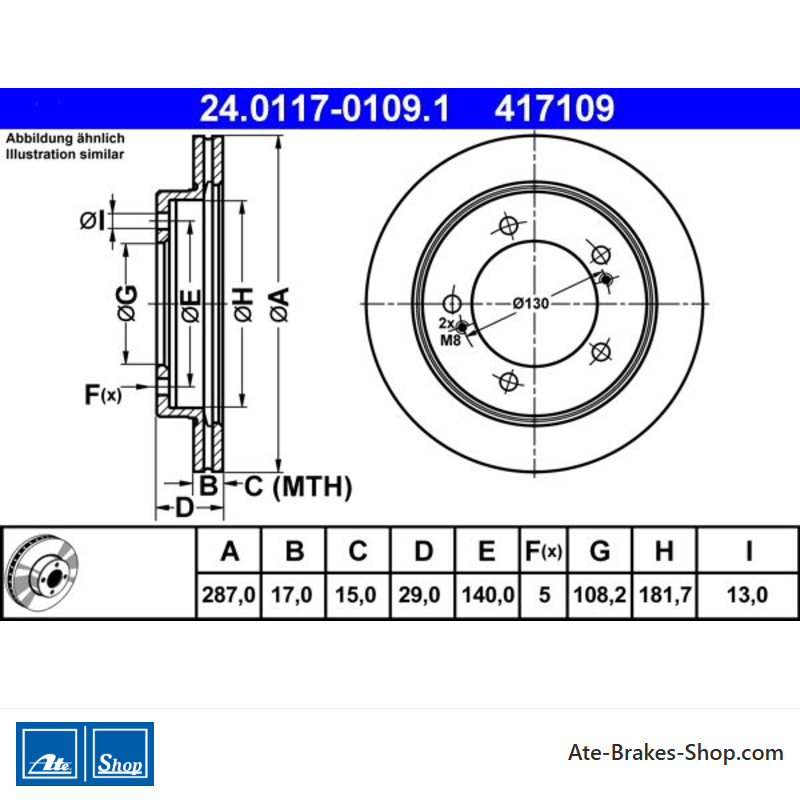

24.0117-0109.1

Data sheet

Article Status
Orderable
Car Brand
Suzuki
Trade Number
417109
Country Of Origin
Italy
Height
29,0
Outer Diameter [mm]
287,0
Brake Disc Thickness [mm]
17,0
Brake Disc Type
Vented
Number of Bolt Holes
5
Bolt Hole Diameter [mm]
140,0
Centering Diameter [mm]
108,2
Inner Diameter [mm]
181,7
Bore Diameter [mm]
13,0
Minimum Thickness [mm]
15,0

Specific References

EAN13
4006633230117
MPN
2401170109102
