2 pieces of ATE original Brake Disk (24011701101) for Citroën, Mitsubishi, Peugeot
€105.27
(tax incl.)
€87.00 tax excl.
Part-number:
ATE 24.0117-0110.1
(240117-01101)
- Outer Diameter [mm]: 257,0
- Inner Diameter [mm]: 123,5
- Brake Disc Thickness [mm]: 17,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 417110
Logistical information:
- Ean Code: 4006633390309
- Weight: 8.32kg
Specification of ATE 24.0117-0110.1 / 240117-01101 / 24011701101:
| OE Number | Reference info |
| CITROËN 4249 L5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249L5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 16 120 907 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 1612090780 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MITSUBISHI 4615A093 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 L5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249L5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 16 120 907 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 1612090780 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN C-ZERO Fitting Position Front Axle | 2010-10 - | 47 | 64 | CC | Hatchback |
| CITROËN C-ZERO Fitting Position Front Axle | 2010-10 - | 35 | 48 | CC | Hatchback |
| CITROËN C-ZERO Fitting Position Front Axle | 2011-01 - | 49 | 67 | CC | Hatchback |
| MITSUBISHI i (HA_) Fitting Position Front Axle | 2009-07 - 2020-05 | 35 | 48 | CC | Hatchback |
| MITSUBISHI i (HA_) Fitting Position Front Axle | 2009-07 - 2020-05 | 47 | 64 | CC | Hatchback |
| MITSUBISHI i (HA_) Fitting Position Front Axle | 2011-02 - 2020-05 | 49 | 67 | CC | Hatchback |
| PEUGEOT ION Fitting Position Front Axle | 2010-11 - | 35 | 48 | CC | Hatchback |
| PEUGEOT ION Fitting Position Front Axle | 2010-11 - | 47 | 64 | CC | Hatchback |
| PEUGEOT ION Fitting Position Front Axle | 2011-01 - | 49 | 67 | CC | Hatchback |

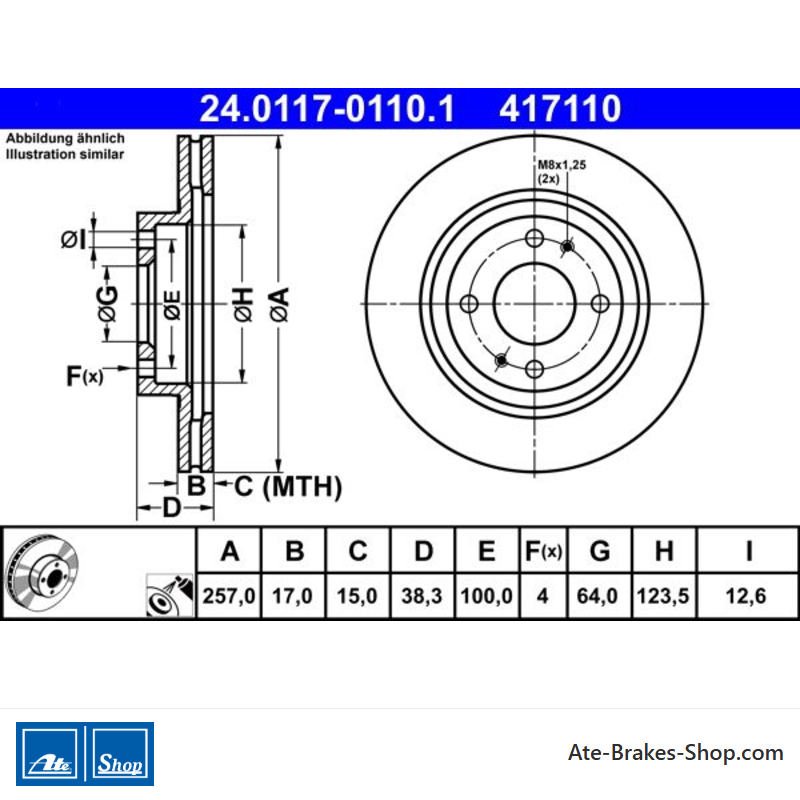

24.0117-0110.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Citroën
Mitsubishi
Peugeot - Trade Number
- 417110
- Country Of Origin
- Italy
- Height
- 38,3
- Outer Diameter [mm]
- 257,0
- Brake Disc Thickness [mm]
- 17,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 64,0
- Inner Diameter [mm]
- 123,5
- Bore Diameter [mm]
- 12,6
- Minimum Thickness [mm]
- 15,0
Specific References
- EAN13
- 4006633390309
- MPN
- 2401170110102
ATE 24.0117-0110.1
(240117-01101)
- Outer Diameter [mm]: 257,0
- Inner Diameter [mm]: 123,5
- Brake Disc Thickness [mm]: 17,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 417110
