ATE Originele 2-delige remschijf (24011701101) voor Citroën, Mitsubishi, Peugeot
€ 105,27
(incl. btw)
€ 87,00 belastingexcl.
Onderdeelnummer:
ATE 24.0117-0110.1
(240117-01101)

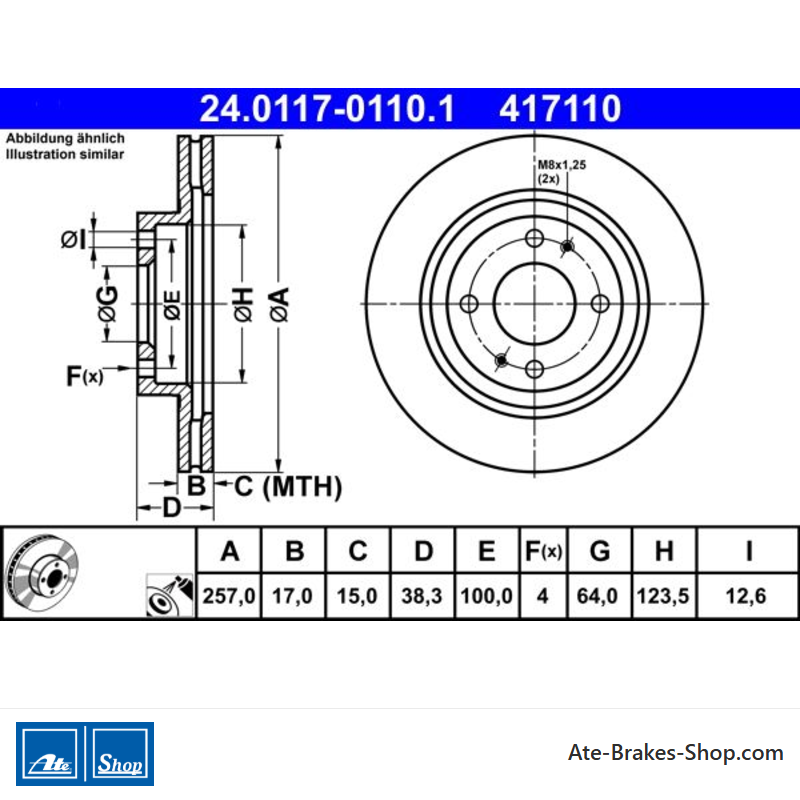

- Buitendiameter [mm]: 257,0
- Binnendiameter [mm]: 123,5
- Remschijfdikte [mm]: 17,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 417110
Logistieke informatie:
- Ean Code: 4006633390309
- Gewicht: 8.32kg
Specification of ATE 24.0117-0110.1 / 240117-01101 / 24011701101:
| OE Number | Reference info |
| CITROËN 4249 L5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249L5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 16 120 907 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 1612090780 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MITSUBISHI 4615A093 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 L5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249L5 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 16 120 907 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 1612090780 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN C-ZERO Fitting Position Front Axle | 2010-10 - | 47 | 64 | CC | Hatchback |
| CITROËN C-ZERO Fitting Position Front Axle | 2010-10 - | 35 | 48 | CC | Hatchback |
| CITROËN C-ZERO Fitting Position Front Axle | 2011-01 - | 49 | 67 | CC | Hatchback |
| MITSUBISHI i (HA_) Fitting Position Front Axle | 2009-07 - 2020-05 | 35 | 48 | CC | Hatchback |
| MITSUBISHI i (HA_) Fitting Position Front Axle | 2009-07 - 2020-05 | 47 | 64 | CC | Hatchback |
| MITSUBISHI i (HA_) Fitting Position Front Axle | 2011-02 - 2020-05 | 49 | 67 | CC | Hatchback |
| PEUGEOT ION Fitting Position Front Axle | 2010-11 - | 35 | 48 | CC | Hatchback |
| PEUGEOT ION Fitting Position Front Axle | 2010-11 - | 47 | 64 | CC | Hatchback |
| PEUGEOT ION Fitting Position Front Axle | 2011-01 - | 49 | 67 | CC | Hatchback |
24.0117-0110.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Citroën
Mitsubishi
Peugeot - Handelsnummer
- 417110
- Land van Herkomst
- Italië
- Hoogte
- 38,3
- Buitendiameter [mm]
- 257,0
- Remschijfdikte [mm]
- 17,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 64,0
- Binnendiameter [mm]
- 123,5
- Bordiameter [mm]
- 12,6
- Minimale dikte [mm]
- 15,0
Specifieke referenties
- ean13
- 4006633390309
- MPN
- 2401170110102
ATE 24.0117-0110.1
(240117-01101)
- Buitendiameter [mm]: 257,0
- Binnendiameter [mm]: 123,5
- Remschijfdikte [mm]: 17,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 417110
