ATE Original 2 Pieces Brake Disk (24012002621) for Suzuki
€72.60
(tax incl.)
€60.00 tax excl.
Part-number:
ATE 24.0120-0262.1
(240120-02621)
- Outer Diameter [mm]: 231,0
- Inner Diameter [mm]: 125,2
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 420262
Logistical information:
- Ean Code: 4006633470025
- Weight: 7.81kg

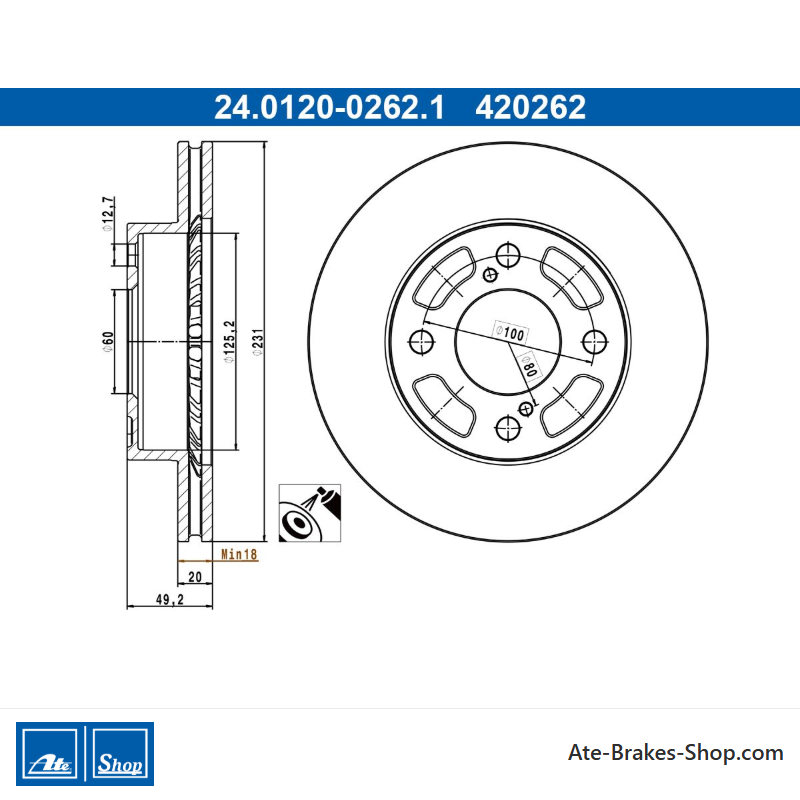

Specification of ATE 24.0120-0262.1 / 240120-02621 / 24012002621:
| OE Number | Reference info |
| SUZUKI 55311-84M00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI CELERIO (LF) Fitting Position Front Axle | 2014-03 - | 50 | 68 | 998 | Hatchback |
24.0120-0262.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 420262
- Country Of Origin
- China
- Height
- 49,2
- Outer Diameter [mm]
- 231,0
- Brake Disc Thickness [mm]
- 20,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 60,0
- Inner Diameter [mm]
- 125,2
- Bore Diameter [mm]
- 12,7
- Minimum Thickness [mm]
- 18,0
Specific References
- EAN13
- 4006633470025
- MPN
- 2401200262102
ATE 24.0120-0262.1
(240120-02621)
- Outer Diameter [mm]: 231,0
- Inner Diameter [mm]: 125,2
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 420262
