ATE Original 2 Pieces Brake Disk (24012002631) for Suzuki
€83.49
(tax incl.)
€69.00 tax excl.
Part-number:
ATE 24.0120-0263.1
(240120-02631)
- Outer Diameter [mm]: 252,0
- Inner Diameter [mm]: 135,1
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 420263
Logistical information:
- Ean Code: 4006633466219
- Weight: 8.82kg
Specification of ATE 24.0120-0263.1 / 240120-02631 / 24012002631:
| OE Number | Reference info |
| SUZUKI 55311-71L00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Front Axle | 2010-10 - 2017-04 | 66 | 90 | 1242 | Hatchback |

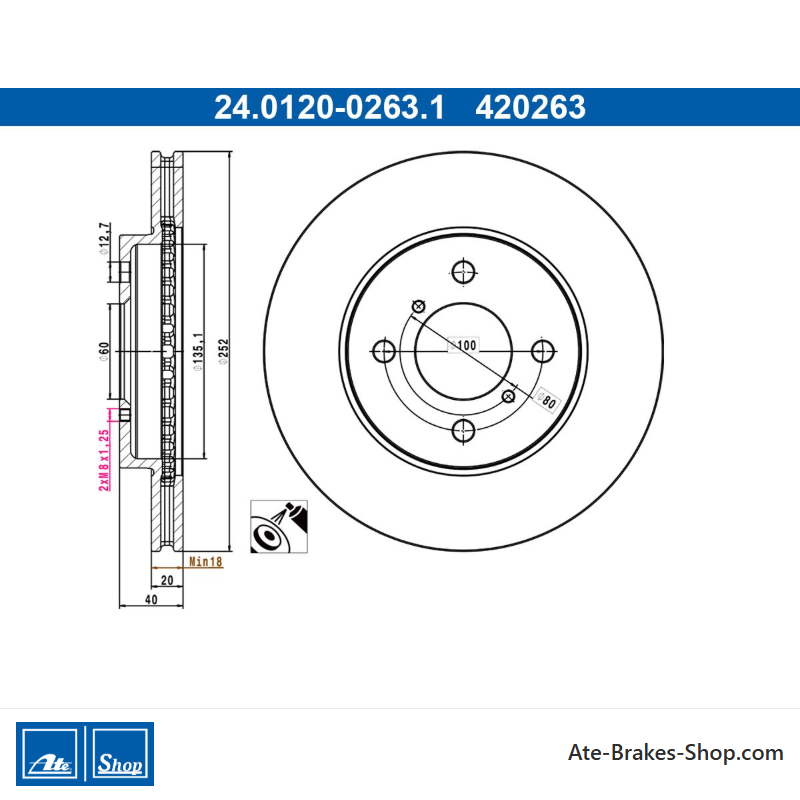

24.0120-0263.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 420263
- Country Of Origin
- China
- Height
- 40,0
- Outer Diameter [mm]
- 252,0
- Brake Disc Thickness [mm]
- 20,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 60,0
- Inner Diameter [mm]
- 135,1
- Bore Diameter [mm]
- 12,7
- Minimum Thickness [mm]
- 18,0
Specific References
- EAN13
- 4006633466219
- MPN
- 2401200263102
ATE 24.0120-0263.1
(240120-02631)
- Outer Diameter [mm]: 252,0
- Inner Diameter [mm]: 135,1
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 420263
