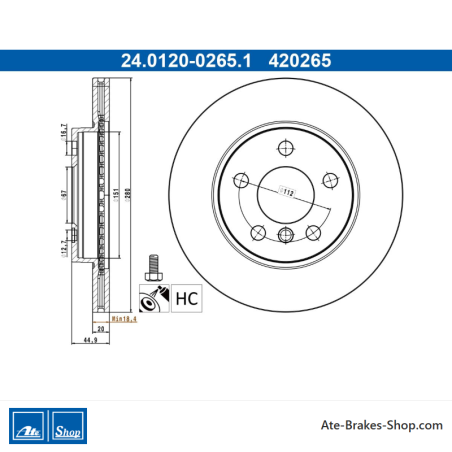

2 pieces of ATE original Brake Disk (24012002651) for BMW
€90.75
(tax incl.)
€75.00 tax excl.
Part-number:
ATE 24.0120-0265.1
(240120-02651)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 151,0
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 420265
Logistical information:
- Ean Code: 4006633507240
- Weight: 10.78kg
Specification of ATE 24.0120-0265.1 / 240120-02651 / 24012002651:
| OE Number | Reference info |
| BMW 34 11 6 866 293 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34116866293 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW i3 (I01) Fitting Position Front Axle | 2013-08 - 2022-07 | 125 | 170 | CC | Hatchback |
| BMW i3 (I01) Fitting Position Front Axle | 2013-08 - 2022-07 | 125 | 170 | 647 | Hatchback |
| BMW i3 (I01) Fitting Position Front Axle | 2017-11 - 2022-07 | 135 | 184 | CC | Hatchback |
| BMW i3 (I01) Fitting Position Front Axle | 2017-11 - 2022-07 | 135 | 184 | 647 | Hatchback |
24.0120-0265.1
Data sheet
- Article Status
- Orderable
- Car Brand
- BMW
- Trade Number
- 420265
- Country Of Origin
- China
- Additional Info
- with bolts/screws
- Height
- 44,9
- Outer Diameter [mm]
- 280,0
- Brake Disc Thickness [mm]
- 20,0
- Brake Disc Type
- Vented
- Processing
- High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 112,0
- Centering Diameter [mm]
- 67,0
- Inner Diameter [mm]
- 151,0
- Bore Diameter [mm]
- 16,7
- Minimum Thickness [mm]
- 18,4
Specific References
- EAN13
- 4006633507240
- MPN
- 2401200265102
ATE 24.0120-0265.1
(240120-02651)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 151,0
- Brake Disc Thickness [mm]: 20,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 420265
