2 pieces of ATE original Brake Disk (24012201431) for Renault
€119.79
(tax incl.)
€99.00 tax excl.
Part-number:
ATE 24.0122-0143.1
(240122-01431)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 131,5
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 422143
Logistical information:
- Ean Code: 4006633284714
- Weight: 13.75kg
Specification of ATE 24.0122-0143.1 / 240122-01431 / 24012201431:
| OE Number | Reference info |
| RENAULT 77 00 710 664 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7700710664 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 77 00 767 602 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7700767602 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 77 01 204 289 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7701204289 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT 25 (B29_) Construction Year from 198601 Construction Year to 198705 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1985-11 - 1989-03 | 76 | 103 | 2165 | Hatchback |
| RENAULT 25 (B29_) Construction Year to 198705 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1986-09 - 1992-12 | 79 | 108 | 2165 | Hatchback |
| RENAULT 25 (B29_) Construction Year to 198705 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1984-04 - 1989-12 | 89 | 121 | 2165 | Hatchback |
| RENAULT 25 (B29_) Construction Year to 198705 Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 1984-04 - 1989-12 | 91 | 124 | 2165 | Hatchback |
| RENAULT 25 (B29_) Construction Year from 198501 Construction Year to 198906 Fitting Position Front Axle | 1984-10 - 1990-05 | 133 | 181 | 2458 | Hatchback |
| RENAULT 25 (B29_) Fitting Position Front Axle | 1990-01 - 1992-12 | 151 | 205 | 2458 | Hatchback |
| RENAULT 25 (B29_) Construction Year to 198905 Fitting Position Front Axle | 1984-04 - 1989-08 | 104 | 141 | 2664 | Hatchback |
| RENAULT 25 (B29_) Construction Year from 198701 Fitting Position Front Axle | 1986-06 - 1988-02 | 100 | 136 | 2849 | Hatchback |
| RENAULT 25 (B29_) Fitting Position Front Axle | 1987-06 - 1992-12 | 110 | 150 | 2849 | Hatchback |
| RENAULT 25 (B29_) Construction Year to 198906 Fitting Position Front Axle | 1987-06 - 1990-02 | 115 | 156 | 2849 | Hatchback |
| RENAULT ESPACE II (J/S63_) Fitting Position Front Axle | 1991-01 - 1996-10 | 110 | 150 | 2849 | MPV |

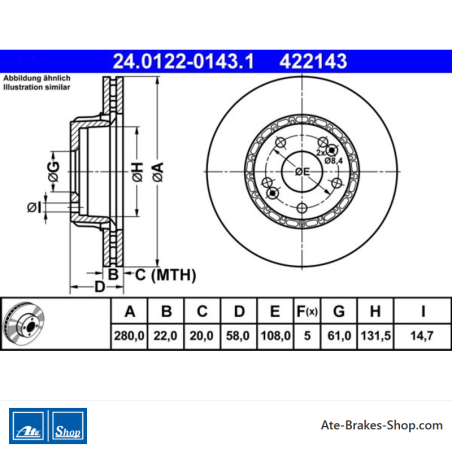

24.0122-0143.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Renault
- Trade Number
- 422143
- Country Of Origin
- Italy
- Height
- 58,0
- Outer Diameter [mm]
- 280,0
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 108,0
- Centering Diameter [mm]
- 61,0
- Inner Diameter [mm]
- 131,5
- Bore Diameter [mm]
- 14,7
- Minimum Thickness [mm]
- 20,0
Specific References
- EAN13
- 4006633284714
- MPN
- 2401220143101
ATE 24.0122-0143.1
(240122-01431)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 131,5
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 422143
