2 pieces of ATE original Brake Disk (24012201561) for Isuzu, Opel
€105.27
(tax incl.)
€87.00 tax excl.
Part-number:
ATE 24.0122-0156.1
(240122-01561)
- Outer Diameter [mm]: 257,0
- Inner Diameter [mm]: 152,5
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 6
- 2 pieces of Brake Disc
- Trade Number: 422156
Logistical information:
- Ean Code: 4006633302685
- Weight: 11.06kg
Specification of ATE 24.0122-0156.1 / 240122-01561 / 24012201561:
| OE Number | Reference info |
| ISUZU 8-94172-376-1 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 5 69 801 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 569801 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 94172376 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 5 69 801 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 569801 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 94172376 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ISUZU D-MAX I (TFR, TFS) Fitting Position Front Axle Construction Year to 200305 | 2002-10 - 2012-06 | 74 | 101 | 2499 | Pickup |
| ISUZU D-MAX I (TFR, TFS) Fitting Position Front Axle Construction Year to 200305 | 2002-05 - 2012-06 | 74 | 101 | 2499 | Pickup |
| ISUZU D-MAX I (TFR, TFS) Fitting Position Front Axle Construction Year to 200305 | 2002-05 - 2012-06 | 96 | 131 | 2999 | Pickup |
| ISUZU TROOPER I Open Off-Road Vehicle (UBS) Vehicle Identification Number (VIN) from 4524289 Fitting Position Front Axle | 1985-11 - 1991-12 | 66 | 90 | 2254 | Open Off-Road Vehicle |
| ISUZU TROOPER I Open Off-Road Vehicle (UBS) Vehicle Identification Number (VIN) from 4524289 Fitting Position Front Axle | 1987-10 - 1991-12 | 85 | 116 | 2559 | Open Off-Road Vehicle |
| ISUZU TROOPER I Open Off-Road Vehicle (UBS) Vehicle Identification Number (VIN) from 4524289 Fitting Position Front Axle | 1984-03 - 1991-12 | 53 | 72 | 2238 | Open Off-Road Vehicle |
| ISUZU TROOPER I (UBS) Vehicle Identification Number (VIN) from 4524289 Fitting Position Front Axle | 1986-11 - 1991-07 | 85 | 116 | 2559 | Closed Off-Road Vehicle |
| ISUZU TROOPER I (UBS) Vehicle Identification Number (VIN) from 4524289 Fitting Position Front Axle | 1987-10 - 1991-12 | 71 | 97 | 2771 | Closed Off-Road Vehicle |
| ISUZU TROOPER I (UBS) Vehicle Identification Number (VIN) from 4524289 Fitting Position Front Axle | 1988-10 - 1991-12 | 78 | 106 | 2771 | Closed Off-Road Vehicle |
| OPEL CAMPO (TF0, TF1) Construction Year from 199201 Fitting Position Front Axle | 1991-08 - 1994-08 | 69 | 94 | 2254 | Pickup |
| OPEL CAMPO (TF0, TF1) Fitting Position Front Axle | 1991-08 - 1994-08 | 69 | 94 | 2254 | Pickup |
| OPEL CAMPO (TF0, TF1) Construction Year to 199608 Fitting Position Front Axle | 1994-08 - 1996-09 | 72 | 98 | 2254 | Pickup |
| OPEL CAMPO (TF0, TF1) Construction Year to 199608 Fitting Position Front Axle | 1994-08 - 1996-09 | 72 | 98 | 2254 | Pickup |
| OPEL CAMPO (TF0, TF1) Construction Year from 199201 Fitting Position Front Axle | 1991-08 - 1994-06 | 56 | 76 | 2499 | Pickup |
| OPEL CAMPO (TF0, TF1) Fitting Position Front Axle | 1991-08 - 1994-06 | 56 | 76 | 2499 | Pickup |
| OPEL CAMPO (TF0, TF1) Construction Year to 199608 Fitting Position Front Axle | 1994-07 - 2001-06 | 56 | 76 | 2499 | Pickup |
| OPEL CAMPO (TF0, TF1) Construction Year to 199608 Fitting Position Front Axle | 1994-07 - 2001-06 | 56 | 76 | 2499 | Pickup |
| OPEL CAMPO (TF0, TF1) Fitting Position Front Axle | 2001-07 - 2001-12 | 74 | 101 | 2499 | Pickup |
| OPEL CAMPO (TF0, TF1) Fitting Position Front Axle | 2001-07 - 2001-12 | 74 | 101 | 2499 | Pickup |
| OPEL CAMPO (TF0, TF1) Construction Year from 199609 Fitting Position Front Axle | 1992-12 - 2001-06 | 80 | 109 | 3059 | Pickup |
| OPEL CAMPO (TF0, TF1) Construction Year to 199608 Fitting Position Front Axle | 1992-12 - 2001-06 | 80 | 109 | 3059 | Pickup |
| OPEL CAMPO (TF0, TF1) Construction Year to 199608 Fitting Position Front Axle | 1992-12 - 2001-06 | 80 | 109 | 3059 | Pickup |
| OPEL CAMPO (TF0, TF1) Construction Year from 199609 Fitting Position Front Axle | 1992-12 - 2001-06 | 80 | 109 | 3059 | Pickup |
| OPEL FRONTERA A Sport (U92) Vehicle Identification Number (VIN) to SV720102 Fitting Position Front Axle | 1992-03 - 1998-10 | 85 | 115 | 1998 | Open Off-Road Vehicle |
| OPEL FRONTERA A Sport (U92) Vehicle Identification Number (VIN) to SV720102 Fitting Position Front Axle | 1996-09 - 1998-10 | 85 | 115 | 2499 | Open Off-Road Vehicle |
| OPEL FRONTERA A Sport (U92) Vehicle Identification Number (VIN) to SV720102 Fitting Position Front Axle | 1995-03 - 1996-08 | 83 | 113 | 2771 | Open Off-Road Vehicle |
| OPEL FRONTERA A (U92) Vehicle Identification Number (VIN) to SV720102 Fitting Position Front Axle | 1995-03 - 1998-10 | 100 | 136 | 2198 | Closed Off-Road Vehicle |
| OPEL FRONTERA A (U92) Vehicle Identification Number (VIN) to SV720102 Fitting Position Front Axle | 1992-03 - 1998-10 | 92 | 125 | 2410 | Closed Off-Road Vehicle |
| OPEL FRONTERA A (U92) Vehicle Identification Number (VIN) to SV720102 Fitting Position Front Axle | 1992-03 - 1998-10 | 74 | 100 | 2260 | Closed Off-Road Vehicle |
| OPEL FRONTERA A (U92) Vehicle Identification Number (VIN) to SV720102 Fitting Position Front Axle | 1996-09 - 1998-10 | 85 | 115 | 2499 | Closed Off-Road Vehicle |
| OPEL FRONTERA A (U92) Vehicle Identification Number (VIN) to SV720102 Fitting Position Front Axle | 1995-03 - 1998-08 | 83 | 113 | 2771 | Closed Off-Road Vehicle |

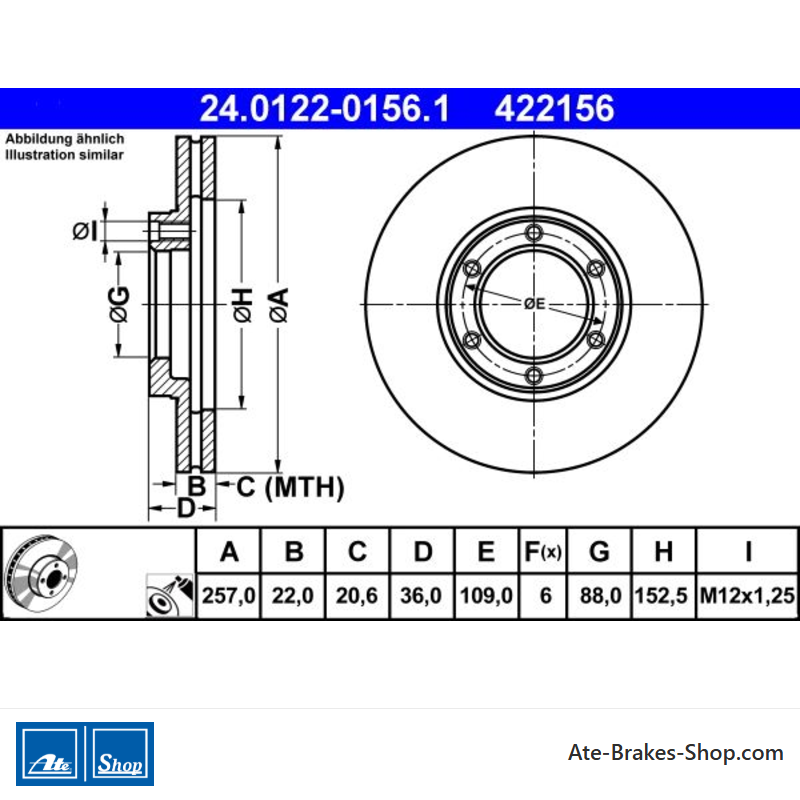

24.0122-0156.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Isuzu
Opel - Trade Number
- 422156
- Country Of Origin
- Germany
- Height
- 36,0
- Outer Diameter [mm]
- 257,0
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 6
- Bolt Hole Diameter [mm]
- 109,0
- Centering Diameter [mm]
- 88,0
- Inner Diameter [mm]
- 152,5
- Thread Size
- M12x1,25
- Minimum Thickness [mm]
- 20,6
Specific References
- EAN13
- 4006633302685
- MPN
- 2401220156102
ATE 24.0122-0156.1
(240122-01561)
- Outer Diameter [mm]: 257,0
- Inner Diameter [mm]: 152,5
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 6
- 2 pieces of Brake Disc
- Trade Number: 422156
