2 pieces of ATE original Brake Disk (24012201771) for MG, Rover
€90.75
(tax incl.)
€75.00 tax excl.
Part-number:
ATE 24.0122-0177.1
(240122-01771)
- Outer Diameter [mm]: 240,5
- Inner Diameter [mm]: 122,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 422177
Logistical information:
- Ean Code: 4006633025041
- Weight: 9.20kg
Specification of ATE 24.0122-0177.1 / 240122-01771 / 24012201771:
| OE Number | Reference info |
| MG FAM8970 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MG NAM7806 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| ROVER FAM8970 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| ROVER NAM7806 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MG MGF (RD) Fitting Position Front Axle | 2000-02 - 2002-03 | 82 | 111 | 1588 | Convertible |
| MG MGF (RD) Fitting Position Front Axle | 1995-03 - 2002-03 | 88 | 120 | 1796 | Convertible |
| MG MGF (RD) Fitting Position Front Axle | 1995-03 - 2002-03 | 107 | 146 | 1796 | Convertible |
| MG TF Construction Year to 200512 Fitting Position Front Axle | 2002-03 - 2009-12 | 85 | 116 | 1588 | Convertible |
| MG TF Construction Year to 200512 Fitting Position Front Axle | 2002-03 - 2009-12 | 88 | 120 | 1796 | Convertible |
| MG TF Construction Year to 200512 Fitting Position Front Axle | 2002-03 - 2009-12 | 100 | 136 | 1796 | Convertible |
| ROVER 100 / METRO Hatchback (XP) Construction Year from 199005 Fitting Position Front Axle | 1990-03 - 1998-12 | 44 | 60 | 1120 | Hatchback |
| ROVER 100 / METRO Hatchback (XP) Construction Year from 199005 Fitting Position Front Axle | 1990-03 - 1998-12 | 55 | 75 | 1396 | Hatchback |
| ROVER 100 / METRO Hatchback (XP) Construction Year from 199005 Fitting Position Front Axle | 1990-03 - 1998-12 | 66 | 90 | 1396 | Hatchback |
| ROVER 100 / METRO Hatchback (XP) Construction Year from 199005 Fitting Position Front Axle | 1990-03 - 1991-08 | 69 | 94 | 1396 | Hatchback |
| ROVER 100 / METRO Hatchback (XP) Fitting Position Front Axle | 1991-08 - 1998-12 | 76 | 103 | 1396 | Hatchback |
| ROVER 100 / METRO Hatchback (XP) Fitting Position Front Axle | 1994-10 - 1995-10 | 76 | 103 | 1396 | Hatchback |
| ROVER 100 Convertible (XP) Fitting Position Front Axle | 1994-04 - 1997-10 | 44 | 60 | 1120 | Convertible |
| ROVER 100 Convertible (XP) Fitting Position Front Axle | 1994-04 - 1997-10 | 55 | 75 | 1396 | Convertible |
| ROVER 100 Convertible (XP) Fitting Position Front Axle | 1997-03 - 1998-10 | 75 | 102 | 1396 | Convertible |

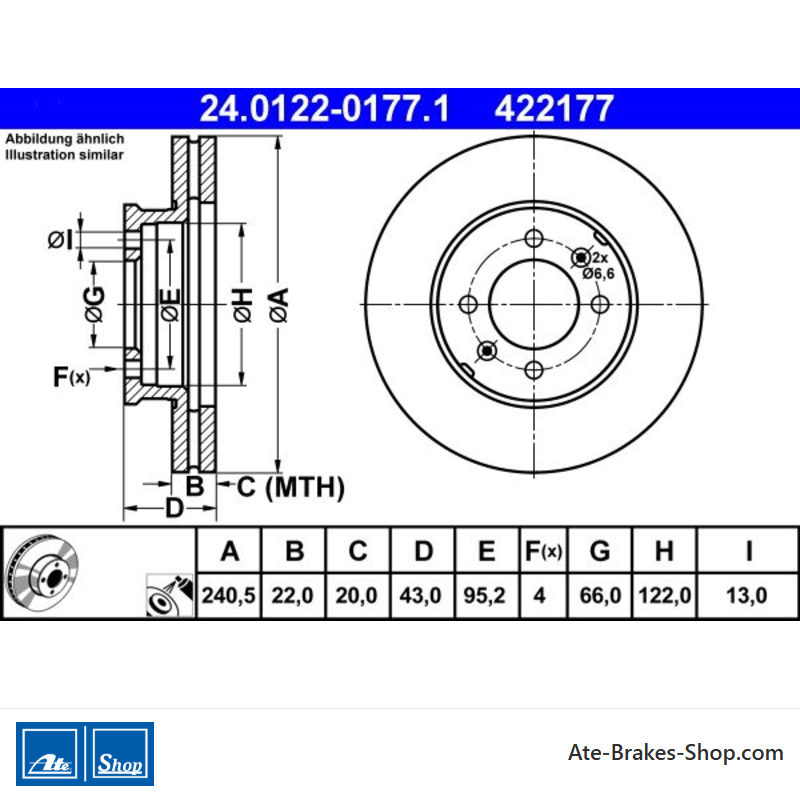

24.0122-0177.1
Data sheet
- Article Status
- Orderable
- Car Brand
- MG
Rover - Trade Number
- 422177
- Country Of Origin
- Italy
- Height
- 43,0
- Outer Diameter [mm]
- 240,5
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 95,2
- Centering Diameter [mm]
- 66,0
- Inner Diameter [mm]
- 122,0
- Bore Diameter [mm]
- 13,0
- Minimum Thickness [mm]
- 20,0
Specific References
- EAN13
- 4006633025041
- MPN
- 2401220177102
ATE 24.0122-0177.1
(240122-01771)
- Outer Diameter [mm]: 240,5
- Inner Diameter [mm]: 122,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 422177
