2 pieces of ATE original Brake Disk (24012201881) for Toyota
€90.75
(tax incl.)
€75.00 tax excl.
Part-number:
ATE 24.0122-0188.1
(240122-01881)
- Outer Diameter [mm]: 258,0
- Inner Diameter [mm]: 131,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 422188
Logistical information:
- Ean Code: 4006633029308
- Weight: 10.31kg
Specification of ATE 24.0122-0188.1 / 240122-01881 / 24012201881:
| OE Number | Reference info |
| TOYOTA 43512-12490 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA COROLLA Compact (_E9_) Fitting Position Front Axle | 1987-08 - 1994-10 | 85 | 116 | 1587 | Hatchback |
| TOYOTA COROLLA Liftback (_E9_) Construction Year to 199205 Fitting Position Front Axle | 1987-07 - 1993-06 | 92 | 125 | 1587 | Hatchback |

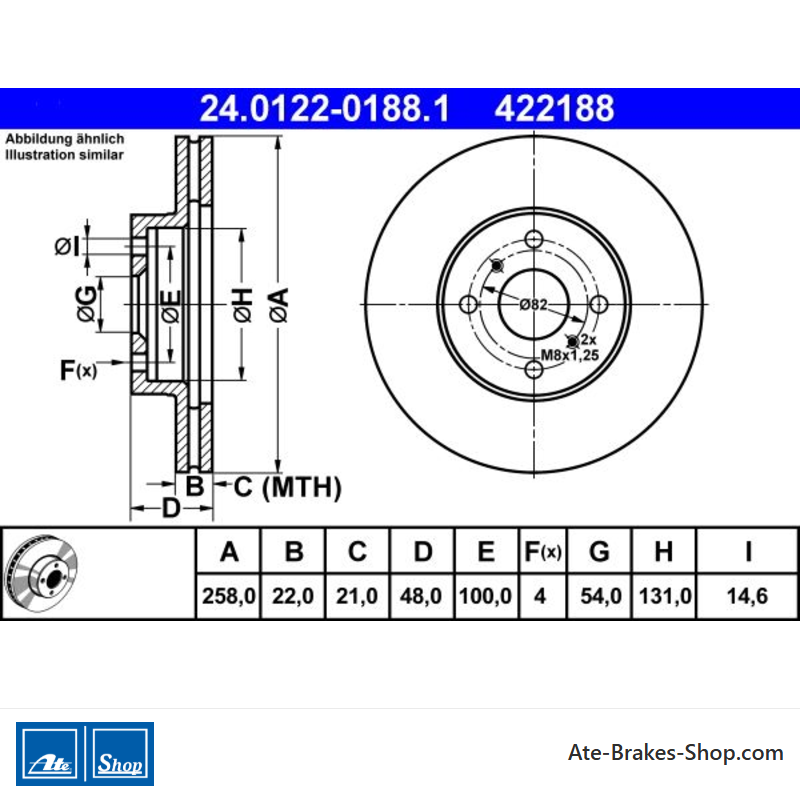

24.0122-0188.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Toyota
- Trade Number
- 422188
- Country Of Origin
- Italy
- Height
- 48,0
- Outer Diameter [mm]
- 258,0
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 54,0
- Inner Diameter [mm]
- 131,0
- Bore Diameter [mm]
- 14,6
- Minimum Thickness [mm]
- 21,0
Specific References
- EAN13
- 4006633029308
- MPN
- 2401220188102
ATE 24.0122-0188.1
(240122-01881)
- Outer Diameter [mm]: 258,0
- Inner Diameter [mm]: 131,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 422188
