2 pieces of ATE original Brake Disk (24012202451) for Mercedes-Benz
€108.90
(tax incl.)
€90.00 tax excl.
Part-number:
ATE 24.0122-0245.1
(240122-02451)
- Outer Diameter [mm]: 285,0
- Inner Diameter [mm]: 156,3
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 422245
Logistical information:
- Ean Code: 4006633308625
- Weight: 14.45kg
Specification of ATE 24.0122-0245.1 / 240122-02451 / 24012202451:
| OE Number | Reference info |
| MERCEDES-BENZ 903 421 00 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 9034210012 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 903 421 01 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 9034210112 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 903 421 00 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 9034210012 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 903 421 01 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 9034210112 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 1995-02 - 2006-05 | 95 | 129 | 2295 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 1995-02 - 2006-05 | 105 | 143 | 2295 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 1995-02 - 2006-05 | 105 | 143 | 2295 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 60 | 82 | 2148 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 80 | 109 | 2148 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 2002-08 - 2006-05 | 80 | 109 | 2148 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 95 | 129 | 2148 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 2002-08 - 2006-05 | 95 | 129 | 2148 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 1995-02 - 2000-04 | 58 | 79 | 2299 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 1995-02 - 2000-04 | 60 | 82 | 2299 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 115 | 156 | 2685 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 2001-02 - 2006-05 | 115 | 156 | 2685 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 1995-02 - 2000-04 | 75 | 102 | 2874 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 1995-02 - 2000-04 | 90 | 122 | 2874 | Van |
| MERCEDES-BENZ SPRINTER 3-t Van (B903) Fitting Position Front Axle | 1997-05 - 2002-08 | 90 | 122 | 2874 | Van |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 1995-02 - 2006-05 | 95 | 129 | 2295 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 1995-02 - 2006-05 | 105 | 143 | 2295 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 1995-02 - 2006-05 | 105 | 143 | 2295 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 60 | 82 | 2148 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 80 | 109 | 2148 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 80 | 109 | 2148 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 95 | 129 | 2148 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 95 | 129 | 2148 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 1995-02 - 2000-04 | 58 | 79 | 2299 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 1996-11 - 2000-04 | 60 | 82 | 2299 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 115 | 156 | 2685 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 2002-08 - 2006-05 | 115 | 156 | 2685 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 1997-01 - 2000-04 | 75 | 102 | 2874 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 1998-12 - 2001-09 | 85 | 116 | 2874 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) Fitting Position Front Axle | 1995-02 - 2000-04 | 90 | 122 | 2874 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 1995-02 - 2006-05 | 95 | 129 | 2295 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 1995-02 - 2006-05 | 105 | 143 | 2295 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 1995-02 - 2006-05 | 105 | 143 | 2295 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 60 | 82 | 2148 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 80 | 109 | 2148 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 2002-08 - 2006-05 | 80 | 109 | 2148 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 95 | 129 | 2148 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 2002-08 - 2006-05 | 95 | 129 | 2148 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 1995-02 - 2000-04 | 58 | 79 | 2299 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 1997-03 - 2000-04 | 60 | 82 | 2299 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 2000-04 - 2006-05 | 115 | 156 | 2685 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 2002-08 - 2006-05 | 115 | 156 | 2685 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 1997-01 - 1999-12 | 75 | 102 | 2874 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 1997-05 - 2002-08 | 75 | 102 | 2874 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 1995-02 - 2000-04 | 90 | 122 | 2874 | Bus |
| MERCEDES-BENZ SPRINTER 3-t Bus (B903) Fitting Position Front Axle | 1997-05 - 2002-08 | 90 | 122 | 2874 | Bus |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 1995-02 - 2006-05 | 95 | 129 | 2295 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 1996-02 - 2006-05 | 105 | 143 | 2295 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 1997-05 - 2006-05 | 105 | 143 | 2295 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 60 | 82 | 2148 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 80 | 109 | 2148 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 80 | 109 | 2148 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 95 | 129 | 2148 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 95 | 129 | 2148 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 1996-02 - 2006-05 | 58 | 79 | 2299 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 115 | 156 | 2685 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 115 | 156 | 2685 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Construction Year from 199609 Fitting Position Front Axle | 1996-02 - 2006-05 | 75 | 102 | 2874 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 1997-05 - 2006-05 | 75 | 102 | 2874 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 1996-02 - 2006-05 | 85 | 115 | 2874 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 1997-05 - 2006-05 | 85 | 115 | 2874 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 1996-02 - 2006-05 | 90 | 122 | 2874 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 1997-05 - 2006-05 | 90 | 122 | 2874 | Van |
| MERCEDES-BENZ SPRINTER 4-t Van (B904) Fitting Position Front Axle | 1997-05 - 2006-05 | 90 | 122 | 2874 | Van |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 1995-02 - 2006-05 | 105 | 143 | 2295 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 1997-05 - 2006-05 | 105 | 143 | 2295 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 60 | 82 | 2148 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 80 | 109 | 2148 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 80 | 109 | 2148 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 95 | 129 | 2148 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 95 | 129 | 2148 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 1996-02 - 2006-05 | 58 | 79 | 2299 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 115 | 156 | 2685 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 115 | 156 | 2685 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Construction Year from 199609 Fitting Position Front Axle | 1996-02 - 2006-05 | 75 | 102 | 2874 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 1997-05 - 2006-05 | 75 | 102 | 2874 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 1996-02 - 2006-05 | 85 | 115 | 2874 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 1997-05 - 2006-05 | 85 | 115 | 2874 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 1996-02 - 2006-05 | 90 | 122 | 2874 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) Fitting Position Front Axle | 1997-05 - 2006-05 | 90 | 122 | 2874 | Platform/Chassis |
| MERCEDES-BENZ SPRINTER 4-t Bus (B904) Fitting Position Front Axle | 1996-02 - 2006-05 | 105 | 143 | 2295 | Bus |
| MERCEDES-BENZ SPRINTER 4-t Bus (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 60 | 82 | 2148 | Bus |
| MERCEDES-BENZ SPRINTER 4-t Bus (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 80 | 109 | 2148 | Bus |
| MERCEDES-BENZ SPRINTER 4-t Bus (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 95 | 129 | 2148 | Bus |
| MERCEDES-BENZ SPRINTER 4-t Bus (B904) Fitting Position Front Axle | 2000-04 - 2006-05 | 115 | 156 | 2685 | Bus |
| MERCEDES-BENZ SPRINTER CLASSIC 3,5-t Van (B909) Fitting Position Front Axle | 2013-09 - | 80 | 109 | 2148 | Van |
| MERCEDES-BENZ SPRINTER CLASSIC 3,5-t Van (B909) Fitting Position Front Axle | 2017-01 - | 100 | 136 | 2148 | Van |
| MERCEDES-BENZ SPRINTER CLASSIC 4,6-t Van (B909) Fitting Position Front Axle | 2017-01 - | 100 | 136 | 2148 | Van |
24.0122-0245.1

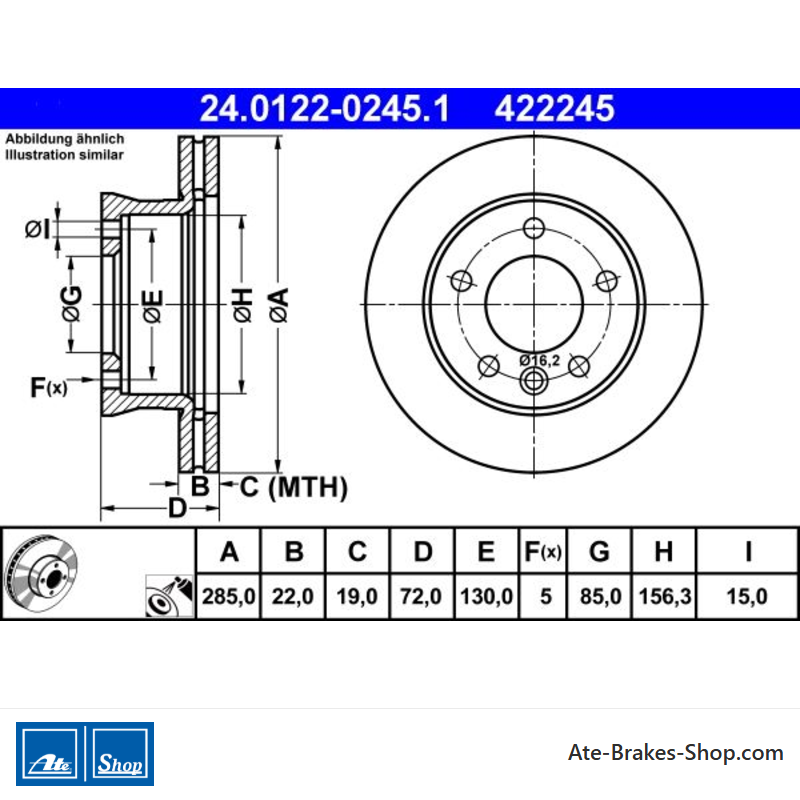

Data sheet
- Article Status
- Orderable
- Car Brand
- Mercedes-Benz
- Trade Number
- 422245
- Country Of Origin
- Germany
- Height
- 72,0
- Outer Diameter [mm]
- 285,0
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Processing
- Alloyed/High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 130,0
- Centering Diameter [mm]
- 85,0
- Inner Diameter [mm]
- 156,3
- Bore Diameter [mm]
- 15,0
- Minimum Thickness [mm]
- 19,0
Specific References
- EAN13
- 4006633308625
- MPN
- 2401220245102
ATE 24.0122-0245.1
(240122-02451)
- Outer Diameter [mm]: 285,0
- Inner Diameter [mm]: 156,3
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 422245
