2 pieces of ATE original Brake Disk (24012202631) for Daihatsu, Subaru
€116.16
(tax incl.)
€96.00 tax excl.
Part-number:
ATE 24.0122-0263.1
(240122-02631)
- Outer Diameter [mm]: 254,0
- Inner Diameter [mm]: 137,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 422263
Logistical information:
- Ean Code: 4006633332576
- Weight: 10.46kg

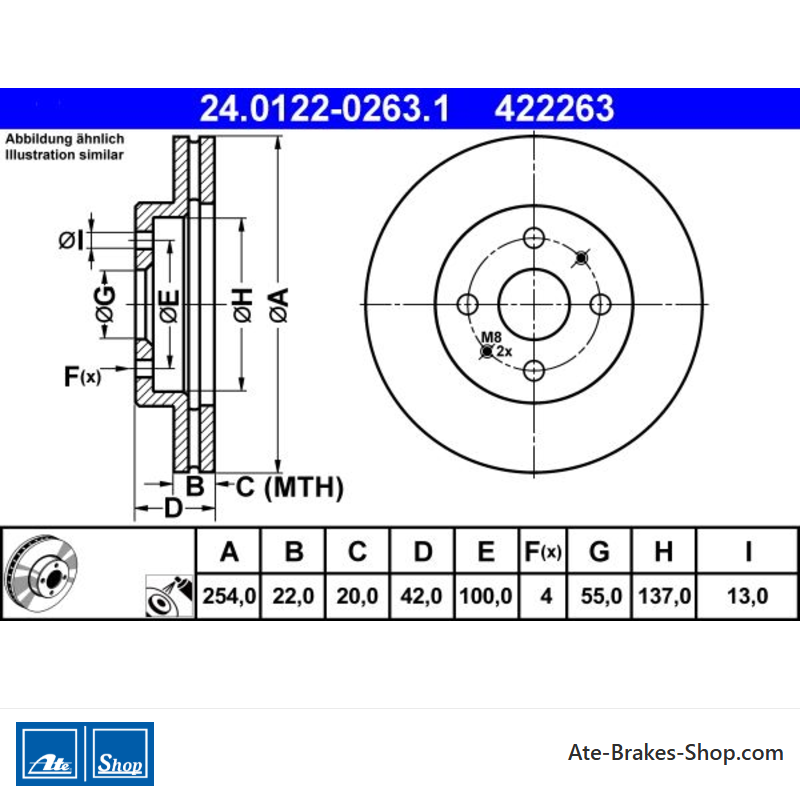

Specification of ATE 24.0122-0263.1 / 240122-02631 / 24012202631:
| OE Number | Reference info |
| DAIHATSU 43512-B1030-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUBARU 43512B1030 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DAIHATSU MATERIA (M4_) Construction Year to 201207 Fitting Position Front Axle | 2006-10 - | 67 | 91 | 1298 | MPV |
| DAIHATSU MATERIA (M4_) Construction Year to 201207 Fitting Position Front Axle | 2006-10 - | 76 | 103 | 1495 | MPV |
| DAIHATSU MATERIA (M4_) Construction Year to 201207 Fitting Position Front Axle | 2006-10 - | 76 | 103 | 1495 | MPV |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2005-01 - 2013-06 | 51 | 70 | 998 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Front Axle | 2005-01 - | 64 | 87 | 1298 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year from 200701 Construction Year to 201301 Fitting Position Front Axle | 2005-04 - | 64 | 87 | 1298 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Front Axle | 2008-03 - | 67 | 91 | 1298 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Front Axle | 2008-03 - | 67 | 91 | 1298 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Front Axle | 2008-03 - | 76 | 103 | 1495 | Hatchback |
| SUBARU JUSTY IV Construction Year from 200709 Construction Year to 201105 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2007-01 - | 51 | 69 | 998 | Hatchback |
| SUBARU JUSTY IV Construction Year to 201105 Fitting Position Front Axle Rim Size [inch] 14.0 Inch | 2007-09 - 2012-03 | 51 | 69 | 998 | Hatchback |
| SUBARU JUSTY IV Construction Year to 201105 Fitting Position Front Axle Rim Size [inch] 14.0 Inch Country Specific Design Switzerland | 2008-03 - | 67 | 91 | 1298 | Hatchback |
24.0122-0263.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Daihatsu
Subaru - Trade Number
- 422263
- Country Of Origin
- China
- Height
- 42,0
- Outer Diameter [mm]
- 254,0
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 137,0
- Bore Diameter [mm]
- 13,0
- Minimum Thickness [mm]
- 20,0
Specific References
- EAN13
- 4006633332576
- MPN
- 2401220263102
ATE 24.0122-0263.1
(240122-02631)
- Outer Diameter [mm]: 254,0
- Inner Diameter [mm]: 137,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 422263
