ATE Original 2 Pieces Brake Disk (24012202801) for Suzuki
€108.90
(tax incl.)
€90.00 tax excl.
Part-number:
ATE 24.0122-0280.1
(240122-02801)
- Outer Diameter [mm]: 256,0
- Inner Diameter [mm]: 132,8
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 422280
Logistical information:
- Ean Code: 4006633390330
- Weight: 9.58kg
Specification of ATE 24.0122-0280.1 / 240122-02801 / 24012202801:
| OE Number | Reference info |
| SUZUKI 55311-68L00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Front Axle | 2010-10 - 2017-04 | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Front Axle Vehicle Equipment for vehicles without cruise control | 2010-10 - 2017-04 | 69 | 94 | 1242 | Hatchback |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Front Axle Vehicle Equipment for vehicles without cruise control | 2010-10 - 2017-04 | 55 | 75 | 1248 | Hatchback |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Front Axle Vehicle Equipment for vehicles without cruise control | 2012-01 - 2017-04 | 100 | 136 | 1586 | Hatchback |
24.0122-0280.1

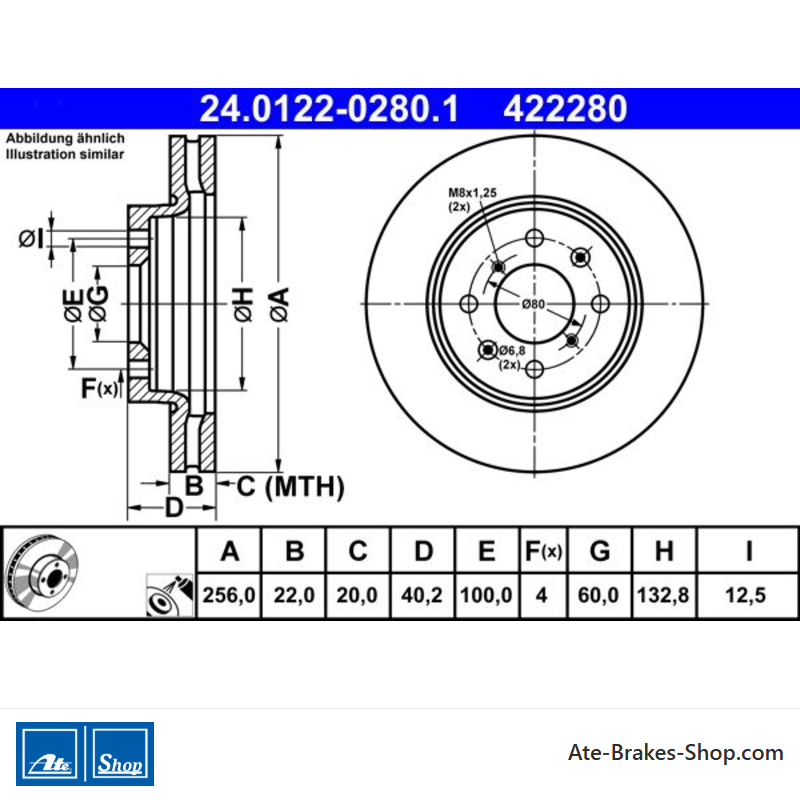

Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 422280
- Country Of Origin
- Czechia
- Height
- 40,2
- Outer Diameter [mm]
- 256,0
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 60,0
- Inner Diameter [mm]
- 132,8
- Bore Diameter [mm]
- 12,5
- Minimum Thickness [mm]
- 20,0
Specific References
- EAN13
- 4006633390330
- MPN
- 2401220280102
ATE 24.0122-0280.1
(240122-02801)
- Outer Diameter [mm]: 256,0
- Inner Diameter [mm]: 132,8
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 422280
