ATE Original 2 Pieces Brake Disk (24012203111) for Toyota
€108.90
(tax incl.)
€90.00 tax excl.
Part-number:
ATE 24.0122-0311.1
(240122-03111)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 131,0
- Brake Disc Thickness [mm]: 22,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 422311
Logistical information:
- Ean Code: 4006633478229
- Weight: 12.01kg
Specification of ATE 24.0122-0311.1 / 240122-03111 / 24012203111:
| OE Number | Reference info |
| TOYOTA 43512-0D210 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA YARIS (_P13_) Fitting Position Front Axle | 2017-03 - 2020-06 | 82 | 112 | 1496 | Hatchback |
| TOYOTA YARIS (_P13_) Fitting Position Front Axle | 2015-04 - 2017-03 | 74 | 101 | 1497 | Hatchback |
| TOYOTA YARIS (_P13_) Fitting Position Front Axle Construction Year from 201303 | 2012-03 - 2020-06 | 74 | 101 | 1497 | Hatchback |
| TOYOTA YARIS Hatchback Van (_P13_) Fitting Position Front Axle | 2017-03 - 2020-06 | 82 | 111 | 1496 | Hatchback Van |
24.0122-0311.1

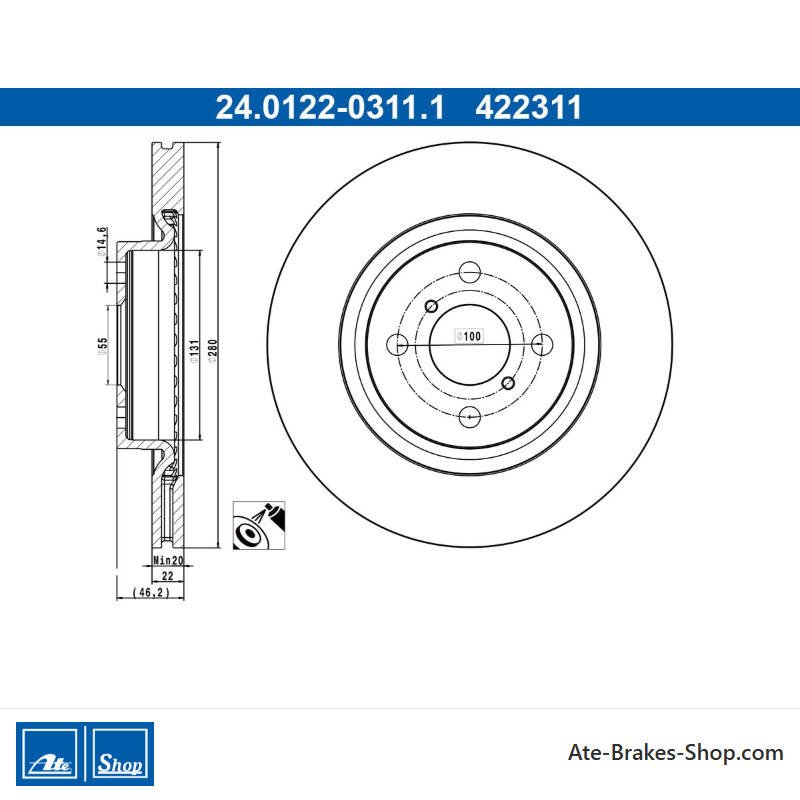

Data sheet
- Article Status
- Orderable
- Car Brand
- Toyota
- Trade Number
- 422311
- Country Of Origin
- Germany
- Height
- 46,2
- Outer Diameter [mm]
- 280,0
- Brake Disc Thickness [mm]
- 22,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 131,0
- Bore Diameter [mm]
- 14,6
- Minimum Thickness [mm]
- 20,0
Specific References
- EAN13
- 4006633478229
- MPN
- 2401220311102
