ATE Original 2 Pieces Brake Disk (24012203221) for Mazda, Toyota
search
  • ATE Original 2 Pieces Brake Disk (24012203221) for Mazda, Toyota
  • ATE Original 2 Pieces Brake Disk (24012203221) for Mazda, Toyota
  • ATE Original 2 Pieces Brake Disk (24012203221) for Mazda, Toyota

2 pieces of ATE original Brake Disk (24012203221) for Mazda, Toyota

€105.27 (tax incl.)

€87.00 tax excl.

Part-number:

ATE 24.0122-0322.1
(240122-03221)

  • Outer Diameter [mm]: 282,0
  • Inner Diameter [mm]: 138,0
  • Brake Disc Thickness [mm]: 22,0
  • Number of Bolt Holes: 5
  • 2 pieces of Brake Disc
  • Trade Number: 422322
Logistical information:
55,0Click here for detailed information.
  • Ean Code: 4006633466936
  • Weight: 12.37kg
Quantity

Specification of ATE 24.0122-0322.1 / 240122-03221 / 24012203221:

OE NumberReference info
MAZDA 1M04-26-251Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
TOYOTA 43512-K0040Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
MAZDA 2 Hatchback (KB)

Fitting Position Front Axle		2022-03 -851161490Hatchback
TOYOTA YARIS (_P21_, _PA1_, _PH1_)

Fitting Position Front Axle		2020-02 -5372998Hatchback
TOYOTA YARIS (_P21_, _PA1_, _PH1_)

Fitting Position Front Axle		2020-02 -851161490Hatchback
TOYOTA YARIS (_P21_, _PA1_, _PH1_)

Fitting Position Front Axle		2020-02 -881201490Hatchback
TOYOTA YARIS (_P21_, _PA1_, _PH1_)

Fitting Position Front Axle		2020-02 -921251490Hatchback
TOYOTA YARIS (_P21_, _PA1_, _PH1_)

Fitting Position Front Axle		2024-01 -961311490Hatchback

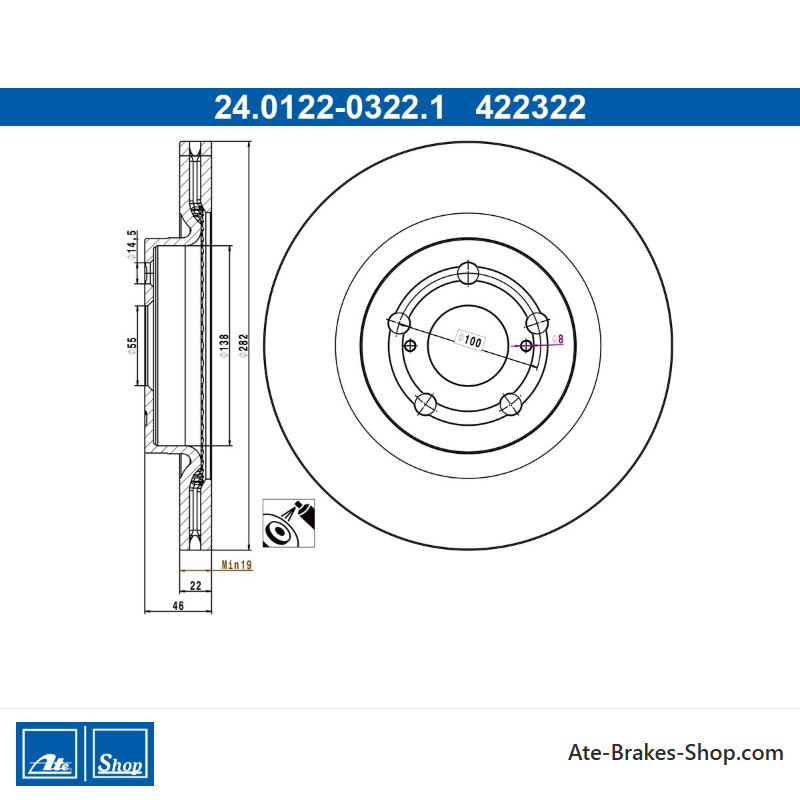

24.0122-0322.1

Data sheet

Article Status
Orderable
Car Brand
Mazda
Toyota
Trade Number
422322
Country Of Origin
Czechia
Height
46,0
Outer Diameter [mm]
282,0
Brake Disc Thickness [mm]
22,0
Brake Disc Type
Vented
Surface
Coated
Number of Bolt Holes
5
Bolt Hole Diameter [mm]
100,0
Centering Diameter [mm]
55,0
Inner Diameter [mm]
138,0
Bore Diameter [mm]
14,5
Minimum Thickness [mm]
19,0

Specific References

EAN13
4006633466936
MPN
2401220322102
