ATE Original 2 Pieces Brake Disk (24012301231) for Hyundai, Kia
€119.79
(tax incl.)
€99.00 tax excl.
Part-number:
ATE 24.0123-0123.1
(240123-01231)

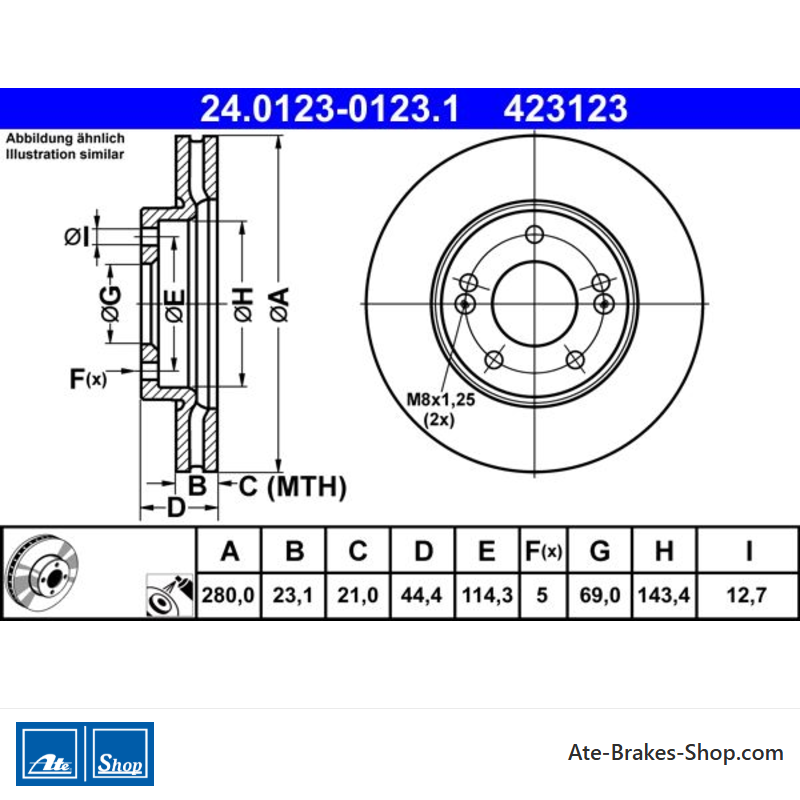

- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 143,4
- Brake Disc Thickness [mm]: 23,1
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 423123
Logistical information:
- Ean Code: 4006633413374
- Weight: 12.92kg
Specification of ATE 24.0123-0123.1 / 240123-01231 / 24012301231:
| OE Number | Reference info |
| HYUNDAI 51712-A6000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI 51712-M0000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-A7000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 51712-A6000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 15" | 2011-12 - 2015-12 | 73 | 99 | 1396 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 15" | 2013-01 - 2014-12 | 73 | 99 | 1396 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 15" | 2014-12 - 2016-12 | 74 | 101 | 1368 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 15" | 2012-01 - 2016-12 | 88 | 120 | 1591 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 15" | 2011-12 - 2015-12 | 95 | 129 | 1591 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 15" | 2011-12 - 2016-12 | 99 | 135 | 1591 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 15" | 2011-12 - 2016-12 | 66 | 90 | 1396 | Hatchback |
| HYUNDAI i30 (GD) Construction Year from 201206 Fitting Position Front Axle Brake Size 15" | 2011-12 - 2016-12 | 81 | 110 | 1582 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 15" | 2011-12 - 2015-12 | 94 | 128 | 1582 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 15" | 2011-11 - 2016-12 | 100 | 136 | 1582 | Hatchback |
| HYUNDAI i30 (GD) Fitting Position Front Axle Brake Size 15" | 2015-01 - | 137 | 186 | 1591 | Hatchback |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 15" | 2012-06 - 2015-12 | 73 | 99 | 1396 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 15" | 2014-01 - 2017-05 | 74 | 101 | 1368 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 15" | 2012-06 - | 88 | 120 | 1591 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 15" | 2012-06 - 2015-12 | 95 | 129 | 1591 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 15" | 2012-06 - 2017-05 | 66 | 90 | 1396 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 15" | 2012-06 - | 99 | 135 | 1591 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 15" | 2012-06 - | 81 | 110 | 1582 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 15" | 2012-06 - 2015-12 | 94 | 128 | 1582 | Estate |
| HYUNDAI i30 Estate (GD) Fitting Position Front Axle Brake Size 15" | 2012-06 - | 100 | 136 | 1582 | Estate |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 15" | 2013-05 - 2014-12 | 73 | 99 | 1396 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 15" | 2014-12 - | 74 | 101 | 1368 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 15" | 2013-05 - | 88 | 120 | 1591 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 15" | 2015-01 - | 137 | 186 | 1591 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 15" | 2013-05 - | 99 | 135 | 1591 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 15" | 2013-05 - 2017-05 | 66 | 90 | 1396 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 15" | 2013-05 - | 81 | 110 | 1582 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 15" | 2013-05 - | 94 | 128 | 1582 | Coupe |
| HYUNDAI i30 Coupe Fitting Position Front Axle Brake Size 15" | 2014-12 - | 100 | 136 | 1582 | Coupe |
| HYUNDAI i30 FASTBACK (PDE, PDEN) Fitting Position Front Axle Brake Size 15" | 2024-04 - | 71 | 97 | 1498 | Hatchback |
| HYUNDAI i30 (PDE, PD, PDEN) Construction Year from 201701 Fitting Position Front Axle Brake Size 15" | 2016-11 - 2020-12 | 74 | 100 | 1368 | Hatchback |
| HYUNDAI i30 (PDE, PD, PDEN) Fitting Position Front Axle Brake Size 15" | 2024-04 - | 71 | 97 | 1498 | Hatchback |
| HYUNDAI i30 (PDE, PD, PDEN) Fitting Position Front Axle Brake Size 15" | 2020-06 - | 81 | 110 | 1498 | Hatchback |
| HYUNDAI i30 Estate (PDE) Fitting Position Front Axle Brake Size 15" | 2024-04 - | 71 | 97 | 1498 | Estate |
| HYUNDAI i30 Estate (PDE) Fitting Position Front Axle Brake Size 15" | 2020-06 - | 81 | 110 | 1498 | Estate |
| HYUNDAI i30 Hatchback Van (GDE) Fitting Position Front Axle Brake Size 15" | 2015-05 - 2017-05 | 74 | 101 | 1368 | Hatchback Van |
| HYUNDAI i30 Kombi Van (GDE, GD) Fitting Position Front Axle Brake Size 15" | 2015-05 - 2017-05 | 74 | 101 | 1368 | Estate Van |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 15" | 2015-07 - 2018-07 | 74 | 100 | 998 | Hatchback |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 15" | 2015-07 - 2018-07 | 88 | 120 | 998 | Hatchback |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 15" | 2015-04 - 2018-07 | 74 | 101 | 1368 | Hatchback |
| KIA CEE'D (JD) Construction Year from 201506 Country Specific Design Russia Fitting Position Front Axle Brake Size 15" | 2013-01 - 2018-07 | 95 | 130 | 1591 | Hatchback |
| KIA CEE'D (JD) Fitting Position Front Axle Brake Size 15" | 2015-07 - 2018-07 | 100 | 136 | 1582 | Hatchback |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 15" | 2015-07 - 2018-07 | 74 | 100 | 998 | Estate |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 15" | 2015-07 - 2018-07 | 88 | 120 | 998 | Estate |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 15" | 2015-04 - 2018-07 | 74 | 101 | 1368 | Estate |
| KIA CEE'D Sportswagon (JD) Construction Year from 201506 Country Specific Design Russia Fitting Position Front Axle Brake Size 15" | 2014-11 - 2018-07 | 95 | 130 | 1591 | Estate |
| KIA CEE'D Sportswagon (JD) Fitting Position Front Axle Brake Size 15" | 2015-07 - 2018-07 | 100 | 136 | 1582 | Estate |
| KIA CEED (CD) Fitting Position Front Axle Brake Size 15" | 2018-03 - 2020-12 | 73 | 99 | 1368 | Hatchback |
| KIA CEED (CD) Fitting Position Front Axle Brake Size 15" | 2018-12 - 2020-12 | 71 | 97 | 1368 | Hatchback |
| KIA CEED Sportswagon (CD) Fitting Position Front Axle Brake Size 15" | 2018-04 - 2020-12 | 73 | 99 | 1368 | Estate |
| KIA CEED Sportswagon (CD) Fitting Position Front Axle Brake Size 15" | 2018-12 - 2020-12 | 71 | 97 | 1368 | Estate |
| KIA CERATO III Saloon (YD) Fitting Position Front Axle Brake Size 15" | 2016-07 - 2018-06 | 95 | 129 | 1591 | Saloon |
| KIA CERATO III Saloon (YD) Fitting Position Front Axle Brake Size 15" | 2016-03 - 2018-06 | 112 | 152 | 1999 | Saloon |
| KIA CERATO III Saloon (YD) Fitting Position Front Axle Brake Size 15" | 2016-08 - 2018-06 | 100 | 136 | 1582 | Saloon |
| KIA CERATO IV Saloon (BD, BDM) Fitting Position Front Axle Brake Size 15" | 2018-02 - | 94 | 128 | 1591 | Saloon |
| KIA CERATO IV Saloon (BD, BDM) Fitting Position Front Axle Brake Size 15" | 2018-11 - | 100 | 136 | 1598 | Saloon |
| KIA CERATO IV Saloon (BD, BDM) Fitting Position Front Axle Brake Size 15" | 2018-02 - | 110 | 150 | 1999 | Saloon |
| KIA CERATO IV Saloon (BD, BDM) Fitting Position Front Axle Brake Size 15" | 2018-02 - | 112 | 152 | 1999 | Saloon |
| KIA CERATO KOUP II (TD) Fitting Position Front Axle Brake Size 15" | 2013-09 - 2014-02 | 150 | 204 | 1591 | Coupe |
| KIA CERATO KOUP III (YD) Fitting Position Front Axle Brake Size 15" | 2013-12 - | 150 | 204 | 1591 | Coupe |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 15" | 2015-07 - 2018-07 | 74 | 100 | 998 | Hatchback |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 15" | 2015-07 - 2018-07 | 88 | 120 | 998 | Hatchback |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 15" | 2015-04 - 2018-07 | 74 | 101 | 1368 | Hatchback |
| KIA PRO CEE'D (JD) Fitting Position Front Axle Brake Size 15" | 2015-07 - 2018-07 | 100 | 136 | 1582 | Hatchback |
| KIA CEE'D Combi Van (JD) Fitting Position Front Axle Brake Size 15" | 2015-04 - 2018-07 | 88 | 120 | 998 | Estate Van |
| KIA CEE'D Combi Van (JD) Construction Year from 201506 Fitting Position Front Axle Brake Size 15" | 2015-04 - 2018-07 | 73 | 100 | 1396 | Estate Van |
| KIA CEE'D Combi Van (JD) Construction Year from 201506 Fitting Position Front Axle Brake Size 15" | 2015-04 - 2018-07 | 66 | 90 | 1396 | Estate Van |
| KIA PRO CEE'D Hatchback Van (JD) Fitting Position Front Axle Brake Size 15" | 2015-05 - 2018-07 | 88 | 120 | 998 | Hatchback Van |
| KIA PRO CEE'D Hatchback Van (JD) Fitting Position Front Axle Brake Size 15" | 2015-05 - 2018-07 | 74 | 101 | 1368 | Hatchback Van |
| KIA PRO CEE'D Hatchback Van (JD) Fitting Position Front Axle Brake Size 15" | 2015-05 - 2018-07 | 100 | 136 | 1582 | Hatchback Van |
24.0123-0123.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Hyundai
Kia - Trade Number
- 423123
- Country Of Origin
- EU
- Height
- 44,4
- Outer Diameter [mm]
- 280,0
- Brake Disc Thickness [mm]
- 23,1
- Brake Disc Type
- Vented
- Processing
- High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 69,0
- Inner Diameter [mm]
- 143,4
- Bore Diameter [mm]
- 12,7
- Minimum Thickness [mm]
- 21,0
Specific References
- EAN13
- 4006633413374
- MPN
- 2401230123102
ATE 24.0123-0123.1
(240123-01231)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 143,4
- Brake Disc Thickness [mm]: 23,1
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 423123
