ATE Original 2 Pieces Brake Disk (24012501181) for Toyota, Volkswagen (VW)
€108.90
(tax incl.)
€90.00 tax excl.
Part-number:
ATE 24.0125-0118.1
(240125-01181)
- Outer Diameter [mm]: 257,0
- Inner Diameter [mm]: 145,0
- Brake Disc Thickness [mm]: 25,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 425118
Logistical information:
- Ean Code: 4006633301886
- Weight: 11.21kg

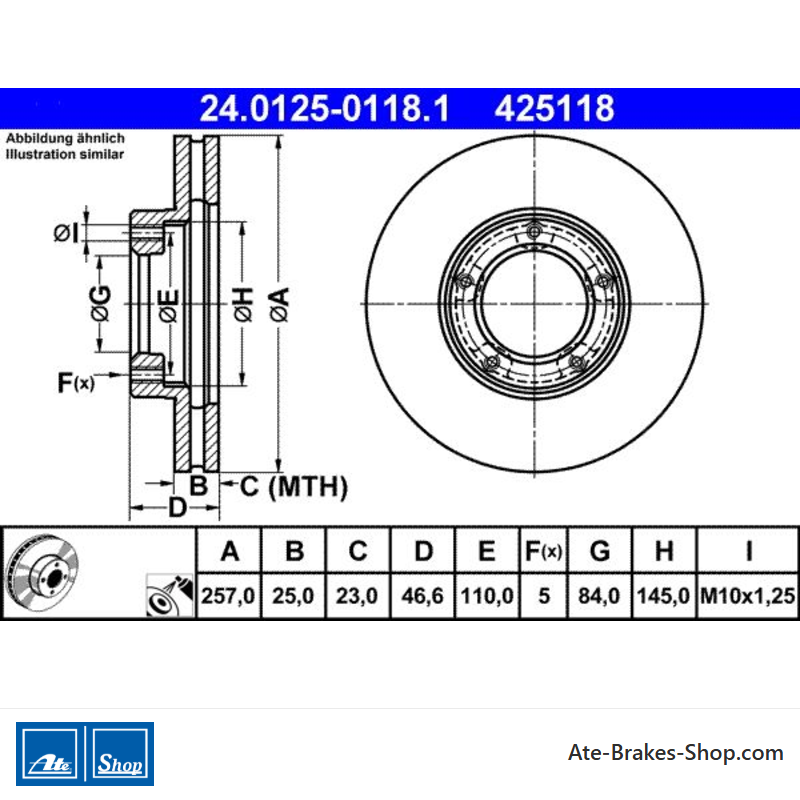

Specification of ATE 24.0125-0118.1 / 240125-01181 / 24012501181:
| OE Number | Reference info |
| TOYOTA 43512-26070 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-35180 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-26040 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 43512-35170 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG J43 512 351 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG J4351235180 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA HILUX V Pickup (_N8_, _N9_, _N10_, _N11_) Construction Year to 199707 Fitting Position Front Axle | 1988-09 - 1998-06 | 61 | 83 | 1812 | Pickup |
| TOYOTA HILUX V Pickup (_N8_, _N9_, _N10_, _N11_) Fitting Position Front Axle | 1988-10 - 1997-07 | 55 | 75 | 2446 | Pickup |
| TOYOTA HILUX V Pickup (_N8_, _N9_, _N10_, _N11_) Construction Year to 199707 Fitting Position Front Axle | 1995-03 - 1997-08 | 58 | 79 | 2446 | Pickup |
| TOYOTA HILUX V Pickup (_N8_, _N9_, _N10_, _N11_) Construction Year to 199707 Fitting Position Front Axle | 1994-01 - 1997-12 | 58 | 79 | 2446 | Pickup |
| TOYOTA HILUX V Pickup (_N8_, _N9_, _N10_, _N11_) Construction Year to 199707 Fitting Position Front Axle | 1988-09 - 1997-08 | 61 | 83 | 2446 | Pickup |
| TOYOTA HILUX VI Pickup (_N1_) Fitting Position Front Axle | 1997-08 - 2005-04 | 55 | 75 | 2446 | Pickup |
| TOYOTA HILUX VI Pickup (_N1_) Fitting Position Front Axle | 1997-08 - 2005-07 | 58 | 79 | 2446 | Pickup |
| TOYOTA HILUX VI Pickup (_N1_) Fitting Position Front Axle | 1997-08 - 2001-07 | 66 | 90 | 2446 | Pickup |
| TOYOTA HILUX VI Pickup (_N1_) Fitting Position Front Axle | 2001-11 - 2005-07 | 65 | 88 | 2494 | Pickup |
| TOYOTA DYNA 100 Platform/Chassis (LY1_, YY1_) Fitting Position Front Axle | 1995-05 - 2001-07 | 54 | 73 | 2446 | Platform/Chassis |
| TOYOTA HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_) Construction Year to 198708 Fitting Position Front Axle | 1983-03 - 1989-07 | 58 | 79 | 1812 | Bus |
| TOYOTA HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_) Construction Year from 198709 Fitting Position Front Axle | 1985-01 - 1989-08 | 65 | 88 | 1998 | Bus |
| TOYOTA HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_) Construction Year to 198708 Fitting Position Front Axle | 1985-01 - 1989-08 | 65 | 88 | 1998 | Bus |
| TOYOTA HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_) Construction Year to 198708 Fitting Position Front Axle | 1982-12 - 1989-11 | 49 | 67 | 2188 | Bus |
| TOYOTA HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_) Construction Year to 198708 Fitting Position Front Axle | 1984-04 - 1989-08 | 55 | 75 | 2446 | Bus |
| TOYOTA HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_) Construction Year from 198709 Fitting Position Front Axle | 1984-04 - 1989-08 | 55 | 75 | 2446 | Bus |
| TOYOTA HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_) Construction Year to 198708 Fitting Position Front Axle | 1982-12 - 1989-07 | 58 | 79 | 1812 | Van |
| TOYOTA HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_) Construction Year to 198708 Fitting Position Front Axle | 1982-12 - 1989-08 | 65 | 88 | 1998 | Van |
| TOYOTA HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_) Construction Year from 198709 Fitting Position Front Axle | 1982-12 - 1989-08 | 65 | 88 | 1998 | Van |
| TOYOTA HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_) Construction Year to 198708 Fitting Position Front Axle | 1982-12 - 1989-11 | 49 | 67 | 2188 | Van |
| TOYOTA HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_) Construction Year to 198708 Fitting Position Front Axle | 1982-12 - 1989-11 | 55 | 75 | 2446 | Van |
| TOYOTA HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_) Construction Year from 198709 Fitting Position Front Axle | 1982-12 - 1989-11 | 55 | 75 | 2446 | Van |
| VW TARO Fitting Position Front Axle | 1989-04 - 1994-09 | 61 | 83 | 1812 | Pickup |
| VW TARO Fitting Position Front Axle | 1989-06 - 1994-07 | 69 | 94 | 2237 | Pickup |
| VW TARO Fitting Position Front Axle | 1989-06 - 1994-07 | 69 | 94 | 2237 | Pickup |
| VW TARO Fitting Position Front Axle | 1994-07 - 1997-03 | 58 | 79 | 2446 | Pickup |
| VW TARO Fitting Position Front Axle | 1991-09 - 1994-07 | 59 | 80 | 2446 | Pickup |
| VW TARO Fitting Position Front Axle | 1989-06 - 1997-03 | 61 | 83 | 2446 | Pickup |
24.0125-0118.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Toyota
Volkswagen (VW) - Trade Number
- 425118
- Country Of Origin
- Italy
- Height
- 46,6
- Outer Diameter [mm]
- 257,0
- Brake Disc Thickness [mm]
- 25,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 110,0
- Centering Diameter [mm]
- 84,0
- Inner Diameter [mm]
- 145,0
- Thread Size
- M10x1,25
- Minimum Thickness [mm]
- 23,0
Specific References
- EAN13
- 4006633301886
- MPN
- 2401250118102
ATE 24.0125-0118.1
(240125-01181)
- Outer Diameter [mm]: 257,0
- Inner Diameter [mm]: 145,0
- Brake Disc Thickness [mm]: 25,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 425118
