ATE Original 2 Pieces Brake Disk (24012601141) for Lancia
€163.35
(tax incl.)
€135.00 tax excl.
Part-number:
ATE 24.0126-0114.1
(240126-01141)
- Outer Diameter [mm]: 281,0
- Inner Diameter [mm]: 127,0
- Brake Disc Thickness [mm]: 26,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 426114
Logistical information:
- Ean Code: 4006633029582
- Weight: 14.38kg
Specification of ATE 24.0126-0114.1 / 240126-01141 / 24012601141:
| OE Number | Reference info |
| FIAT 82476515 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| LANCIA DELTA I (831_) Construction Year from 198711 Fitting Position Front Axle | 1986-11 - 1988-08 | 122 | 166 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Construction Year from 198906 Fitting Position Front Axle | 1986-12 - 1992-12 | 130 | 177 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Construction Year from 198711 Fitting Position Front Axle | 1986-12 - 1992-12 | 130 | 177 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Construction Year from 198711 Fitting Position Front Axle | 1987-10 - 1991-12 | 133 | 181 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Fitting Position Front Axle | 1989-03 - 1991-09 | 144 | 196 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Construction Year from 198906 Fitting Position Front Axle | 1989-03 - 1991-09 | 144 | 196 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Construction Year to 199310 Fitting Position Front Axle | 1993-06 - 1994-01 | 155 | 211 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Construction Year from 199311 Fitting Position Front Axle | 1993-06 - 1994-01 | 155 | 211 | 1995 | Hatchback |
| LANCIA DELTA II (836_) Construction Year from 199311 Fitting Position Front Axle | 1993-06 - 1999-08 | 102 | 139 | 1995 | Hatchback |

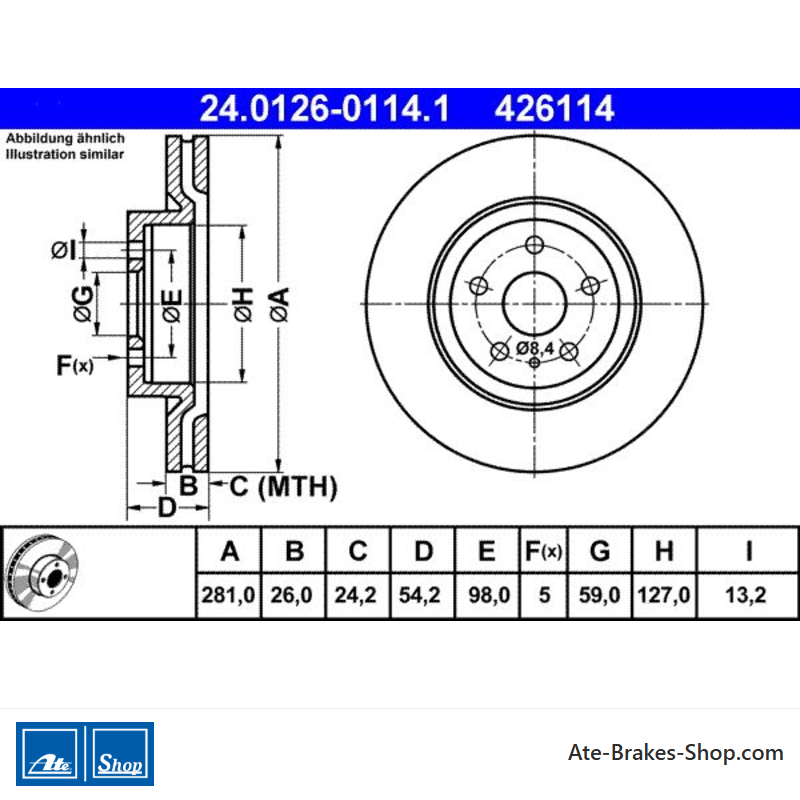

24.0126-0114.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Lancia
- Trade Number
- 426114
- Country Of Origin
- Italy
- Height
- 54,2
- Outer Diameter [mm]
- 281,0
- Brake Disc Thickness [mm]
- 26,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 98,0
- Centering Diameter [mm]
- 59,0
- Inner Diameter [mm]
- 127,0
- Bore Diameter [mm]
- 13,2
- Minimum Thickness [mm]
- 24,2
Specific References
- EAN13
- 4006633029582
- MPN
- 2401260114102
ATE 24.0126-0114.1
(240126-01141)
- Outer Diameter [mm]: 281,0
- Inner Diameter [mm]: 127,0
- Brake Disc Thickness [mm]: 26,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 426114
