ATE Original 2 Pieces Brake Disk (24012601801) for Mercedes-Benz
€105.27
(tax incl.)
€87.00 tax excl.
Part-number:
ATE 24.0126-0180.1
(240126-01801)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 139,8
- Brake Disc Thickness [mm]: 26,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 426180
Logistical information:
- Ean Code: 4006633405782
- Weight: 15.94kg

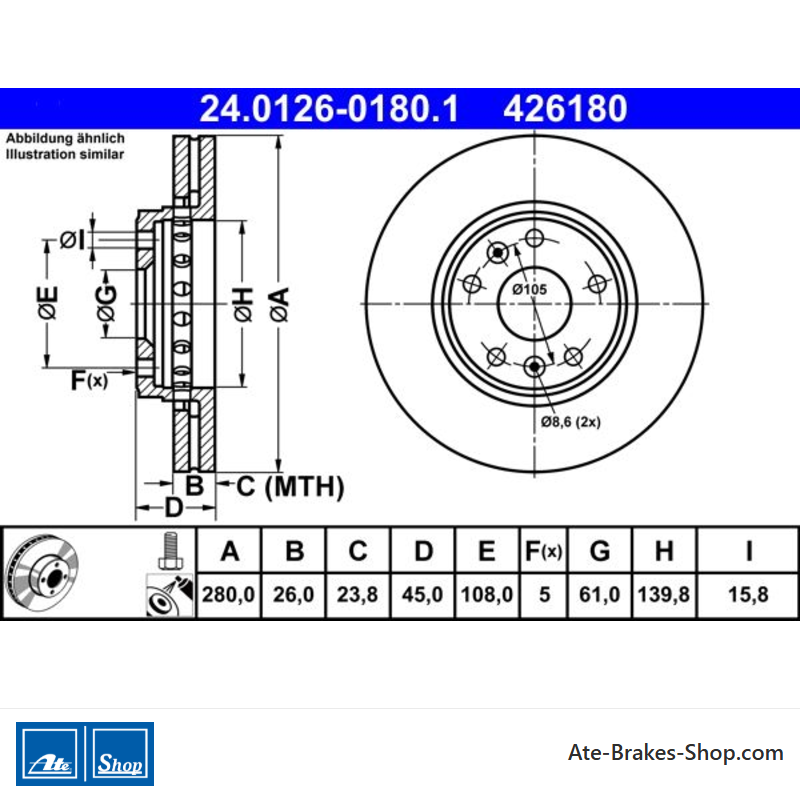

Specification of ATE 24.0126-0180.1 / 240126-01801 / 24012601801:
| OE Number | Reference info |
| MERCEDES-BENZ 415 421 04 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ 4154210412 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 415 421 04 12 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MERCEDES-BENZ A 4154210412 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MERCEDES-BENZ CITAN MPV (W415) Construction Year to 201301 Country Specific Design Russia Country Specific Design Romania Country Specific Design Turkey Country Specific Design Scandinavia Fitting Position Front Axle Rim Size [inch] 15.0 Inch Rim Size [inch] 16.0 Inch | 2012-11 - 2021-08 | 55 | 75 | 1461 | MPV |
| MERCEDES-BENZ CITAN MPV (W415) Country Specific Design Russia Country Specific Design Romania Country Specific Design Turkey Country Specific Design Scandinavia Fitting Position Front Axle Rim Size [inch] 15.0 Inch Rim Size [inch] 16.0 Inch | 2019-02 - 2021-08 | 59 | 80 | 1461 | MPV |
| MERCEDES-BENZ CITAN MPV (W415) Construction Year to 201301 Country Specific Design Russia Country Specific Design Romania Country Specific Design Turkey Country Specific Design Scandinavia Fitting Position Front Axle Rim Size [inch] 15.0 Inch Rim Size [inch] 16.0 Inch | 2012-11 - 2021-08 | 66 | 90 | 1461 | MPV |
| MERCEDES-BENZ CITAN MPV (W415) Country Specific Design Russia Country Specific Design Romania Country Specific Design Turkey Country Specific Design Scandinavia Fitting Position Front Axle Rim Size [inch] 15.0 Inch Rim Size [inch] 16.0 Inch | 2019-02 - 2021-08 | 70 | 95 | 1461 | MPV |
| MERCEDES-BENZ CITAN MPV (W415) Country Specific Design Russia Country Specific Design Romania Country Specific Design Turkey Country Specific Design Scandinavia Fitting Position Front Axle Rim Size [inch] 15.0 Inch Rim Size [inch] 16.0 Inch | 2019-02 - 2021-08 | 85 | 116 | 1461 | MPV |
| MERCEDES-BENZ CITAN Box Body/MPV (W415) Construction Year to 201301 Country Specific Design Russia Country Specific Design Romania Country Specific Design Turkey Country Specific Design Scandinavia Fitting Position Front Axle Rim Size [inch] 15.0 Inch Rim Size [inch] 16.0 Inch | 2012-11 - 2021-08 | 55 | 75 | 1461 | Box Body/MPV |
| MERCEDES-BENZ CITAN Box Body/MPV (W415) Country Specific Design Russia Country Specific Design Romania Country Specific Design Turkey Country Specific Design Scandinavia Fitting Position Front Axle Rim Size [inch] 15.0 Inch Rim Size [inch] 16.0 Inch | 2019-05 - 2021-08 | 59 | 80 | 1461 | Box Body/MPV |
| MERCEDES-BENZ CITAN Box Body/MPV (W415) Construction Year to 201301 Country Specific Design Russia Country Specific Design Romania Country Specific Design Turkey Country Specific Design Scandinavia Fitting Position Front Axle Rim Size [inch] 15.0 Inch Rim Size [inch] 16.0 Inch | 2012-11 - 2021-08 | 66 | 90 | 1461 | Box Body/MPV |
| MERCEDES-BENZ CITAN Box Body/MPV (W415) Country Specific Design Russia Country Specific Design Romania Country Specific Design Turkey Country Specific Design Scandinavia Fitting Position Front Axle Rim Size [inch] 15.0 Inch Rim Size [inch] 16.0 Inch | 2019-05 - 2021-08 | 70 | 95 | 1461 | Box Body/MPV |
| MERCEDES-BENZ CITAN Box Body/MPV (W415) Country Specific Design Russia Country Specific Design Romania Country Specific Design Turkey Country Specific Design Scandinavia Fitting Position Front Axle Rim Size [inch] 15.0 Inch Rim Size [inch] 16.0 Inch | 2019-05 - 2021-08 | 85 | 116 | 1461 | Box Body/MPV |
| MERCEDES-BENZ CITAN Mixto (Double Cabin) (W415) Construction Year to 201301 Country Specific Design Russia Country Specific Design Romania Country Specific Design Turkey Country Specific Design Scandinavia Fitting Position Front Axle Rim Size [inch] 15.0 Inch Rim Size [inch] 16.0 Inch | 2012-11 - 2021-08 | 66 | 90 | 1461 | Box Body/MPV |
24.0126-0180.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Mercedes-Benz
- Trade Number
- 426180
- Country Of Origin
- Germany
- Additional Info
- with bolts/screws
- Height
- 45,0
- Outer Diameter [mm]
- 280,0
- Brake Disc Thickness [mm]
- 26,0
- Brake Disc Type
- Vented
- Processing
- Alloyed/High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 108,0
- Centering Diameter [mm]
- 61,0
- Inner Diameter [mm]
- 139,8
- Bore Diameter [mm]
- 15,8
- Minimum Thickness [mm]
- 23,8
Specific References
- EAN13
- 4006633405782
- MPN
- 2401260180102
ATE 24.0126-0180.1
(240126-01801)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 139,8
- Brake Disc Thickness [mm]: 26,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 426180
