ATE Original 2 Pieces Brake Disk (24012801401) for Mazda, Nissan
€134.31
(tax incl.)
€111.00 tax excl.
Part-number:
ATE 24.0128-0140.1
(240128-01401)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 144,0
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 428140
Logistical information:
- Ean Code: 4006633119214
- Weight: 15.38kg

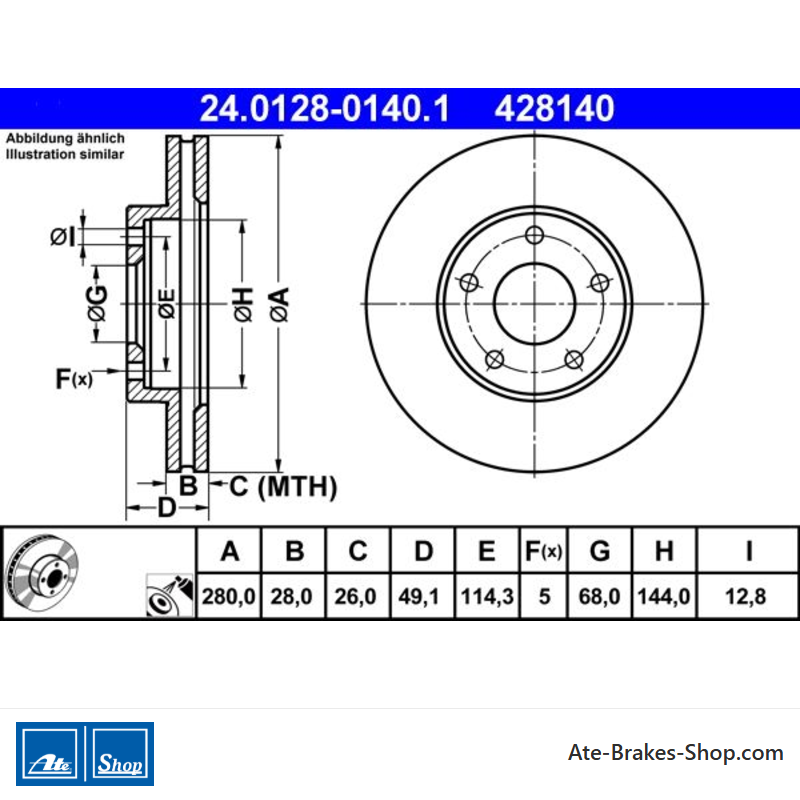

Specification of ATE 24.0128-0140.1 / 240128-01401 / 24012801401:
| OE Number | Reference info |
| NISSAN 40206-4U103 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 40206-4U107 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 40206-3Y502 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 40206-4U101 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 40206-3Y503 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 40206-4U105 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA B-SERIE (UF) Fitting Position Front Axle | 1996-02 - 1999-06 | 63 | 86 | 2499 | Pickup |
| NISSAN ALMERA TINO (V10) Construction Year to 200511 Fitting Position Front Axle | 2000-08 - 2006-02 | 84 | 114 | 1769 | MPV |
| NISSAN ALMERA TINO (V10) Construction Year to 200511 Fitting Position Front Axle | 2002-12 - 2006-02 | 85 | 116 | 1769 | MPV |
| NISSAN ALMERA TINO (V10) Fitting Position Front Axle | 2000-08 - 2003-01 | 100 | 136 | 1998 | MPV |
| NISSAN ALMERA TINO (V10) Construction Year to 200511 Fitting Position Front Axle | 2003-09 - 2006-02 | 82 | 112 | 2184 | MPV |
| NISSAN ALMERA TINO (V10) Construction Year to 200308 Fitting Position Front Axle | 2000-08 - 2006-02 | 84 | 115 | 2184 | MPV |
| NISSAN ALMERA TINO (V10) Construction Year to 200511 Fitting Position Front Axle | 2003-09 - 2006-02 | 100 | 136 | 2184 | MPV |
| NISSAN CEFIRO III Saloon (A33) Construction Year to 200308 Fitting Position Front Axle | 2000-01 - 2003-09 | 147 | 200 | 2988 | Saloon |
| NISSAN MAXIMA / MAXIMA QX V (A33) Fitting Position Front Axle | 2000-03 - 2003-11 | 103 | 140 | 1995 | Saloon |
| NISSAN MAXIMA / MAXIMA QX V (A33) Fitting Position Front Axle | 2000-03 - 2003-11 | 154 | 209 | 2496 | Saloon |
| NISSAN MAXIMA / MAXIMA QX V (A33) Fitting Position Front Axle | 2000-03 - 2003-11 | 147 | 200 | 2988 | Saloon |
| NISSAN PRIMERA (P12) Fitting Position Front Axle | 2002-03 - 2008-08 | 78 | 106 | 1597 | Saloon |
| NISSAN PRIMERA (P12) Construction Year from 200203 Fitting Position Front Axle | 2002-01 - 2006-04 | 80 | 109 | 1597 | Saloon |
| NISSAN PRIMERA (P12) Fitting Position Front Axle | 2002-03 - 2008-10 | 85 | 115 | 1769 | Saloon |
| NISSAN PRIMERA (P12) Fitting Position Front Axle | 2002-03 - | 85 | 115 | 1769 | Saloon |
| NISSAN PRIMERA (P12) Construction Year from 200304 Fitting Position Front Axle | 2002-08 - 2007-10 | 85 | 116 | 1870 | Saloon |
| NISSAN PRIMERA (P12) Fitting Position Front Axle | 2003-04 - 2007-10 | 88 | 120 | 1870 | Saloon |
| NISSAN PRIMERA (P12) Construction Year to 200304 Fitting Position Front Axle | 2002-03 - 2007-05 | 93 | 126 | 2184 | Saloon |
| NISSAN PRIMERA (P12) Fitting Position Front Axle | 2003-04 - 2006-04 | 102 | 139 | 2184 | Saloon |
| NISSAN PRIMERA (P12) Fitting Position Front Axle | 2002-03 - 2008-10 | 103 | 140 | 1998 | Saloon |
| NISSAN PRIMERA Hatchback (P12) Fitting Position Front Axle | 2002-07 - 2008-08 | 78 | 106 | 1597 | Hatchback |
| NISSAN PRIMERA Hatchback (P12) Fitting Position Front Axle | 2002-07 - 2006-04 | 80 | 109 | 1597 | Hatchback |
| NISSAN PRIMERA Hatchback (P12) Fitting Position Front Axle | 2002-07 - 2008-10 | 85 | 115 | 1769 | Hatchback |
| NISSAN PRIMERA Hatchback (P12) Fitting Position Front Axle | 2002-07 - 2008-10 | 103 | 140 | 1998 | Hatchback |
| NISSAN PRIMERA Hatchback (P12) Construction Year from 200304 Fitting Position Front Axle | 2002-08 - 2007-10 | 85 | 116 | 1870 | Hatchback |
| NISSAN PRIMERA Hatchback (P12) Fitting Position Front Axle | 2003-04 - 2007-10 | 88 | 120 | 1870 | Hatchback |
| NISSAN PRIMERA Hatchback (P12) Construction Year to 200304 Fitting Position Front Axle | 2002-07 - 2007-05 | 93 | 126 | 2184 | Hatchback |
| NISSAN PRIMERA Hatchback (P12) Construction Year to 200710 Fitting Position Front Axle | 2003-04 - | 102 | 139 | 2184 | Hatchback |
| NISSAN PRIMERA Traveller (WP12) Construction Year from 200203 Fitting Position Front Axle | 2002-01 - 2006-04 | 80 | 109 | 1597 | Estate |
| NISSAN PRIMERA Traveller (WP12) Fitting Position Front Axle | 2002-03 - 2007-05 | 85 | 115 | 1769 | Estate |
| NISSAN PRIMERA Traveller (WP12) Construction Year to 200810 Fitting Position Front Axle | 2002-03 - | 103 | 140 | 1998 | Estate |
| NISSAN PRIMERA Traveller (WP12) Construction Year from 200304 Fitting Position Front Axle | 2002-08 - 2007-10 | 85 | 116 | 1870 | Estate |
| NISSAN PRIMERA Traveller (WP12) Construction Year to 200710 Fitting Position Front Axle | 2003-04 - | 88 | 120 | 1870 | Estate |
| NISSAN PRIMERA Traveller (WP12) Fitting Position Front Axle | 2002-03 - 2003-04 | 93 | 126 | 2184 | Estate |
| NISSAN PRIMERA Traveller (WP12) Construction Year to 200710 Fitting Position Front Axle | 2003-04 - | 102 | 139 | 2184 | Estate |
| NISSAN X-TRAIL I (T30) Fitting Position Front Axle | 2001-07 - 2013-01 | 103 | 140 | 1998 | SUV |
| NISSAN X-TRAIL I (T30) Fitting Position Front Axle | 2001-07 - 2013-01 | 103 | 140 | 1998 | SUV |
| NISSAN X-TRAIL I (T30) Fitting Position Front Axle | 2001-09 - 2013-01 | 110 | 150 | 1998 | SUV |
| NISSAN X-TRAIL I (T30) Fitting Position Front Axle | 2002-09 - 2013-01 | 121 | 165 | 2488 | SUV |
| NISSAN X-TRAIL I (T30) Fitting Position Front Axle | 2002-11 - 2013-01 | 132 | 179 | 2488 | SUV |
| NISSAN X-TRAIL I (T30) Fitting Position Front Axle | 2001-06 - 2004-09 | 84 | 114 | 2184 | SUV |
| NISSAN X-TRAIL I (T30) Fitting Position Front Axle | 2004-10 - 2013-01 | 84 | 114 | 2184 | SUV |
| NISSAN X-TRAIL I (T30) Fitting Position Front Axle | 2001-07 - 2005-10 | 84 | 114 | 2184 | SUV |
| NISSAN X-TRAIL I (T30) Fitting Position Front Axle | 2003-12 - 2013-01 | 100 | 136 | 2184 | SUV |
| NISSAN X-TRAIL I (T30) Fitting Position Front Axle | 2001-06 - 2008-12 | 100 | 136 | 2184 | SUV |
24.0128-0140.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Mazda
Nissan - Trade Number
- 428140
- Country Of Origin
- EU
- Height
- 49,1
- Outer Diameter [mm]
- 280,0
- Brake Disc Thickness [mm]
- 28,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 68,0
- Inner Diameter [mm]
- 144,0
- Bore Diameter [mm]
- 12,8
- Minimum Thickness [mm]
- 26,0
Specific References
- EAN13
- 4006633119214
- MPN
- 2401280140102
ATE 24.0128-0140.1
(240128-01401)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 144,0
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 428140
