ATE Original 2 Pieces Brake Disk (24012802491) for Toyota
search
  • ATE Original 2 Pieces Brake Disk (24012802491) for Toyota
  • ATE Original 2 Pieces Brake Disk (24012802491) for Toyota
  • ATE Original 2 Pieces Brake Disk (24012802491) for Toyota

ATE Original 2 Pieces Brake Disk (24012802491) for Toyota

€101.64 (tax incl.)

€84.00 tax excl.

Part-number:

ATE 24.0128-0249.1
(240128-02491)

  • Outer Diameter [mm]: 258,0
  • Inner Diameter [mm]: 141,0
  • Brake Disc Thickness [mm]: 28,0
  • Number of Bolt Holes: 5
  • 2 Pieces of Brake Disc
  • Trade Number: 428249
Logistical information:
62,0Click here for detailed information.
  • Ean Code: 4006633349604
  • Weight: 12.11kg
Quantity

Specification of ATE 24.0128-0249.1 / 240128-02491 / 24012802491:

OE NumberReference info
TOYOTA 43512-0K010Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
TOYOTA 43512-0K030Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_)

Fitting Position Front Axle		2005-08 - 2006-1065882494Pickup
TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_)

Fitting Position Front Axle		2005-03 - 2015-05751022494Pickup
TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_)

Fitting Position Front Axle		2006-06 - 2015-05881202494Pickup
TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_)

Wheelbase for shortened wheelbase

for model code/type code KUN15

Fitting Position Front Axle		2010-01 - 2015-051061442494Pickup

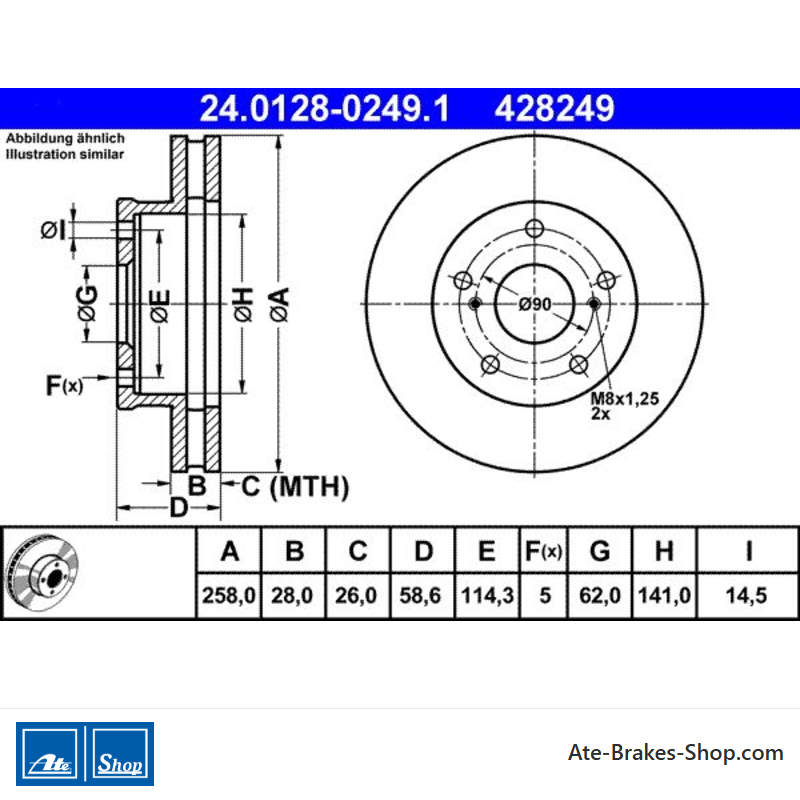

24.0128-0249.1

Data sheet

Article Status
Orderable
Car Brand
Toyota
Trade Number
428249
Country Of Origin
EU
Height
62,0
Outer Diameter [mm]
258,0
Brake Disc Thickness [mm]
28,0
Brake Disc Type
Vented
Surface
Coated
Number of Bolt Holes
5
Bolt Hole Diameter [mm]
114,3
Centering Diameter [mm]
62,0
Inner Diameter [mm]
141,0
Bore Diameter [mm]
14,5
Minimum Thickness [mm]
26,0

Specific References

EAN13
4006633349604
MPN
2401280249102
