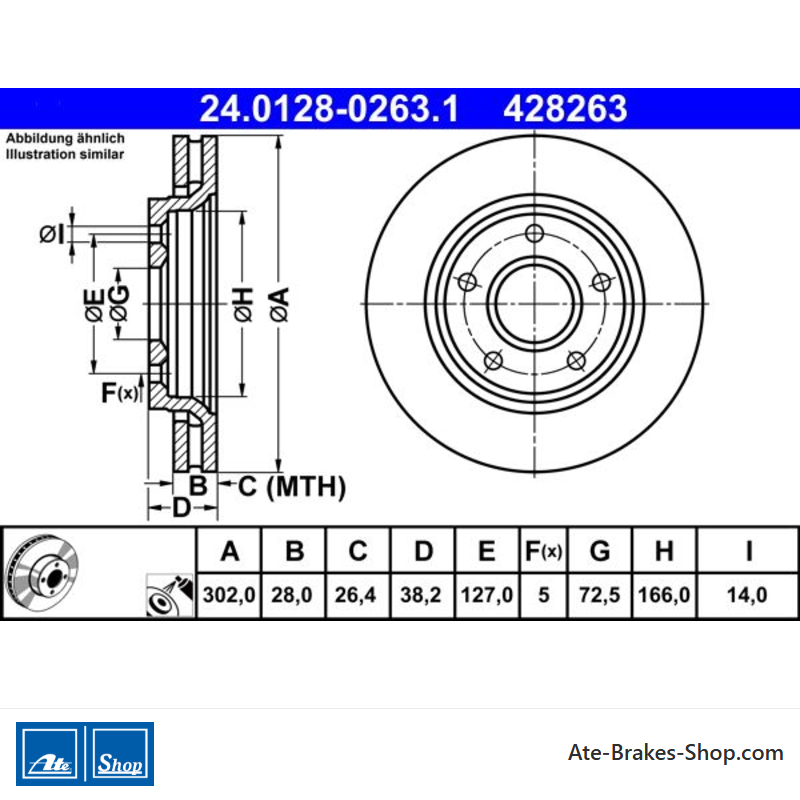

ATE Original Brake Disk (24012802631) for Chrysler, Fiat
€130.68
(tax incl.)
€108.00 tax excl.
Part-number:
ATE 24.0128-0263.1
(240128-02631)
- Outer Diameter [mm]: 302,0
- Inner Diameter [mm]: 166,0
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 5
- Trade Number: 428263
Logistical information:
- Ean Code: 4006633390422
- Weight: 8.64kg
Specification of ATE 24.0128-0263.1 / 240128-02631 / 24012802631:
| OE Number | Reference info |
| CHRYSLER 0 6803 2944AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 068032944AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 6803 2944AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 68032944AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 0 6803 2944AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 068032944AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 6803 2944AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CHRYSLER 68032944AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT K68032944AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHRYSLER GRAND VOYAGER V (RT) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2008-01 - | 125 | 170 | 3301 | MPV |
| CHRYSLER GRAND VOYAGER V (RT) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2007-10 - | 142 | 193 | 3778 | MPV |
| CHRYSLER GRAND VOYAGER V (RT) Braking/Driving Dynamics for vehicles with ABS Fitting Position Front Axle | 2007-10 - | 120 | 163 | 2777 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 125 | 170 | 2360 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2016-12 | 206 | 280 | 3604 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 206 | 280 | 3604 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 100 | 136 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 103 | 140 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 120 | 163 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 120 | 163 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 125 | 170 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Front Axle Equipment Code BRF | 2011-08 - 2015-12 | 125 | 170 | 1956 | MPV |
24.0128-0263.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Chrysler
Fiat - Trade Number
- 428263
- Country Of Origin
- Germany
- Height
- 38,2
- Outer Diameter [mm]
- 302,0
- Brake Disc Thickness [mm]
- 28,0
- Brake Disc Type
- Vented
- Processing
- High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 127,0
- Centering Diameter [mm]
- 72,5
- Inner Diameter [mm]
- 166,0
- Bore Diameter [mm]
- 14,0
- Minimum Thickness [mm]
- 26,4
Specific References
- EAN13
- 4006633390422
- MPN
- 2401280263102
ATE 24.0128-0263.1
(240128-02631)
- Outer Diameter [mm]: 302,0
- Inner Diameter [mm]: 166,0
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 5
- Trade Number: 428263
