ATE Original Brake Disk (24012802931) for Ford
€112.53
(tax incl.)
€93.00 tax excl.
Part-number:
ATE 24.0128-0293.1
(240128-02931)
- Outer Diameter [mm]: 300,0
- Inner Diameter [mm]: 136,0
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 5
- Trade Number: 428293
Logistical information:
- Ean Code: 4006633427166
- Weight: 9.24kg
Specification of ATE 24.0128-0293.1 / 240128-02931 / 24012802931:
| OE Number | Reference info |
| FORD 1543340 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 8C1V-1125-AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (FA_ _) Fitting Position Front Axle | 2006-04 - 2014-08 | 100 | 136 | 2261 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for dual tyres Fitting Position Front Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Front Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for dual tyres Fitting Position Front Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for dual tyres Fitting Position Front Axle | 2011-09 - 2014-12 | 92 | 125 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for dual tyres Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for dual tyres Fitting Position Front Axle | 2011-10 - 2014-08 | 114 | 155 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for dual tyres Fitting Position Front Axle | 2006-04 - 2014-08 | 74 | 100 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for dual tyres Fitting Position Front Axle | 2006-04 - 2014-08 | 85 | 115 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for dual tyres Fitting Position Front Axle | 2006-04 - 2014-08 | 103 | 140 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for dual tyres Fitting Position Front Axle | 2006-11 - 2014-08 | 103 | 140 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Tyres for dual tyres Fitting Position Front Axle | 2007-09 - 2014-08 | 147 | 200 | 3199 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Front Axle | 2006-04 - 2014-08 | 100 | 136 | 2261 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Front Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Front Axle | 2006-04 - 2014-08 | 107 | 145 | 2261 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Front Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Front Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Front Axle | 2011-10 - 2014-08 | 114 | 155 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Front Axle | 2006-04 - 2014-08 | 74 | 100 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Front Axle | 2006-04 - 2014-08 | 85 | 115 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Front Axle | 2006-04 - 2014-08 | 103 | 140 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Front Axle | 2006-11 - 2014-08 | 103 | 140 | 2402 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Tyres for dual tyres Fitting Position Front Axle | 2007-09 - 2014-08 | 147 | 200 | 3199 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Tyres for dual tyres Fitting Position Front Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Tyres for dual tyres Fitting Position Front Axle | 2011-09 - 2014-12 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Tyres for dual tyres Fitting Position Front Axle | 2011-09 - 2014-08 | 100 | 135 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Tyres for dual tyres Fitting Position Front Axle | 2011-10 - 2014-08 | 114 | 155 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Tyres for dual tyres Fitting Position Front Axle | 2006-04 - 2014-08 | 74 | 100 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Tyres for dual tyres Fitting Position Front Axle | 2006-04 - 2014-08 | 85 | 115 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Tyres for dual tyres Fitting Position Front Axle | 2006-04 - 2014-08 | 103 | 140 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Tyres for dual tyres Fitting Position Front Axle | 2006-11 - 2014-08 | 103 | 140 | 2402 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Tyres for dual tyres Fitting Position Front Axle | 2008-02 - 2014-08 | 147 | 200 | 3199 | Bus |

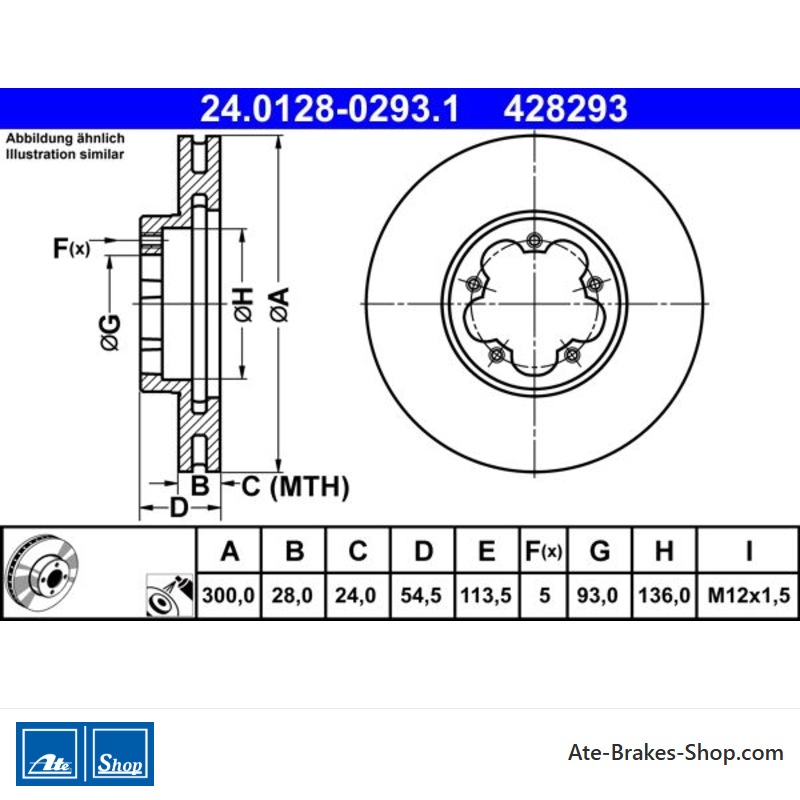

24.0128-0293.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Ford
- Trade Number
- 428293
- Country Of Origin
- Italy
- Height
- 54,5
- Outer Diameter [mm]
- 300,0
- Brake Disc Thickness [mm]
- 28,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 113,5
- Centering Diameter [mm]
- 93,0
- Inner Diameter [mm]
- 136,0
- Thread Size
- M12x1,5
- Minimum Thickness [mm]
- 24,0
Specific References
- EAN13
- 4006633427166
- MPN
- 2401280293102
ATE 24.0128-0293.1
(240128-02931)
- Outer Diameter [mm]: 300,0
- Inner Diameter [mm]: 136,0
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 5
- Trade Number: 428293
