2 pieces of ATE original Brake Disk (24012803011) for Lancia
€174.24
(tax incl.)
€144.00 tax excl.
Part-number:
ATE 24.0128-0301.1
(240128-03011)
- Outer Diameter [mm]: 330,0
- Inner Diameter [mm]: 127,0
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 428301
Logistical information:
- Ean Code: 4006633460699
- Weight: 10.26kg
Specification of ATE 24.0128-0301.1 / 240128-03011 / 24012803011:
| OE Number | Reference info |
| FIAT 51827474 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| LANCIA DELTA III (844_) Fitting Position Front Axle | 2009-01 - 2014-08 | 147 | 200 | 1742 | Hatchback |

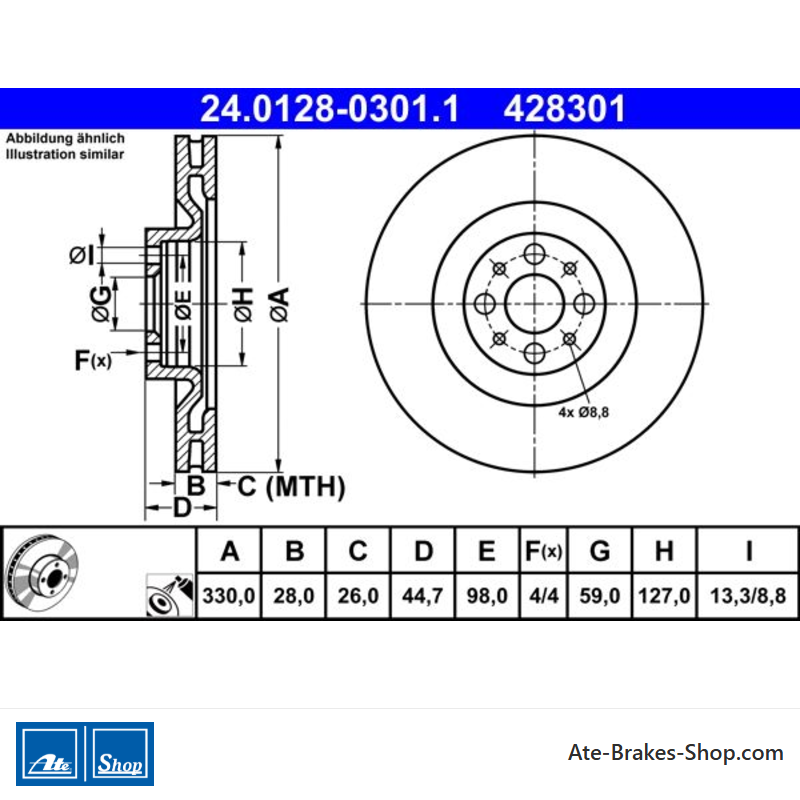

24.0128-0301.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Lancia
- Trade Number
- 428301
- Country Of Origin
- QU
- Height
- 44,7
- Outer Diameter [mm]
- 330,0
- Brake Disc Thickness [mm]
- 28,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 98,0
- Centering Diameter [mm]
- 59,0
- Inner Diameter [mm]
- 127,0
- Bore Diameter [mm]
- 13,3
- Minimum Thickness [mm]
- 26,0
Specific References
- EAN13
- 4006633460699
- MPN
- 2401280301102
ATE 24.0128-0301.1
(240128-03011)
- Outer Diameter [mm]: 330,0
- Inner Diameter [mm]: 127,0
- Brake Disc Thickness [mm]: 28,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 428301
